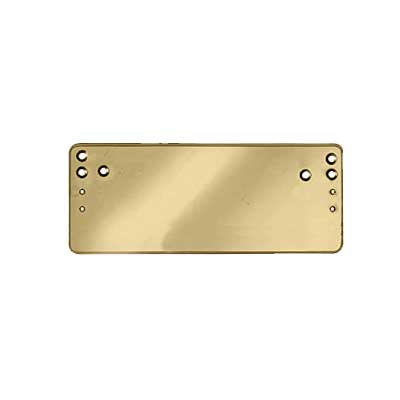

SARGENT door closer drop plates and mounting plates help solve installation challenges when a door or frame does not provide enough mounting space for a standard closer installation. Narrow top rails, glass panels near the top of the door, limited frame clearance, and existing mounting holes can all complicate the installation of a commercial door closer.
Designed for compatible SARGENT surface-mounted door closers, drop plates and mounting accessories provide an alternative mounting surface or reposition the closer to accommodate specific door and frame conditions. They are useful for new construction, closer replacements, and retrofit projects in commercial and institutional buildings.
Shop SARGENT door closer drop plates and mounting plates at Commercial Door Hardware. Verify compatibility with your closer model and mounting configuration before ordering. In-stock products ship the same day.
Why SARGENT Door Closer Drop Plates Are Important
Commercial door closers are designed around specific mounting templates. These templates require adequate space on the door or frame to accommodate the closer body, mounting holes, and arm geometry. However, many commercial openings have architectural features that limit the available mounting surface.
Aluminum storefront doors may have narrow top rails, while doors with glass lights may not provide enough solid material for the standard mounting pattern. Low ceilings, projecting frame stops, and existing holes from previous installations can create additional challenges.
A compatible SARGENT drop plate or mounting plate can provide the additional mounting surface or positioning needed for certain installations. This helps the installer accommodate the closer without compromising the intended mounting arrangement.
Using the correct plate also helps maintain the closer's designed arm geometry, reducing the risk of interference or improper operation caused by an unsuitable mounting position.
When Do You Need a SARGENT Drop Plate?
A drop plate or mounting plate may be necessary when the existing door or frame cannot accommodate the closer's standard mounting template.
-
Narrow top rails: Provides an alternative mounting arrangement when the available rail is too narrow for the standard pattern.
-
Glass panels near the top of the door: Helps accommodate mounting limitations where sufficient solid material is unavailable.
-
Limited frame clearance: Addresses certain installations where the frame or surrounding architecture restricts the standard mounting position.
-
Closer replacement projects: Helps resolve selected mounting-pattern differences when replacing an existing closer.
-
Parallel arm installations: Supports compatible mounting configurations when the standard mounting arrangement cannot be used.
-
Existing door preparation: Can help accommodate certain retrofit conditions, depending on the plate and closer combination.
The appropriate plate depends on the closer model, door construction, mounting position, and installation dimensions. Not every plate supports every condition.
SARGENT Drop Plates and Mounting Plate Compatibility
SARGENT offers commercial door closers in multiple series and configurations. When selecting a drop plate, identify the closer model and determine the mounting condition that needs to be addressed.
Compatible mounting accessories may be available for selected SARGENT closer families, including the 351, 281, 1431 Powerglide, and other models. Availability and compatibility vary by series and mounting application.
Before ordering, confirm:
-
The exact SARGENT closer model and series.
-
Whether the installation requires a drop plate, mounting plate, or another accessory.
-
The intended mounting position, including regular arm, parallel arm, or top-jamb configuration.
-
The door's top-rail dimensions and the available mounting surface.
-
The required finish and any additional mounting hardware.
Do not assume that a plate compatible with one SARGENT series will fit another. Consult the manufacturer's installation template and parts documentation to confirm the correct part number.
SARGENT Drop Plates for Commercial Door Installations
SARGENT mounting accessories are used in commercial applications where the door or frame requires a specific mounting arrangement.
Narrow Top-Rail Applications
Narrow top rails are common on aluminum storefront doors and other architectural openings. If the standard closer mounting pattern extends beyond the available solid mounting surface, a compatible plate may provide an alternative arrangement.
Before installation, confirm that the selected plate and fasteners are appropriate for the door construction and that the mounting locations avoid glazing and other unsuitable materials.
Top-Jamb Mounting Conditions
Top-jamb installations mount the closer body on the frame above the door. Frame dimensions, stops, soffits, and ceiling clearance can limit the available mounting space.
A compatible mounting accessory may help address certain frame conditions, but the correct solution depends on the specific SARGENT closer and the manufacturer's mounting instructions.
Parallel Arm Mounting
Parallel arm installations position the closer arm close to the push side of the door. Certain applications require additional mounting hardware to achieve the intended configuration.
Select a SARGENT plate specifically approved for the closer series and parallel arm arrangement. Confirm the required arm, bracket, and fasteners before installation.
Replacement and Retrofit Projects
When replacing an existing closer, the new unit may have different mounting dimensions from the original hardware. A compatible mounting plate may help accommodate some differences while minimizing unnecessary changes to the door or frame.
Inspect existing holes, verify the new mounting template, and confirm that the selected plate is approved for the intended installation.
Available Finishes
SARGENT drop plates and mounting plates may be offered in different finishes depending on the specific product. Common commercial hardware finish options include aluminum, dark bronze, black, and selected powder-coated finishes.
When selecting a plate, match its finish to the closer body and surrounding hardware. Check the individual product listing for the exact finish codes and availability rather than assuming every finish is offered across all plate models.
Because mounting plates are generally visible after installation, finish coordination can make a significant difference to the appearance of the completed opening.
Benefits of SARGENT Drop Plates and Mounting Plates
-
Help accommodate selected narrow top-rail and frame-mounting conditions.
-
Provide an alternative mounting arrangement for compatible closer installations.
-
Support certain parallel arm and top-jamb configurations.
-
Help resolve selected mounting-pattern differences during closer replacement.
-
Reduce the need for unnecessary modifications to existing doors and frames.
-
Support proper closer positioning when installed according to manufacturer specifications.
-
Allow the installer to coordinate the plate finish with the closer body.
-
Help prevent delays by identifying required mounting accessories before installation.
Applications
SARGENT door closer drop plates and mounting plates may be used in compatible installations across:
-
Aluminum storefront doors with narrow top rails.
-
Commercial office buildings and corridor doors.
-
Schools, universities, and institutional facilities.
-
Healthcare facilities and public buildings.
-
Retrofit and closer replacement projects.
-
Doors with architectural features that limit standard mounting locations.
-
Openings requiring compatible parallel arm or top-jamb mounting accessories.
Always verify the selected plate against the door, frame, closer model, and applicable installation requirements.
Why Order SARGENT Drop Plates from Commercial Door Hardware?
Commercial Door Hardware supplies commercial door hardware and installation accessories for schools, healthcare facilities, offices, retail properties, and institutional buildings. Our product range includes door closers, mounting plates, arms, tracks, covers, locks, exit devices, hinges, and related hardware from leading commercial manufacturers.
A missing mounting plate can delay an otherwise straightforward closer installation. Checking the door dimensions and closer mounting template before ordering helps identify the accessories needed to complete the job and reduces the likelihood of additional site visits.
Shop SARGENT door closer drop plates and mounting plates at Commercialdoorhardware.com for commercial installation, replacement, and retrofit projects. If you're unsure which plate fits your closer, provide the model number stamped on the closer body and details about the mounting condition so the appropriate accessory can be identified.
In-stock products ship the same day. Confirm current inventory, compatible models, and finish availability before placing your order.
