A removable mullion turns a pair of doors into two independent single doors, each with its own rim exit device, and steps out of the way when you need the full opening. Shop Sargent 980 Series mullions in aluminum and steel, including keyed removable, fire-rated, hurricane-rated, hurricane rated and electrified versions for 80, 90, PE80, 20, and 30 Series exit devices, from Commercial Door Hardware.
What a Mullion Does on a Pair of Doors
A pair of doors without a center post has nothing for a rim exit device to latch into. One option is vertical rod devices, which latch at the top and bottom instead. The other is a mullion: a vertical post between the two leaves that gives each door its own strike.
With a mullion in place, each leaf works as an independent single door with a simple rim exit device. That's easier to install, easier to maintain, and more secure than vertical rods, with no bottom latch to drag or collect debris. When the full width is needed for equipment, furniture, or crowds, a removable mullion comes out of the frame and goes back in afterward.
Types of Sargent Mullions
|
Model |
Type |
Construction |
Fire rated |
|---|---|---|---|
|
980 |
Removable |
Extruded aluminum |
No |
|
L980 |
Keyed removable (lockable) |
Extruded aluminum |
No |
|
980S |
Removable |
Steel, 2" x 3" |
No |
|

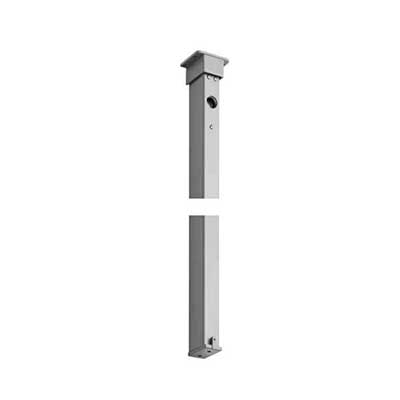

L980S |
Keyed removable (lockable) |
Steel |
No |
|
12-980 |
Removable |
Steel, 2" x 3", malleable iron retainers |
Yes |
|
12-L980 |
Keyed removable (lockable) |
Steel |
Yes |
|
12-HC980 |
Removable, hurricane rated |
Steel |
Yes |
|
EL980 |
Electrified |
Steel, quick connect wiring |
See listing |
|
SM980S |
Split mullion, removable, panic rated |
Steel, 96" |
See listing |
Removable vs. Keyed Removable
|
Feature |
Removable |
Keyed removable |
|---|---|---|
|
How it's removed |
Released from top and bottom retainers |
Unlocked at the head with a key, no tools |
|
Security |
Removal requires access to the retainers |
Only keyholders can remove it |
|
Best for |
Fixed operations with occasional removal |
Frequent removal by staff, such as deliveries |
Keyed removable mullions use a cylinder, typically 1-1/8", which is ordered separately so it can be keyed to the building system.
Specifications
|
Specification |
Detail |
|---|---|
|
Standard height |
86" |
|
Optional heights |
Up to 120" on steel models |
|
Steel profile |
2" x 3" rectangular |
|
Retainers |
Malleable iron top and bottom retainers on 12-980 |
|
Fire rating |
12-980 suited to 3-hour rated pairs; check the listing for each model |
|
Compatible series |
Sargent 80, 90, PE80, 20 and 30 Series exit devices |
|
Finish |
Gray prime coat for field painting |
Popular Sargent Mullions
|
Model |
Description |
|---|---|
|
Sargent 980S |
Steel removable mullion, 86", gray prime coat |
|
Sargent 12-980 |
Fire-rated steel removable mullion, 86" |
|
Sargent L980 |
Keyed removable aluminum mullion, less cylinder |
|
Sargent L980S |
Keyed removable steel mullion, 86", less cylinder |
|
Sargent 12-L980 |
Fire-rated keyed removable steel mullion, less cylinder |
|
Sargent 12-HC980 |
Fire- and hurricane-rated removable steel mullion |
|
Sargent EL980 |
Electrified mullion for electric strikes and monitoring |
Finishes
Sargent steel mullions are typically supplied in gray prime coat, ready to be painted to match the frame. That lets the mullion disappear into the frame rather than stand out as a separate piece of hardware. Check the product page for the finishes offered on each model.
Benefits of Sargent Mullions
-
Two independent single doors from a pair.
-
Simpler rim exit devices instead of vertical rods.
-
Full opening when the mullion is removed.
-
Keyed removal for controlled access.
-
Fire-rated and hurricane-rated steel options.
-
Electrified version for electric strikes and monitoring.
-
Steel construction for high-abuse locations.
Applications
-
Cross-corridor pairs in schools and hospitals.
-
Gymnasiums and auditoriums needing full-width openings for equipment.
-
Storefronts and school entrances.
-
Loading and receiving pairs.
-
Fire-rated paired openings using 12-980 or 12-L980.
-
Coastal buildings using hurricane-rated mullions.
Why Order Sargent Mullions from Commercial Door Hardware
Commercial Door Hardware supplies door hardware for schools, healthcare facilities, offices, retail, hospitality and institutional buildings across the country, carrying exit devices, exit trim, locks, cylinders, closers, hinges, thresholds, weatherstripping and the parts that go with them from Sargent, Von Duprin, Corbin Russwin, Accentra, Schlage, LCN, Norton and Pemko.
Mullions, devices, and strikes have to work together. We stock Sargent 980 mullions alongside the 8800 rim devices, strikes, and cylinders that go with them.
Every item in this collection is in stock at Commercialdoorhardware.com and ships the same day, because a failed exit opening is a life safety and security problem rather than a maintenance item.
