The Sargent 80 Series keypad exit devices pair the heavy-duty 80 Series wide stile push pad with a standalone keypad ET trim. Choose the KP8877 or KP8878 rim device, or the KP8977 or KP8978 mortise device, with or without cylinder override, in B, J, L, and P lever designs. Battery-powered, Grade 1 and programmed at the door, from Commercial Door Hardware.
Built on the 80 Series
The Sargent 80 Series is one of the most widely specified exit device platforms in commercial construction. The keypad models keep everything that makes it dependable, including the heavy-duty wide-stile push pad and Grade 1 construction, and replace the standard outside trim with a keypad ET control.
The result looks and operates like any 80 Series exit device from inside. From outside, users enter a code instead of a key, and the lever unlocks for the programmed time.
Model Guide
|
Model |
Device |
Cylinder override |
ET control |
Override cylinder |
|---|---|---|---|---|
|

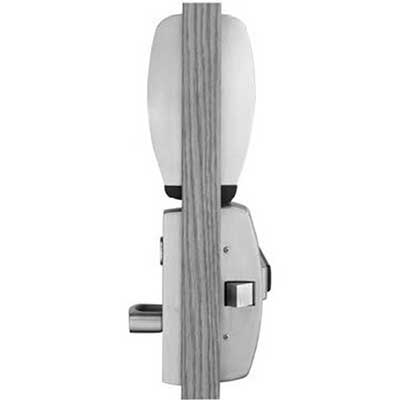

KP8877 |
Rim |
Yes |
777-8 ET |
34 rim, 60 LFIC or 70 SFIC |
|
KP8878 |
Rim |
No |
778-8 ET |
None |
|
KP8977 |
Mortise |
Yes |
777 ET |
46 mortise |
|
KP8978 |
Mortise |
No |
778 ET |
None |
The last two digits of the model are the key distinction: 77 includes cylinder override, 78 does not. Interchangeable core options on the KP8877 make it straightforward to fit into a building already using large or small format IC cores.
Reading a Model Number
Sargent keypad exit device part numbers describe the full configuration. Take KP8877-F-ETL-US32D-RHR-LC as an example:
|
Segment |
Meaning |
|---|---|
|
KP |
Keypad standalone access control |
|
88 |
8800 Series rim exit device (89 = mortise) |
|
77 |
Function with cylinder override (78 = no override) |
|
F |
Device length: F for 33" to 36" doors, G for 43" to 48" |
|
ETL |
ET trim with L lever |
|
US32D |
Satin stainless steel finish |
|
RHR |
Right hand reverse handing |
|
LC |
Less cylinder; cylinder ordered separately |
Lever Designs
|
Lever |
Design |
Character |
|---|---|---|
|
B |
Curved, no return |
Soft, classic profile |
|
J |
Tubular, return |
Round, contemporary, returns toward the door |
|
L |
Contour, angled return |
Contoured profile with an angled return toward the door |
|
P |
Curved, return |
Curved profile with a return toward the door |
Return levers curve back toward the door, which reduces the chance of catching clothing or bags, a common preference in healthcare and schools. Match the lever to the locksets elsewhere in the building for a consistent look.
Specifications
|
Specification |
Detail |
|---|---|
|
Standard |
ANSI/BHMA A156.3 Grade 1 |
|
Listings |
UL 305 panic hardware; ADA compliant; Florida Building Code approved and windstorm listed versions |
|
Latchbolt |
3/4" (19mm) projection |
|
Door thickness |
1-3/4" |
|
Power |
4 C alkaline batteries, typically 40,000 operations per set |
|
Codes |
100 user codes of 1 to 6 digits, plus master, supervisory, emergency and one-time codes |
|
Memory |
Non-volatile; programming retained without power |
|
Keypad |
UV-stable textured material, operating range 4°F to 140°F |
|
Indicators |
Green LED unlocked, yellow LED programming mode |
|
Fire rated |
12-KP versions for rated openings |
Popular 80 Series Keypad Models
|
Model |
Configuration |
|---|---|
|
Sargent KP8877-F-ETL-US32D-RHR-LC |
Rim, 36", L lever, override, right hand reverse |
|
Sargent KP8877-F-ETL-US32D-LHR-LC |
Rim, 36", L lever, override, left hand reverse |
|
Sargent KP8877-F-ETJ-US32D-LHR-LC |
Rim, 36", J lever, override |
|
Sargent KP8877-F-ETB-US32D-RHR-LC |
Rim, 36", B lever, override |
|
Sargent KP8877-F-ETP-US32D-RHR-LC |
Rim, 36", P lever, override |
|
Sargent KP8877-G-ETL-US32D-RHR-LC |
Rim, 48", L lever, override |
Available Finishes
|
Code |
Finish |
Where it fits |
|---|---|---|
|
630 / US32D |
Satin stainless steel |
The most widely stocked keypad exit device finish |
|
613E / US10BE |
Dark oxidized bronze |
Bronze entrances and darker hardware schedules |
Check each model's product page for the full finish list. Match the device finish to the cylinder and to nearby hardware such as closers and pulls.
Finish codes follow the BHMA system, with the older US designation shown alongside. The two codes describe the same finish, so 630 and US32D are interchangeable on a hardware schedule.
Benefits of the 80 Series Keypad
-
Proven 80 Series hardware with a keypad built in.
-
Rim and mortise options for any door prep.
-
Four lever designs to match the building's locksets.
-
IC core compatibility on the KP8877.
-
Standalone, with no wiring or software.
-
Grade 1, UL 305 and ADA for demanding public openings.
-
Fire-rated versions for rated openings.
Applications
-
Stairwells and tenant floors needing standalone access control.
-
Staff entrances on retail, offices, and restaurants.
-
Schools and universities, including athletic and support buildings.
-
Healthcare staff corridors.
-
Coastal and windstorm regions using windstorm-listed versions.
