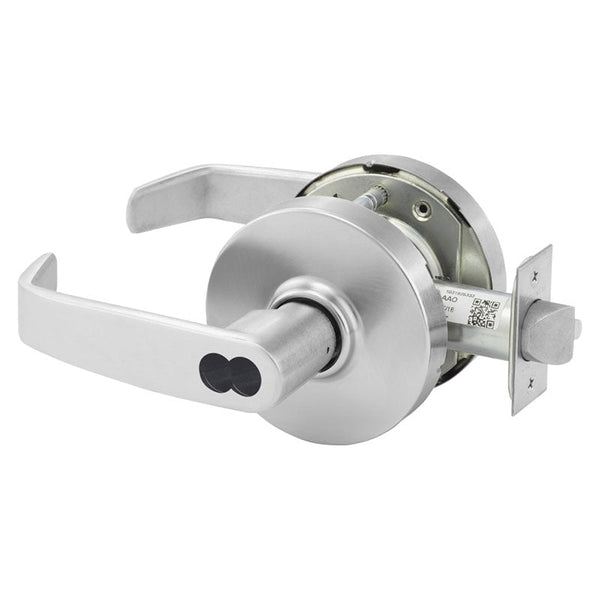

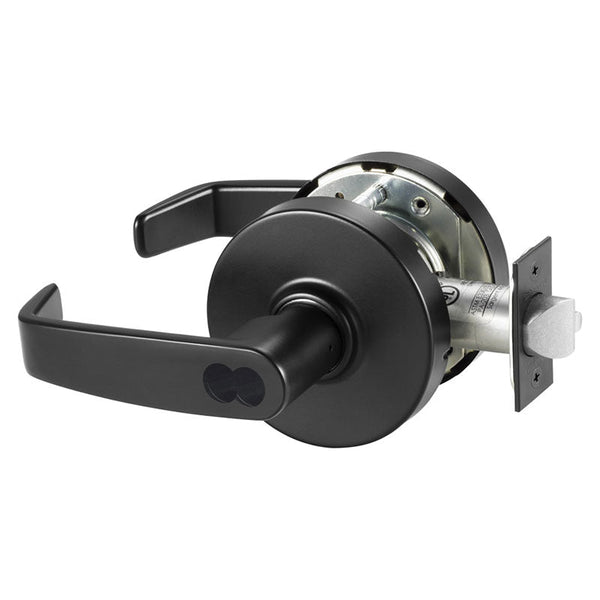

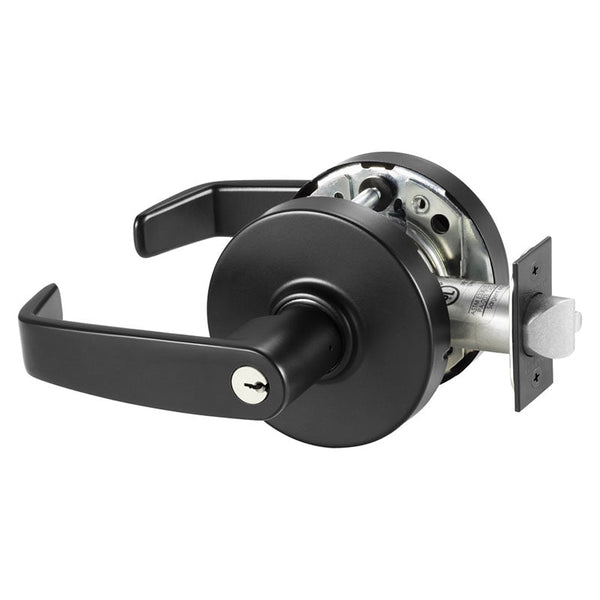

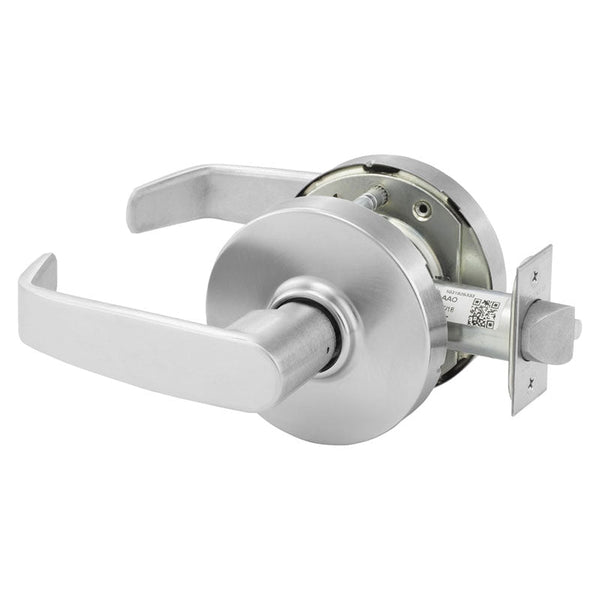

The Sargent 10X Line is a cylindrical lever lock platform covering commercial functions with conventional and interchangeable core keying. Shop the 10X Line in passage, privacy, office, entrance, classroom and storeroom functions, with keypad versions available for credential-free access. In stock at Commercial Door Hardware and shipping the same day.
Reading a Sargent Cylindrical Part Number
Sargent cylindrical part numbers stack the line, function, trim and finish into one string. Knowing the pattern makes a hardware schedule readable at a glance.
|
Element |
What it indicates |
|---|---|
|
Line designation |
Which lock platform, such as 10X, 10, 11, 7 or 6 |
|
Function number |
What the lock does: passage, privacy, office, classroom, storeroom |
|
Lever or trim designation |
Which lever design and rose or escutcheon |
|
Keying suffix |
Conventional, less cylinder, SFIC or LFIC prep |
|
Finish code |
BHMA finish, such as 626 or 613 |
Confirm the specific designations against Sargent's documentation for your configuration, since the function numbers and trim codes carry exact meanings that determine how the lock behaves at the opening.
Function Guide
|
Function |
Outside |
Inside |
Typical opening |
|---|---|---|---|
|
Passage |
Always operates the latch |
Always free |
Corridors and closets |
|
Privacy |
No key; emergency release |
Locks by button or turn |
Restrooms and exam rooms |
|
Office |
Locked and unlocked by key or button |
Always free |
Offices and suites |
|
Entrance |
Locked and unlocked by key |
Always free |
Suite entrances |
|
Classroom |
Key locks and unlocks outside lever |
Always free |
Classrooms and labs |
|
Storeroom |
Always locked; key retracts latch |
Always free |
Storerooms and mechanical rooms |
|
Service station |
Button or turn controls outside lever |
Always free |
Reception and service counters |
Free egress from inside applies on every function, which is a code requirement rather than a feature.
Keypad Versions
The 10X platform is also available with an integrated keypad, which replaces keys with codes on openings where the access list changes regularly.
The practical advantage is revocation. Removing someone's access means deleting a code, which takes seconds. On a keyed opening the equivalent is rekeying, which means a locksmith, new cores and new keys issued to everyone who legitimately needs access.
Most keypad configurations retain a key override through a cylinder, so the opening stays inside the building's key system rather than becoming an exception to it.
Keypad versions are available in our Sargent Keypad 10X Line Cylindrical Locks collection.
Keying Options
|
Option |
Supplied |
Best for |
|---|---|---|
|
Conventional cylinder |
Cylinder and keys |
Standalone openings and conventional systems |
|
Less cylinder |
Prepped, no cylinder |
Buildings fitting their own |
|
SFIC less core |
Small format core prep |
Buildings on SFIC systems |
|
LFIC less core |
Large format core prep |
Buildings on LFIC systems |
|
Non-keyed |
No cylinder |
Passage and privacy functions |
Cylinders, cores and key blanks are available in our Cylinders and Cores and Key Blanks collections.
Available Finishes
|
Code |
Finish |
Notes |
|---|---|---|
|
626 / US26D |
Satin chrome |
The most widely stocked and usual default |
|
605 / US3 |
Bright brass |
Brass hardware schedules |
|
606 / US4 |
Satin brass |
Satin brass schedules |
|
612 / US10 |
Satin bronze |
Bronze schedules |
|
613 / US10B |
Oil rubbed bronze |
Darker bronze schedules |
|
613E |
Dark oxidized bronze |
A darker bronze variant |
|
619 / US15 |
Satin nickel |
Nickel schedules |
|
625 / US26 |
Bright chrome |
Polished chrome schedules |
|
630 / US32D |
Satin stainless steel |
Healthcare and frequently cleaned areas |
|
BSP |
Black suede powder coat |
Contemporary and dark schedules |
-
626 satin chrome carries the deepest stock and is the default where no finish is specified.
-
Confirm availability for your function, lever and keying prep, since finish ranges narrow on specialized configurations including keypad versions.
-
630 satin stainless suits healthcare and environments cleaned with strong agents.
-
Match the lock to the hinges, closer and exit hardware on the opening.
Benefits of the 10X Line
-
Full commercial function range from passage to service station.
-
Keypad versions available on the same platform.
-
Keying flexibility across conventional, SFIC and LFIC systems.
-
Standard cylindrical prep for fast installation and replacement.
-
Lever operation suited to accessible openings.
-
One platform covering mechanical and keypad openings in the same building.
-
Wide finish range including stainless and powder coat.
-
Ready to ship. In-stock locks ship the same day.
Applications
-
Offices and suites using office and entrance functions.
-
Classrooms and training rooms using classroom functions.
-
Restrooms using privacy functions.
-
Corridors and closets using passage functions.
-
Storerooms and mechanical rooms using storeroom functions.
-
IT and supply rooms using keypad versions where access lists change.
-
Reception and service counters using service station functions.
-
Buildings mixing keyed and coded openings on one platform.
