Some buildings shouldn't look like they've had modern panic hardware bolted on. The Sargent 90 Series uses a classic crossbar in solid brass, bronze, or stainless steel tubing, so courthouses, libraries, historic buildings, and full glass entrances get Grade 1, UL-listed panic hardware that suits the architecture. Shop 9800 rim, 9900 mortise, and 9700 surface vertical rod devices in architectural finishes from Commercial Door Hardware.
A Crossbar for Buildings Where Appearance Matters
Most modern exit devices use a wide push pad. It works, but on a restored courthouse door, a bronze library entrance or an all-glass lobby, it can look out of place. The 90 Series uses a slim crossbar instead: a tubular bar across the door that you push to exit, the same form panic hardware took for generations.
The difference is what's underneath. Every 90 Series device is ANSI/BHMA A156.3 Grade 1 and UL listed, with stainless steel springs throughout and through-bolted trim, so the period look comes with modern performance.
90 Series Configurations
|
Series |
Device type |
Key points |
|---|---|---|
|

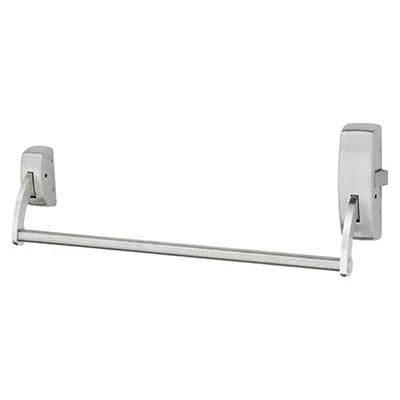

9800 |
Rim exit device |
Reversible; 4-1/8" minimum stile; 649 strike standard |
|
9900 |
Mortise lock exit device |
Uses a 900 Series mortise lock; handed; oval crossbar |
|
9700 |
Surface vertical rod exit device |
For pairs without a mullion; 1/2" brass, bronze or stainless rods |
|
12- prefix |
Fire exit hardware |
Fire-rated versions of 9800, 9900 and 9700 |
Specifications
|
Specification |
Detail |
|---|---|
|
Standard |
ANSI/BHMA A156.3 Grade 1; ADA compliant |
|
Listings |
UL panic and fire listed; fire exit hardware for hollow metal doors listed up to 3 hours |
|
Crossbar |
1" brass, bronze or stainless steel tubing (9900 uses 13/16" x 1-3/8" oval tubing) |
|
Chassis cover |
Brass, bronze or stainless steel |
|
Door |
Wood or metal; 1-3/4" standard, 2-1/4" on order |
|
Dogging |
Allen key dogging standard; not available on fire rated devices |
|
Mounting |
Wood and machine screws; through-bolts available |
|
Ordering |
Ordered with trim and shipped complete with strike, screws and cylinder, crossbar cut to door width |
Ordered complete and cut to size is one of the most practical features of the 90 Series. The device arrives in one carton with the crossbar already cut to the door width, so there's no field cutting of brass or bronze tubing.
Trim and Levers
-
ET lever trim with Sargent standard, Studio Collection and Coastal Series levers.
-
Pull trims and thumbpiece trims for traditional entrances, such as the 862 pull.
-
Master keying: all Sargent exit devices can be master keyed or grand master keyed with any other Sargent product, including Signature, Degree, KESO and XC key systems.
Popular Sargent 90 Series Models
|
Model |
Description |
|---|---|
|
Sargent 9810 |
Rim crossbar device, exit only |
|
Sargent 9804 |
Rim crossbar device, night latch |
|
Sargent 9813 |
Rim crossbar device, classroom |
|
Sargent 9913 |
Mortise crossbar device, classroom |
|
Sargent 9710 |
Surface vertical rod crossbar device, exit only |
|
Sargent 12-9810 |
Fire-rated rim crossbar device |
Available Finishes
The 90 Series is built for buildings where finish carries as much weight as function, and its brass, bronze and stainless construction is what makes the richer finishes possible.
|
Code |
Finish |
Where it fits |
|---|---|---|
|
605 / US3 |
Bright brass |
Restored and traditional entrances |
|
606 / US4 |
Satin brass |
Softer brass hardware schedules |
|
611 / US9 |
Bright bronze |
Polished bronze entrances |
|
612 / US10 |
Satin bronze |
Courthouses, libraries and historic bronze doors |
|

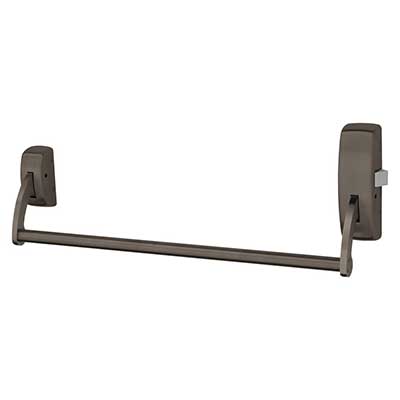

613 / US10B |
Oil rubbed bronze |
Darker traditional schedules |
|
613E / US10BE |
Dark oxidized bronze |
Deep bronze entrances |
|
629 / US32 |
Bright stainless steel |
Polished modern glass entrances |
|
630 / US32D |
Satin stainless steel |
Durable everyday finish |
-
Exit devices aren't offered in 14, 15, 26 or 26D. Where those are specified, the device is supplied in 32 or 32D and the trim in 26 or 26D. For nickel trim, specify 14/32 or 15/32D.
-
Clear powder coat (CPC-) is available on 32 and 32D finishes.
-
Confirm finish availability for each model on the product page.
Benefits of the 90 Series
-
Classic crossbar design suited to historic and architectural entrances.
-
Solid brass, bronze or stainless construction.
-
Grade 1 and UL panic and fire listed.
-
Shipped complete with the crossbar cut to size.
-
Studio and Coastal levers for design coordination.
-
Master keyed with the building's Sargent key system.
Applications
-
Courthouses and government buildings.
-
Historic preservation and restoration projects.
-
Libraries, museums and churches.
-
Full glass and architectural entrances.
-
Hotels and hospitality lobbies.
Why Order the Sargent 90 Series from Commercial Door Hardware
Commercial Door Hardware supplies door hardware for schools, healthcare facilities, offices, retail, hospitality, and institutional buildings across the country, carrying exit devices, exit trim, locks, cylinders, closers, hinges, thresholds, weatherstripping, and the parts that go with them from Sargent, Von Duprin, Corbin Russwin, Accentra, Schlage, LCN, Norton, and Pemko.
We help match 90 Series devices, trim, and finishes to the rest of the building's hardware, including closers and hinges in coordinating finishes.
Every item in this collection is in stock at Commercialdoorhardware.com and ships the same day because a failed exit opening is a life-safety and security problem, not a maintenance item.
