You don't need a new panic bar to stop unauthorized exits. Sargent 545 alarm retrofit kits add a self-contained alarm to existing 80 Series exit devices, with a 103 dB horn, flashing red violation LED, low battery alert, and automatic re-arming option. Shop kits for wide and narrow rails in E, F, and G sizes, in stock at Commercial Door Hardware and shipping the same day.
What an Exit Device Alarm Kit Does
Emergency exits have to open for anyone, which also makes them the easiest way to walk out with merchandise, prop a door for a friend, or cut through a secured area. Locking them isn't an option.

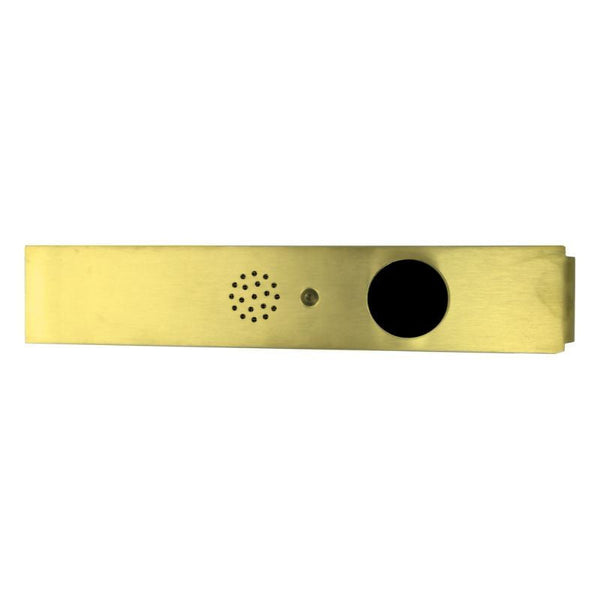

An exit device alarm kit converts an existing Sargent 80 Series panic bar into an alarmed exit device. The alarm mounts inside the push rail. When the alarm is armed and someone pushes the bar, the door opens immediately, and the horn sounds, so staff know the exit was used. Egress is never delayed or restricted.
Because it retrofits the existing device, a kit is usually the fastest and lowest-cost way to add monitoring to a door that already has good hardware.
Features of Sargent 545 Alarm Kits
|
Feature |
What it does |
|---|---|
|
Microprocessor-based alarm board |
Manages arming, activation, and timing reliably |
|
Sounds on rail depression |
Alarm sounds immediately when the bar is pushed while armed |
|
103 dB at 8 ft pulsating horn |
Loud enough to be heard through the building |
|
Flashing red LED |
Shows a violation occurred, reset by key only |
|
9VDC battery power |
No wiring required for standard installation |
|
Low battery alert |
Horn chirps to signal the battery needs replacing |
|
Automatic re-arming option |
Re-arms without staff intervention |
|
Field-selectable continuous alarm |
Optional continuous power with the 546 harness |
|
Guarded latch |
Tamper-resistant latching on alarmed devices |
|
UL and cUL listed |
Listed to U.S. and Canadian safety standards |
The key-reset LED is what makes the alarm useful after the fact. Even once the horn stops, the flashing LED shows staff which door was used until someone with a key resets it.
Choosing the Right Kit
Alarm kits are sized by rail style and length, so the kit has to match the device already on the door.
|
Kit |
Rail |
Typical door width |
|---|---|---|
|
Sargent 545-1 |
F wide rail |
36" doors |
|
Sargent 545-2 |
E/F narrow rail |
Up to 36" doors |
|
Sargent 545-3 |
G wide rail |
43" to 48" doors |
|
Sargent 545-4 |
G narrow rail |
Wide doors with narrow rails |
|
Sargent 545-6 / 545-7 |
Additional rail configurations |
Confirm fit on the product page |
Measure the existing device rail and confirm narrow or wide before ordering.
Compatible Devices
Sargent 545 alarm retrofit kits fit these 80 Series devices: 8300, MD8600, WD8600, GL-8800 and 8900. GL-8800 is the rim device with a guarded latch. A #41 (1-1/8") mortise cylinder is used to arm, disarm, and reset the alarm; check the product page for whether it's included with your kit.
Alarm Kit vs. Alarmed Exit Device vs. Standalone Door Alarm
|
Option |
How it works |
Best for |
|---|---|---|
|
Alarm retrofit kit |
Alarm added inside an existing device's push rail |
Good existing 80 Series hardware that needs an alarm |
|
Alarmed exit device |
New device with a built-in alarm, such as the Sargent 5300 Series |
New openings or worn devices needing replacement |
|
Standalone door alarm |
Separate alarm mounted on the door or frame |
Doors without compatible exit hardware |
Available Finishes
Finish codes follow the BHMA system, with the older US designation shown alongside. The two codes describe the same finish, so 630 and US32D are interchangeable on a hardware schedule.
|
Code |
Finish |
Where it fits |
|---|---|---|
|
630 / US32D |
Satin stainless steel |
The most common kit finish, matching stainless devices |
|
695 / SP313 |
Dark bronze painted |
Dark bronze devices and storefront |
|
313 |
Dark bronze anodized |
Bronze anodized aluminum framing |
Match the kit finish to the existing device. Availability varies by kit, so check the product page.
Benefits of Exit Device Alarm Kits
-
Deters unauthorized use of emergency exits.
-
Never restricts egress. The door opens immediately on a push.
-
Lower cost than a new device on good existing hardware.
-
No wiring required with standard battery power.
-
Visual and audible alerts to identify the door used.
-
Low battery alert prevents silent failures.
-
Optional continuous power and remote options with the 546 harness.
-
Ready to ship. In-stock kits ship the same day.
Applications
-
Retail emergency exits and back doors prone to theft.
-
Rooftop access doors.
-
School and university perimeter doors that get propped open.
-
Hospital and healthcare corridors with restricted areas.
-
Warehouses and distribution centers.
-
Hotel stairwells and service exits.
Why Order Sargent Exit Device Alarm Kits from Commercial Door Hardware
Commercial Door Hardware supplies door hardware for schools, healthcare facilities, offices, retail, hospitality, and institutional buildings across the country, carrying exit devices, exit trim, locks, cylinders, closers, hinges, thresholds, weatherstripping, and the parts that go with them from Sargent, Von Duprin, Corbin Russwin, Accentra, Schlage, LCN, Norton, and Pemko.
We stock alarm kits alongside the Sargent devices, cylinders, harnesses, and power supplies they work with, so the upgrade can be ordered in one place and arrive ready to install.
Every item in this collection is in stock at Commercialdoorhardware.com and ships the same day, because a failed exit opening is a life safety and security problem rather than a maintenance item.
