Sargent 8900 Mortise Exit Devices | Grade 1 Panic Bar

Reset

Showing 1 - 8 of 8 products

Sargent 12-8904-G-32D Mortise Exit Device

Sargent 8904-G-32D Mortise Exit Device

SARGENT Sargent 12-8904G-US32D Mortise Exit Bar, Wide Stile Pushpad, Fire Rated, 48" Bar, Night Latch Function, Satin Stainless Steel

$1,809.25

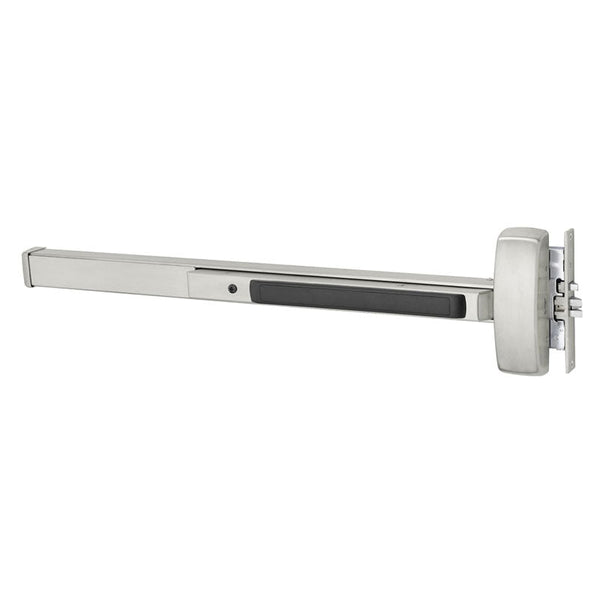

Sargemt 12-8904-F-32D Fire Rated Mortise Exit Bar

Sargemt 12-8904-F-32D

SARGENT Sargent 12-8904F-US32D Mortise Exit Bar, Wide Stile Pushpad, Fire Rated, 36" Bar, Night Latch Function, Satin Stainless Steel

$1,809.25

Sargent 8904J-US32D Mortise Exit Bar-US32D

Sargent 8904J-US32D Mortise Exit Bar-US32D

SARGENT Sargent 8904J-US32D Mortise Exit Device, For 37"-42" Dr Width, Night Latch Function, Hex Key Dogging, Satin Stainless Steel

$1,683.22

Sargent 12-8904J-US32D Mortise Exit Bar

Sargent 12-8904J-US32D Mortise Exit Bar

SARGENT Sargent 12-8904J-US32D Fire Rated Mortise Exit Device, For 37"-42" Dr Width, Night Latch Function, Satin Stainless Steel

$1,809.25

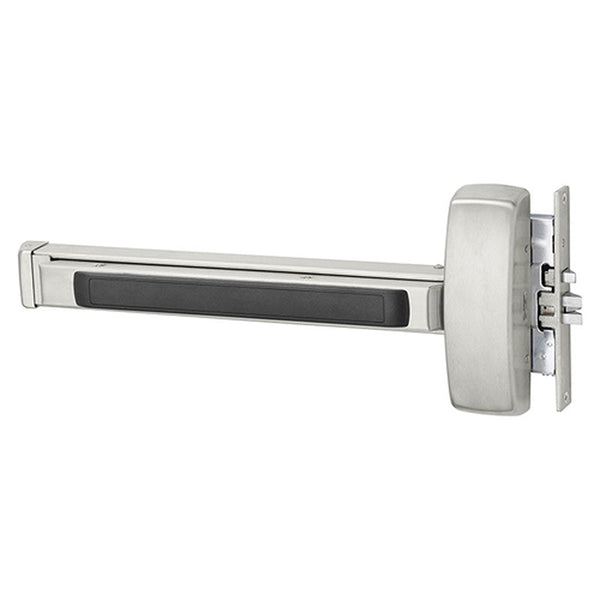

Sargent 8904-E-US32D Mortise Exit Bar

SARGENT Sargent 8904E-US32D Mortise Exit Device, For 24"-32" Dr Width, Night Latch Function, Hex Key Dogging, Satin Stainless Steel

$1,683.22

Sargent 12-8904-E-US32D Mortise Exit Bar

SARGENT Sargent 12-8904E-US32D Fire Rated Mortise Exit Device, For 24"-32" Dr Width, Night Latch Function, Satin Stainless Steel

$1,809.25

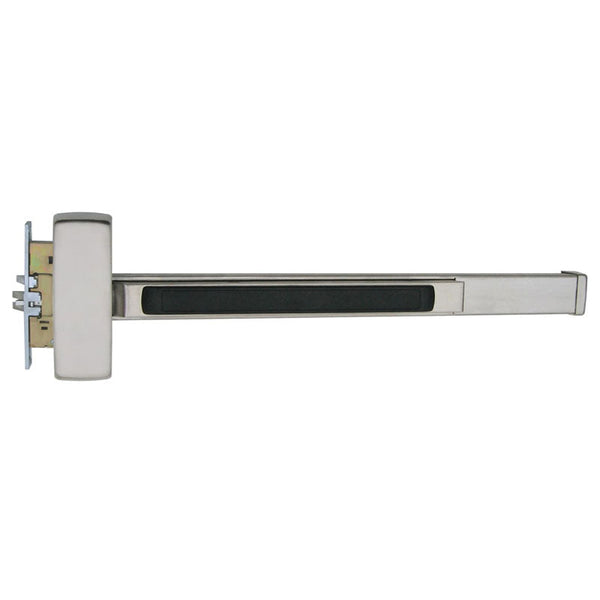

Sargent 8904-G-32D Mortise Exit Bar

Sargent 8904-G-32D Mortise Exit Bar

SARGENT Sargent 8904G-US32D Mortise Exit Bar, Wide Stile Pushpad, 48" Bar, Night Latch Function, Hex Key Dogging, Satin Stainless Steel

$1,683.22

Sargent 8904-F-32D Mortise Exit Bar

Sargent 8904-F-32D

SARGENT Sargent 8904F-US32D Mortise Exit Bar, Wide Stile Pushpad, 36" Bar, Night Latch Function, Hex Key Dogging, Satin Stainless Steel

$1,683.22

The Sargent 8900 Series puts a panic bar and a mortise lock together in one Grade 1 device. Built for wide-stile wood and metal doors, it latches through a concealed single-point guarded latch inside the door. Shop the 8900 in night latch, storeroom, classroom, passage, and electrified functions, fire-rated and non-rated, in E, F, J, and G rails with no cutting needed on standard doors. In stock at Commercial Door Hardware.

What the 8900 Series Is

The 8900 is Sargent's wide stile mortise lock exit device. The push pad works like any 80 Series device, but instead of a surface latch, it operates a concealed single-point guarded latch within the mortise pocket of the door. That makes the latch much harder to defeat, and leaves the door edge clean.

It's designed for standard-width stile applications on wood and metal doors, and works equally well on single doors and on pairs, where the inactive leaf carries a vertical rod device.

Specifications

Specification	Detail
Standard	ANSI/BHMA A156.3 Grade 1; UL-listed panic and fire exit hardware
Door types	Wood and metal
Minimum stile	4-1/2" (114mm)
Door thickness	1-3/4" standard
Latching	Concealed single-point guarded latch
Dogging	Hex key standard on non-rated; cylinder dogging optional; less dogging on fire-rated
Pairs	With vertical rod device on the inactive leaf and 815 open back strike
Fire rated	12-8900 versions

Choosing the Rail

Rail	Door width	No cutting at
E	24" to 32"	32"
F	33" to 36"	36"
J	37" to 42"	42"
G	43" to 48"	48"

Pre-sized rails mean no cutting on standard door widths, saving installation time.

Functions

Mechanical

Model	Function	ANSI	Outside operation
8904	Night latch	03	Key retracts the latch
8906	Storeroom	09	Key unlocks trim, trim retracts latch, relocks when key is removed
8910	Exit only	01	No outside operation
8913	Classroom	08	Key locks and unlocks outside trim
8915	Passage	14	Trim always retracts the latch

Electromechanical

Model	Function	On power loss
8975	Electrified ET trim, fail safe	Lever unlocks; key retracts latch
8976	Electrified ET trim, fail secure	Lever locks; key retracts latch

Trim Options

700 Series ET lever trim in standard and electrified functions, with Sargent lever designs.
Pull and thumbpiece trims, such as the 814 pull, for openings where a pull is preferred. Thumbpiece trims used with 8900 devices are handed.
Freewheeling trim options that resist forcing.

Electrified Options

Prefix	Option
AL-	Alarm
PL-	SARGuide photoluminescent push pad
53-	LX latchbolt monitor
54-	Outside lever monitoring
55-	Request-to-exit (rail monitoring)
56-	Electric latch retraction
58-	Electric dogging
59-	Electroguard delayed egress

Existing 8900 devices built after 2006 can be converted with an M56A electric latch retraction kit in the field.

Popular 8900 Products

Model	Description
Sargent 8904F-US32D	36", night latch, hex key dogging, satin stainless
Sargent 8904E-US32D	24" to 32" doors, night latch, satin stainless
Sargent 8904J-US32D	37" to 42" doors, night latch, satin stainless
Sargent 8904G-US32D	48" device, night latch, satin stainless
Sargent 12-8904E-US32D	Fire-rated, 24" to 32" doors, night latch
Sargent 8913	Classroom function, trim sold separately
Sargent 8975 / 8976	Electrified fail-safe/fail-secure

Available Finishes

Code	Finish	Where it fits
630 / US32D	Satin stainless steel	The standard exit device finish; resists wear and cleaning
629 / US32	Bright stainless steel	Polished stainless entrances
613 / US10B	Oil rubbed bronze	Bronze and darker hardware schedules
605 / US3	Bright brass	Traditional polished brass entrances
606 / US4	Satin brass	Satin brass hardware schedules
689 / US28	Aluminum painted	Matches aluminum framing and closers
BSP	Black suede powder coat	Contemporary and dark hardware schedules
WSP	White suede powder coat	White frames and light entrances

Sargent 80 Series exit devices are offered in most standard finishes but not in 626/US26D satin chrome, so 630/US32D satin stainless is the usual match where locksets elsewhere are satin chrome. Availability varies by model; confirm on the product page.

Benefits of the 8900 Series

Concealed guarded latch inside the door.
Grade 1 for high-traffic openings.
Pre-sized rails with no cutting at standard widths.
Fire-rated versions for stairwells and corridors.
Full range of functions, mechanical and electrified.
Field retrofit to electric latch retraction.
Free egress at all times.

Applications

Schools, using 8913 classroom function.
Perimeter and main entrances on wood and metal doors.
Storerooms and mechanical rooms, using 8906.
Fire-rated stairwells, using 12-8900.
Access-controlled entrances, using 8975, 8976 or 56- ELR.
