Keypad Exit Devices

Keyless entry for exit doors, without running a single wire. Sargent keypad exit devices combine a Grade 1 wide stile panic bar with a battery-powered keypad on the outside lever, so authorized users enter a PIN to get in while anyone can push the bar to get out. Shop standalone keypad rim and mortise exit devices with up to 100 user codes and cylinder override options, from Commercial Door Hardware.

Access Control Without the Infrastructure

A card access system is the right answer for a building-wide security program. It's overkill for a single staff entrance, a tenant door, or a storage building at the back of a campus. Those doors need to keep the public out and let a defined group of people in, without the wiring, panels, and software of a networked system.

Sargent keypad exit devices solve that at the door itself. The keypad, controller, and motor are built into the outside trim and run on batteries. Authorized users enter a code, the lever unlocks, and they're in. From inside, the push bar works exactly as panic hardware must, opening the door with a single push at all times.

Keypad vs. Key vs. Card Access

The keypad's strongest advantage is what happens when someone leaves. With keys, a departed employee means rekeying. With a keypad, you delete their code at the door in a few seconds.

Key Features

Rim and Mortise Options

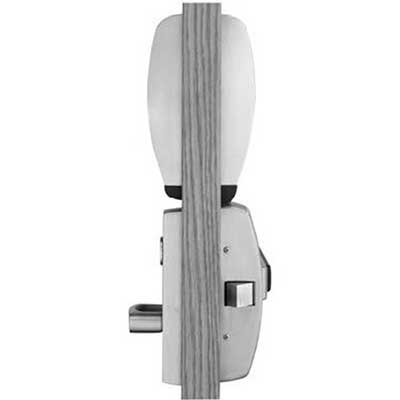

Rim devices are the simplest to install and the most common choice for single doors. Mortise devices latch through a mortise lock in the door edge, often preferred on high-abuse openings. Choose cylinder override when keyholders such as security or maintenance need to enter regardless of codes.

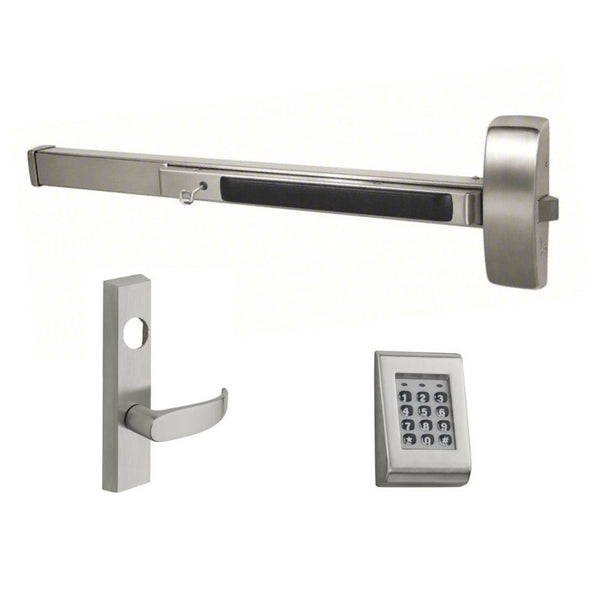

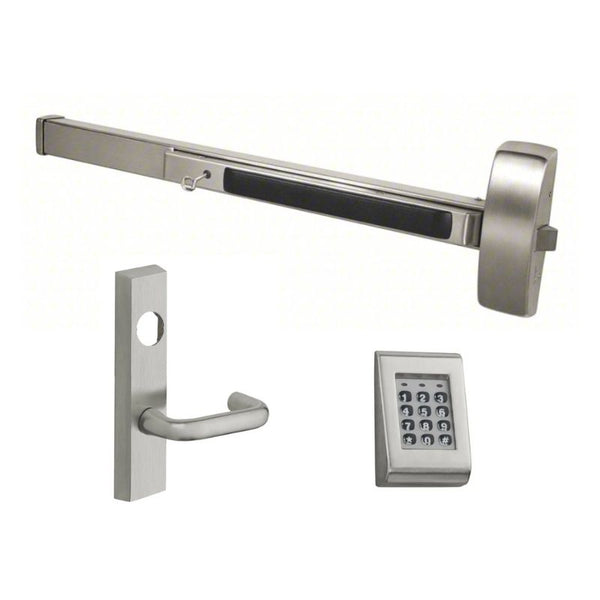

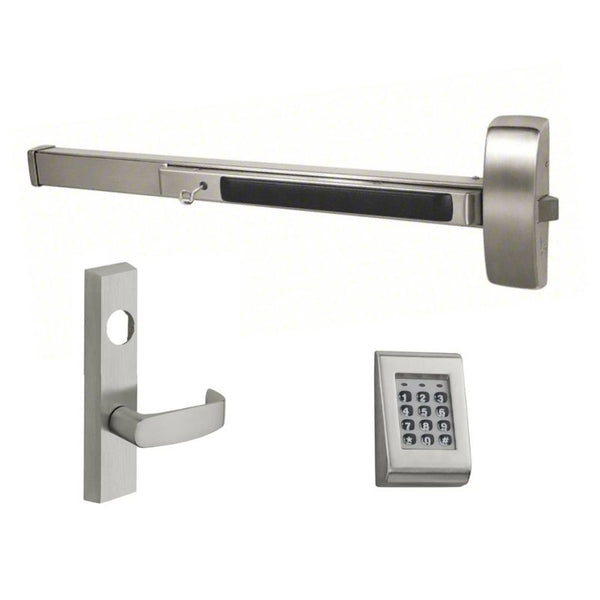

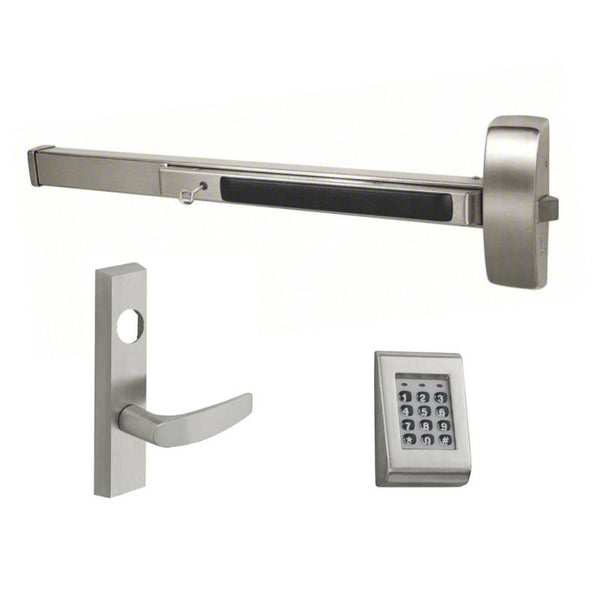

Popular Sargent Keypad Exit Devices

Available Finishes

Satin stainless suits most commercial openings, since the lever and push pad are touched constantly. Check the product page for the full list of finishes available on each model.

Finish codes follow the BHMA system, with the older US designation shown alongside. The two codes describe the same finish, so 630 and US32D are interchangeable on a hardware schedule.

Benefits of Sargent Keypad Exit Devices

• No keys to lose, copy, or rekey.

• No wiring, which makes retrofits fast and affordable.

• Codes managed at the door in seconds.

• Visitor and contractor access with one-time codes.

• Free egress at all times from inside.

• Grade 1 hardware for high-traffic doors.

• Long battery life of about 40,000 operations per set.

• Master key integration with cylinder override.

Applications

• Staff and employee entrances in offices and retail.

• Tenant-occupied buildings needing standalone access control.

• Stairwell doors where controlled re-entry is needed.

• School and campus outbuildings, gyms and athletic facilities.

• Healthcare staff areas.

• Storage, mechanical, and IT rooms on exit-device doors.

How to Specify a Keypad Exit Device

1. Choose rim or mortise based on the door and existing prep.

2. Decide on cylinder override for keyholder access.

3. Measure the door width and choose the device length.

4. Choose the lever design: B, J, L, or P.

5. Confirm handing, such as RHR or LHR.

6. Check the fire rating, since rated openings need fire-rated (12-) versions.

7. Select the finish.

8. Plan code management: who holds the master, supervisory, and user codes.

Why Order Sargent Keypad Exit Devices from Commercial Door Hardware

Commercial Door Hardware supplies door hardware for schools, healthcare facilities, offices, retail, hospitality, and institutional buildings across the country, carrying exit devices, exit trim, locks, cylinders, closers, hinges, thresholds, weatherstripping, and the parts that go with them from Sargent, Von Duprin, Corbin Russwin, Accentra, Schlage, LCN, Norton, and Pemko.

We carry Sargent keypad exit devices alongside the rim and mortise cylinders, strikes, and closers they work with, so the opening can be ordered complete and keyed to your system.

Every item in this collection is in stock at Commercialdoorhardware.com and ships the same day, because a failed exit opening is a life safety and security problem rather than a maintenance item.
