Description
Active

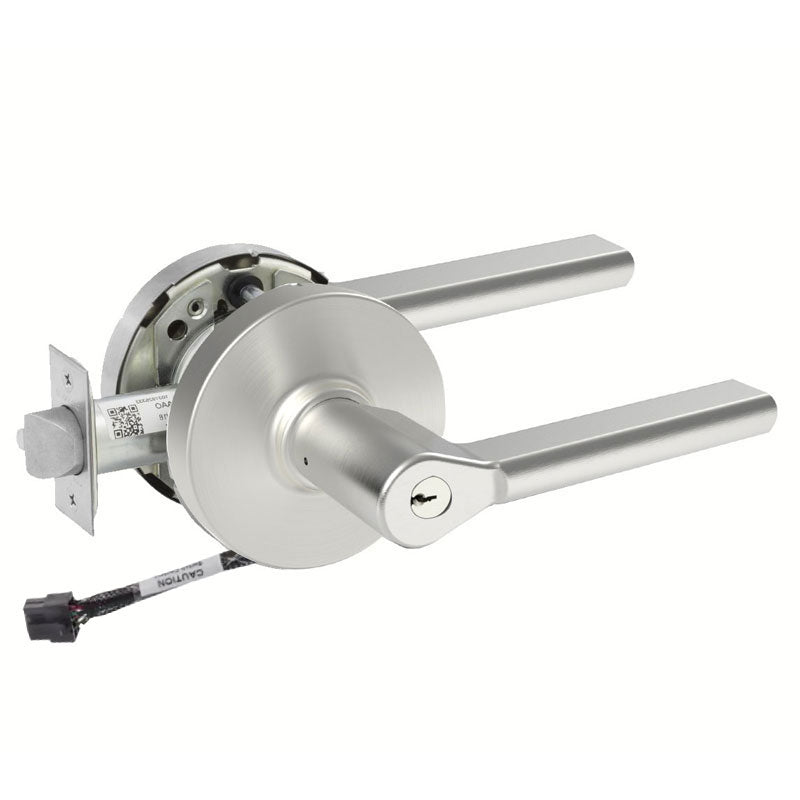

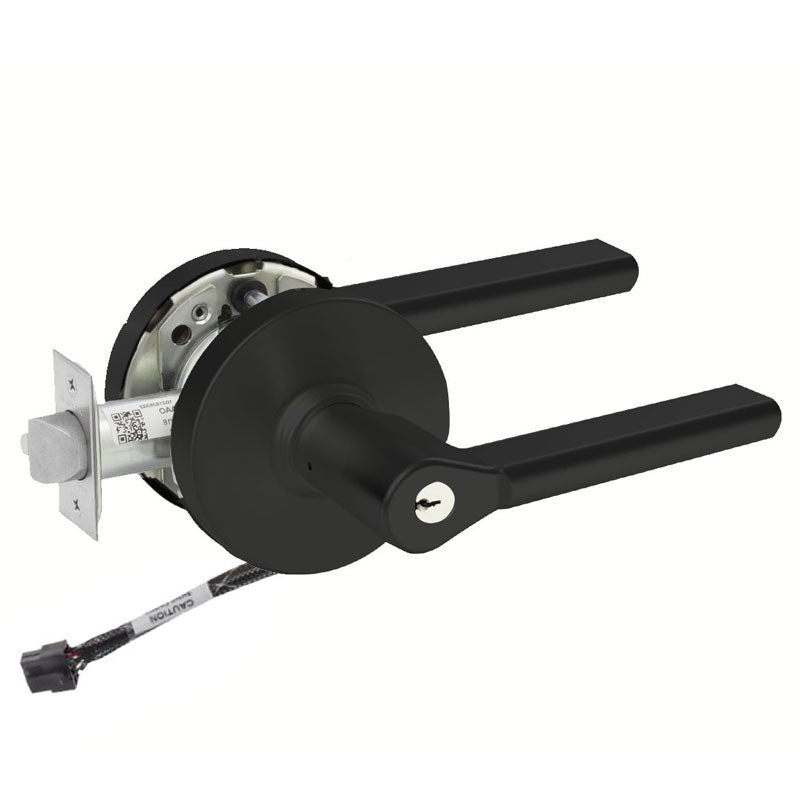

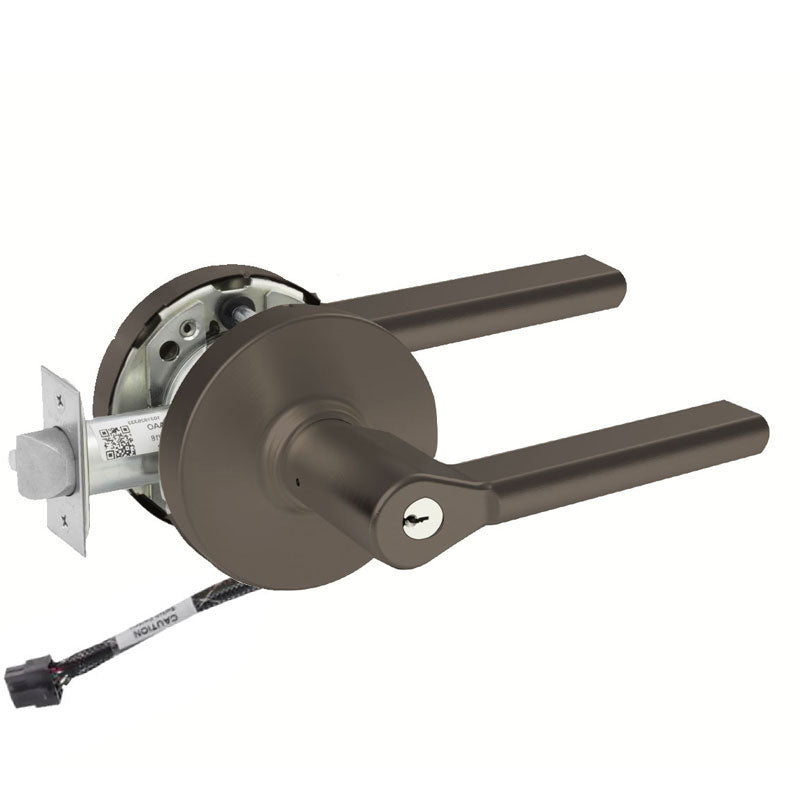

The Sargent 10XG70-LMD Cylindrical Electromechanical Lock features a Fail Safe - Power Off Unlocks Lever Function, where the power off unlocks the outside lever. The 10XG70-LMD comes with a standard LA Keyway Cylinder, Keyed Randomly, 2 change keys per lock, an L Rose, MD Lever, 2-3/4" backset, 4-7/8" strike, and comes in 12VDC or 24VDC voltage options. Sargent 10XG70-LMD Locks are field-selectable, fail-safe, and fail-secure.
Key Features:
- 70 Function - Fail Safe
- 2 3/4" Backset
- 4 7/8" Strike
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times
- UL-cUL listed for 3 hour fire doors and windstorm applications
| Function |
70 Electromechanical (Fail Safe)
|
| Lever/Knob Design | MD Lever |
| Rose/Escutcheon Design | L Rose |
| Cylinder Type | 6-Pin Cylinder |
| Num Pins | 6 |
| Hand | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Latch Number | Oct-00 |
| Latch Type | Deadlatch |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Strike Number | 808 |
| Strike Type | ANSI Curved Lip Strike |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Operating Voltage | 12 or 24 VAC/DC |
| Amp Draw | 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC |
| Product Type | Electric Cylindrical Lock |
