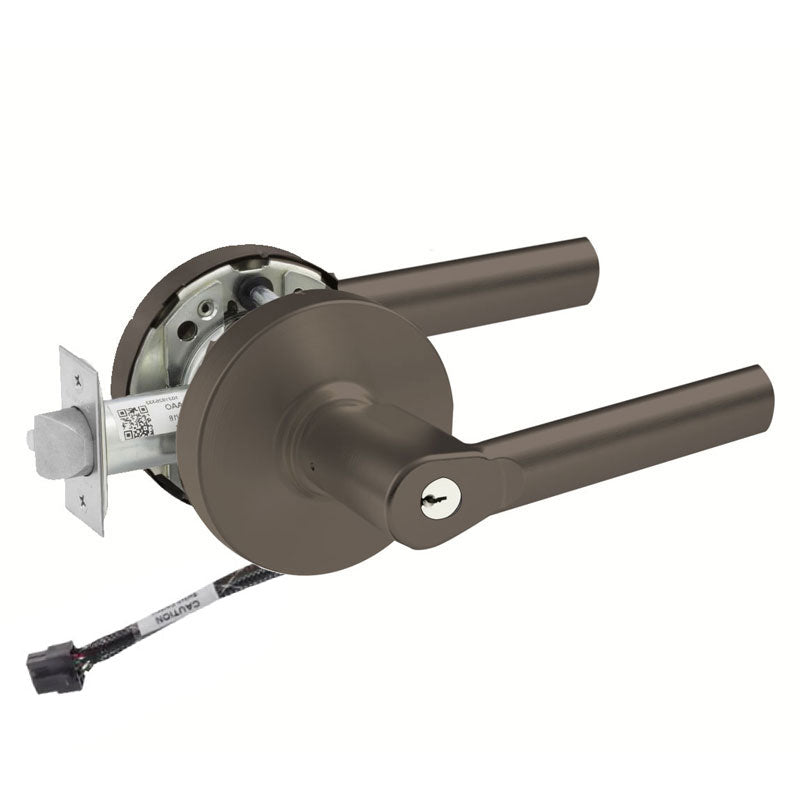

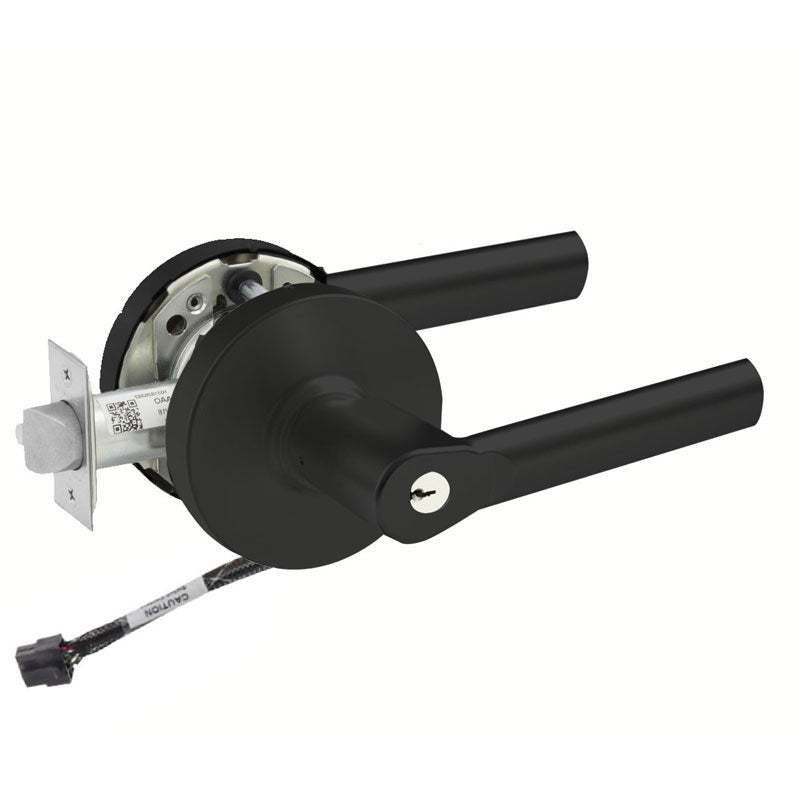

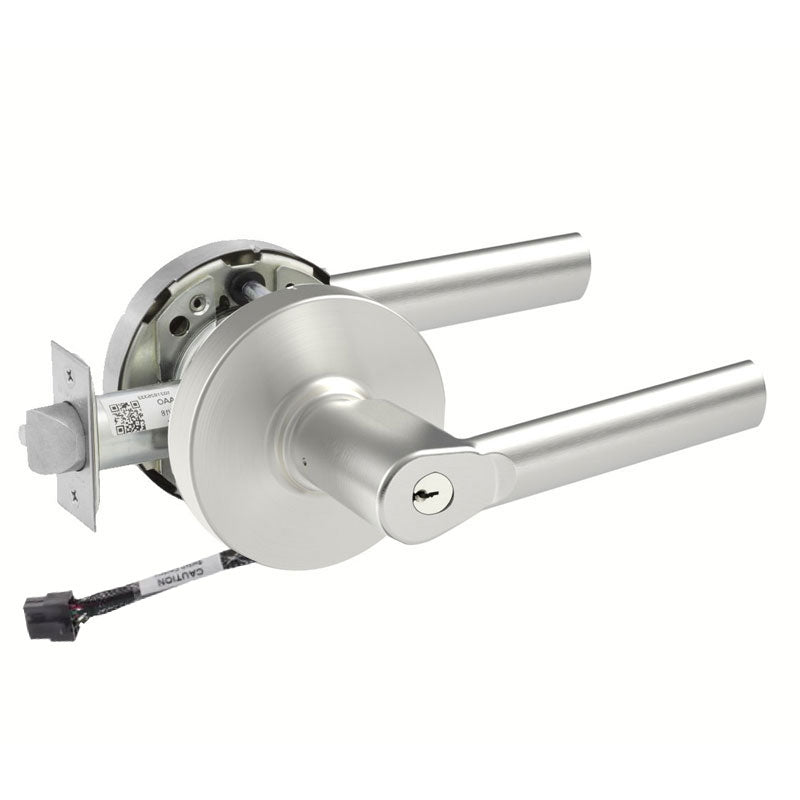

The Sargent 10XG71-LMB Cylindrical Electromechanical Lock features a Fail Secure - Power Off Locks Lever Function, where the power off Locks the outside lever. The 10XG71-LMB comes with a standard LA Keyway Cylinder, Keyed Randomly, 2 change keys per lock, an L Rose, MB Lever, 2-3/4" backset, 4-7/8" strike, and comes in 12VDC or 24VDC voltage options. Sargent 10XG71-LMB Locks are field-selectable, fail-safe, and fail-secure.
Key Features:
- 71 Function - Fail Secure
- 2 3/4" Backset
- 4 7/8" Strike
- ANSI/BHMA Grade 1 certified for cycle and strength requirements. Exceeds cycle testing standards by nine times with 9.6 million cycles and torque resistance by 1.5 times
- UL-cUL listed for 3 hour fire doors and windstorm applications
10X-Line Bored Lever Locks
The SARGENT 10X Line bored lock is engineered to secure and protect high-traffic, high-abuse spaces. It doesn't simply meet ANSI/BHMA Grade 1 performance standards for durability, strength and performance, it exceeds them - by as much as 20 times. That means occupants will experience reliable performance throughout its lifecycle.
Features
- Compatible with several security key systems (Degree, Signature, KESO, etc.)
- Prevents entry and maintains egress against more than 3,100 in-lb locked lever torque (2.6x ANSI/BHMA A156.2 requirements)
- Withstands 1,600 lbs offset lever pull (8x ANSI/BHMA A156.2 requirements) and continues to restrict entry
- Ensures latch retraction with 100lb preload (2x ANSI/BHMA A156.2) while maintaining operation in warped doors or doors with latch bind
- Prohibits entry after more than 100 vertical impacts (20x ANSI/BHMA A156.2 requirements)
- Innovative push/turn button design prevents damage from door stops and walls
- 26 mechanical functions offered
- Available in 14 finishes with multiple lever designs
- Optional Microshield ® antimicrobial coating available
- Lockbody design supports all cylinder formats - from fixed to interchangeable core
- Provides maximum resistance to vandalism and other malicious attacks
- Certified above & beyond testing to withstand high volume traffic
- Complements the look of any design style
- Minimizes inventory stocking requirements
- Simplifies installation in new and retrofit applications
- Integrates with new or existing facility key systems
| Function |
71 Electromechanical (Fail Secure)
|
| Lever/Knob Design | MB Lever |
| Rose/Escutcheon Design | L Rose |
| Cylinder Type | 6-Pin Cylinder |
| Num Pins | 6 |
| Hand | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Latch Number | Oct-00 |
| Latch Type | Deadlatch |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Strike Number | 808 |
| Strike Type | ANSI Curved Lip Strike |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Operating Voltage | 12 or 24 VAC/DC |
| Amp Draw | 250 mA @ 12VAC/VDC or 150mA @ 24VAC/VDC |
| Product Type | Electric Cylindrical Lock |
