Product Cut Sheet
Description
Active

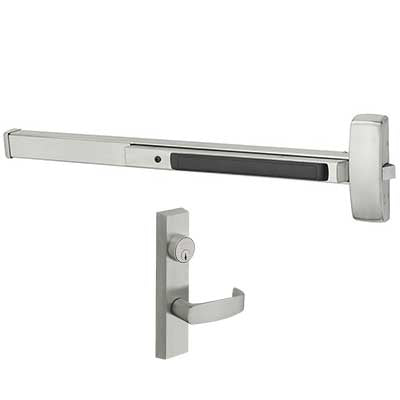

The Sargent 12-8813-J-ETL Rim Exit Device Panic Bar is Fire Rated, a 37"-42" bar, and features a ETL Trim., is in Grade 1.
This is an exit device panic bar ideal for use in all institutions, office spaces, and healthcare facilities. It is grade 1 commercial door hardware.
A key locks/unlocks the outside lever control. And the Sargent 8813 has "ETL" trim.
Features: Sargent 12-8813 Rim Exit Device Panic Bar
- Single point rim latching device
- Single door & double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
| Manufacturer | Sargent |
| SKU | 12-8813J |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Classroom |
| Device Length | 42" |
| Hand | Non-Handed |
| Dogging Options | Less Dogging |
| Includes Trim | Yes |
| Trim Type | ETL |
| Includes Cylinder(s) | Optional |
| Minimum Stile Size | 4 3/4" |
| Door Material | Metal or Wood |
| Door Width | 37" to 42" |
| Door Thickness | 1 3/4" - 2 1/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
