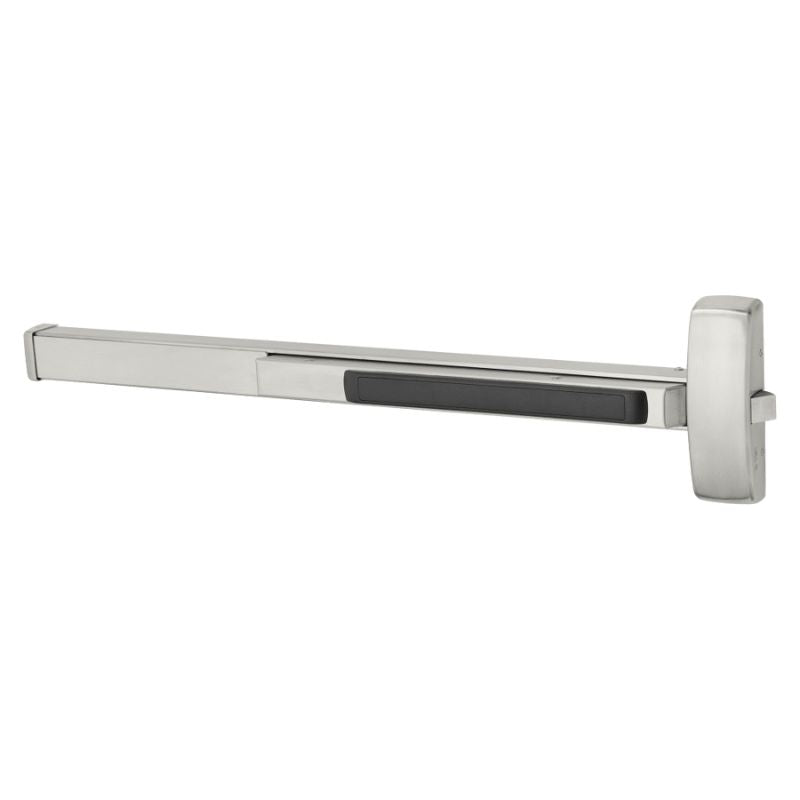

Sargent 12-8815F Fire Rated Rim Exit Device, Exit Only, Passage Function, No Dogging, 33"-36" Door Width

SARGENTSKU: 128815FUS32D

Finish: US32D-630 Satin Stainless Steel
Price:
Sale price$1,268.09/ea
In Stock
In Stock

Related Hardware

Sargent 12-8815F Fire Rated Rim Exit Device, Exit Only, Passage Function Only, Less Trim, 33"-36" Door Width, No Dogging, Grade 1, Reversible

The Sargent 12-8815F Exit Device, with a fire rating and rim design, is suitable for doors with a width of 33"-36". It features a passage function, reversible functionality, and a Grade 1 rating. Dogging is not available and no trim is included.

The 8800 Series is tailored for standard width stile applications on both wood and metal doors. This reversible rim exit device is renowned for setting industry benchmarks in durability and reliability. It forms an integral part of Sargent’s comprehensive range of exit devices, offering robust performance and trusted security solutions.

  • Single point rim latching device
  • Single door & double door applications with mullions
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - Grade 1
  • UL Fire and Panic listed
Manufacturer Sargent
SKU 12-8815F
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated Yes
Burglar Rated No
ADA Compliance No


Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Passage
Device Length 36"
Hand Non-Handed
Dogging Options Hex Key Dogging
Includes Trim No
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 33" to 36"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
