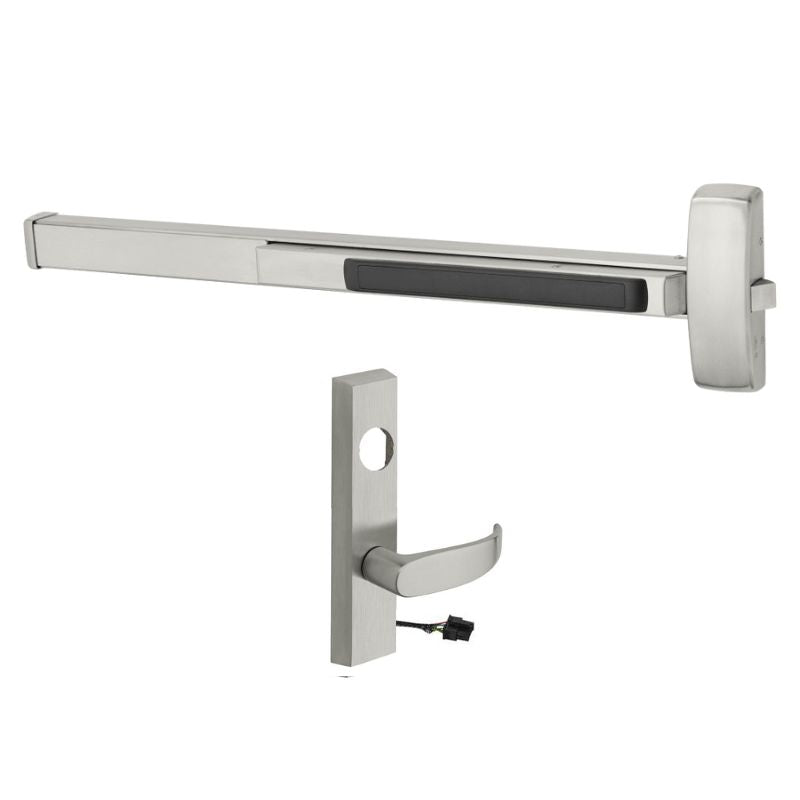

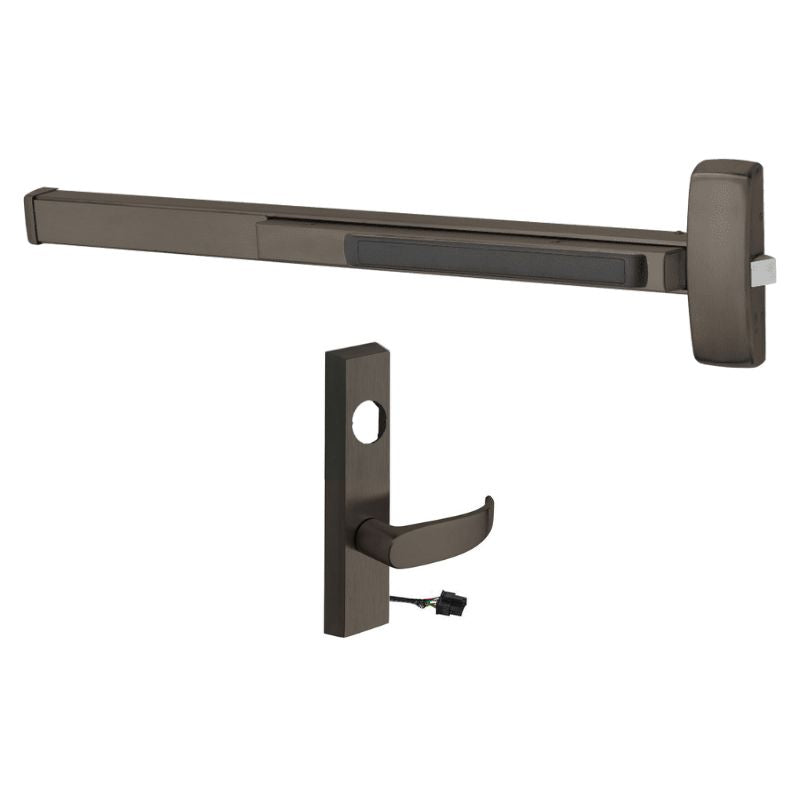

Sargent 12-8876-E-ETP-24V Fire Rated Rim Exit Device, With 76 Electrified ET Trim, For 24-32 Inch Door

SARGENTSKU: 128876EETP24VUS32DLHR

Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Price:
Sale price$2,038.43/ea
Available (In‑Stock)
In-Stock Lead Time

Related Hardware

Sargent 12-8876-E-ETP-24V Fire Rated Rim Exit Device, 24V Fail Secure, P-Lever, Power off Unlocks Lever Key retracts Latch, 24-32 Inch Door, Less Cylinder, No Dogging, Grade 1

The Sargent 12-8876-E-ETP-24V Fire Rated Rim Exit Device is designed for use on 24-32 inch doors and is equipped with a 24V Fail Secure feature. In the event of a power failure, the P-Lever unlocks the lever and retracts the latch, allowing for a quick and easy exit. This Grade 1 device also does not require a cylinder and does not have a dogging feature.

76 Electrified ET Trim - Fail Secure
776-8-ETP-24V-LC Electrified Lever Trim, ETP Trim, 24V, Fail Secure Power Off, Locks Lever, Key Retracts Latch, Less Cylinder

Manufacturer Sargent
SKU 12-8876E
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance Yes
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length 32"
Hand LHR or RHR
Dogging Options Less Dogging
Includes Trim Yes
Trim Type Lever
Trim Design Keyed Electric Lever
Trim Part No. 776-8 ETP 24V
Includes Cylinder(s) No
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 24" to 32"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Product Type Rim Exit Devices
