Product Cut Sheet
Product Overviews
Active

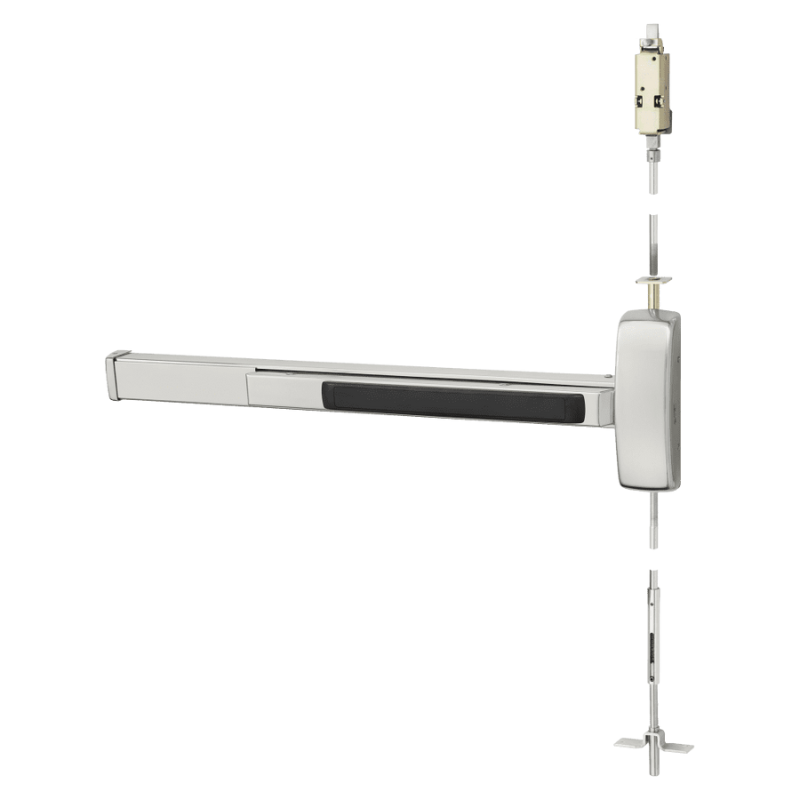

Sargent 12-WD8606F-120-US32D Fire Rated Concealed Vertical Rod Exit Device, Grade 1, Wide Stile Pushpad, Less Trim, 33-36 Inch Door, 120 Inch Door Height, Less Dogging, 630 Satin Stainless Steel Finish, Storeroom Function
This Grade 1 fire-rated exit device from Sargent delivers dependable emergency egress for commercial applications. The concealed vertical rod mechanism operates smoothly with a wide stile pushpad, engineered for doors measuring 33-36 inches wide and up to 120 inches tall. Finished in 630 satin stainless steel for durability and aesthetic appeal, it features storeroom function without dogging capability. Designed to meet stringent fire safety codes, this heavy-duty device provides reliable performance in high-traffic commercial environments where code compliance and security are paramount.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| SKU | 12-WD8606F-120-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
|
Physical Appearance
|
Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
|
Includes Cylinder(s)
|
No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
36" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Storeroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
33" to 36" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
120" |
