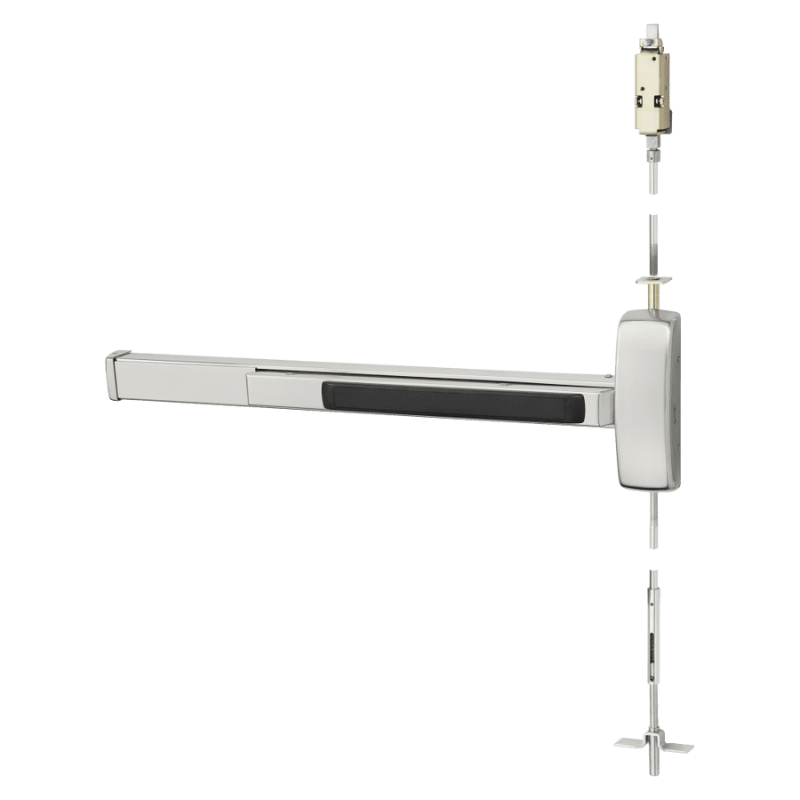

Sargent 12-WD8606J-96-US32D Fire Rated Concealed Vertical Rod Exit Device, Less Trim, 37-42 Inch Door, 96 Inch Door Height, Less Dogging, Wide Stile Pushpad, Storeroom Function, 630 Satin Stainless Steel Finish, Grade 1
This Grade 1 fire-rated exit device from Sargent features a concealed vertical rod mechanism engineered for commercial applications requiring storeroom function. Designed for 37-42 inch doors with 96 inch height clearance, it delivers reliable emergency egress performance with a wide stile pushpad and satin stainless steel construction. The device operates without dogging capability and meets stringent fire safety standards for high-traffic commercial environments.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| SKU | 12-WD8606F-96-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
|
Physical Appearance
|
Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
|
Includes Cylinder(s)
|
No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Storeroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
96" |
