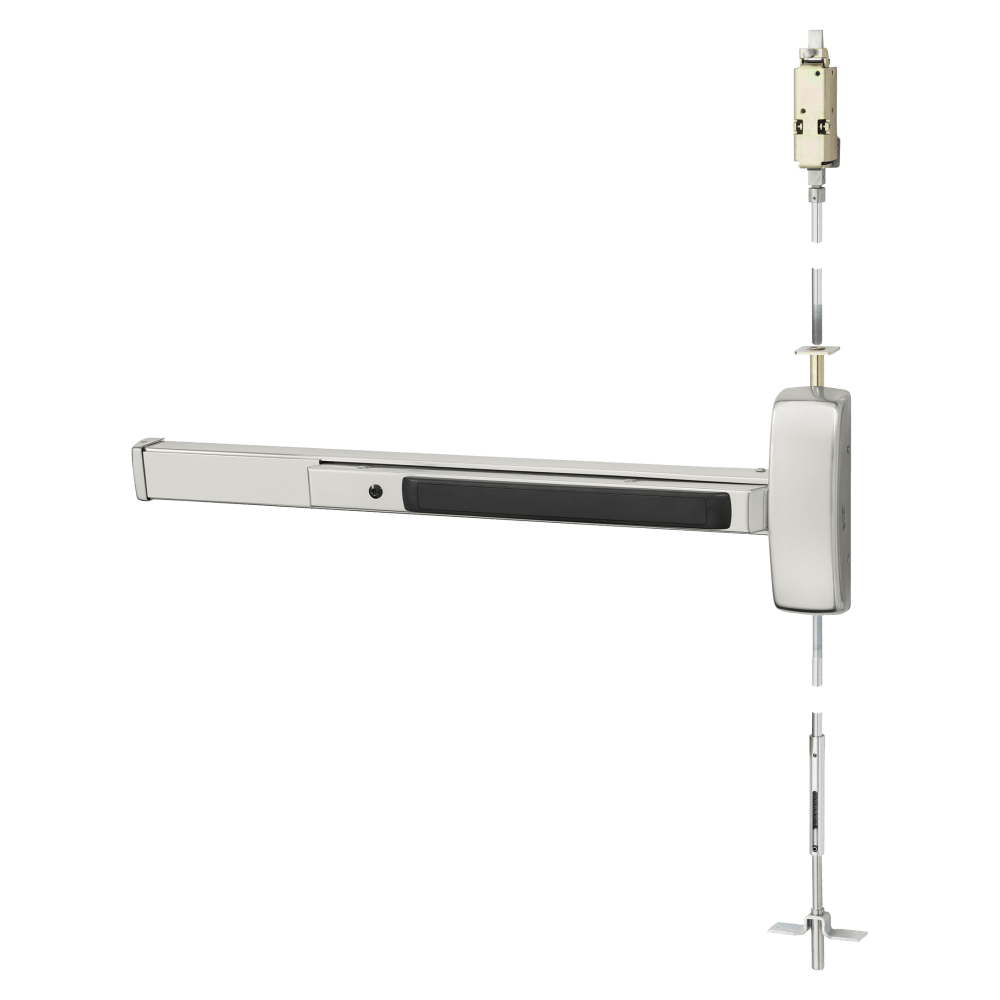

Sargent 12-WD8613J-84-US32D Fire Rated Concealed Vertical Rod Exit Device, Wide Stile Pushpad, Classroom Function, 84 Inch Door Height, Satin Stainless Steel Finish, For 37-42 Inch Door, Grade 1, Less Dogging
Engineered for institutional environments, this Sargent fire-rated exit device features a concealed vertical rod mechanism designed for seamless integration with wide stile doors. The classroom function restricts egress to authorized personnel while maintaining emergency exit compliance. Constructed in durable satin stainless steel, it accommodates 37-42 inch door widths with 84-inch door height specifications. Grade 1 rated for heavy-duty commercial applications. Without dogging capability.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| SKU | 12-WD8613J-84-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
|
Physical Appearance
|
Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
|
Includes Cylinder(s)
|
No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Classroom |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
84" |
>
