Product Cut Sheet
Product Overviews
Active

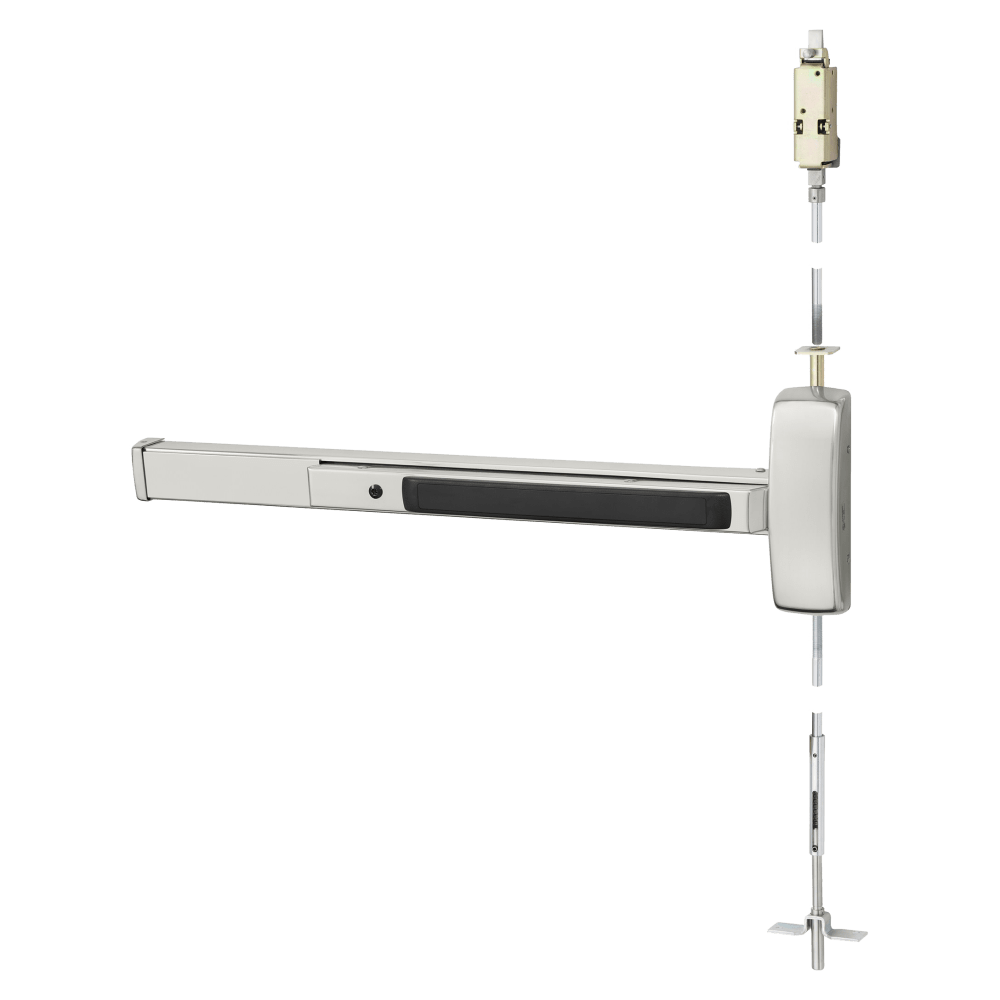

Sargent 12-WD8615F-84-US32D Fire Rated Concealed Vertical Rod Exit Device, For 33-36 Inch Door, 84 Inch Door Height, Less Dogging, Grade 1, Wide Stile Pushpad, Passage Function, Satin Stainless Steel Finish
This Grade 1 fire-rated exit device from Sargent combines concealed vertical rod construction with passage function operation, meeting stringent egress requirements for commercial facilities. Built for 33-36 inch doors at 84 inch heights, the wide stile pushpad ensures accessible, intuitive activation during emergency situations. The satin stainless steel finish provides superior corrosion resistance in demanding environments. Without dogging functionality, the device maintains consistent security protocols while delivering reliable performance in high-traffic institutional and commercial applications where code compliance is essential.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| SKU | 12-WD8615F-84-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
|
Physical Appearance
|
Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
|
Includes Cylinder(s)
|
No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
36" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Passage |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
33" to 36" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
84" |
>
