Description
Active

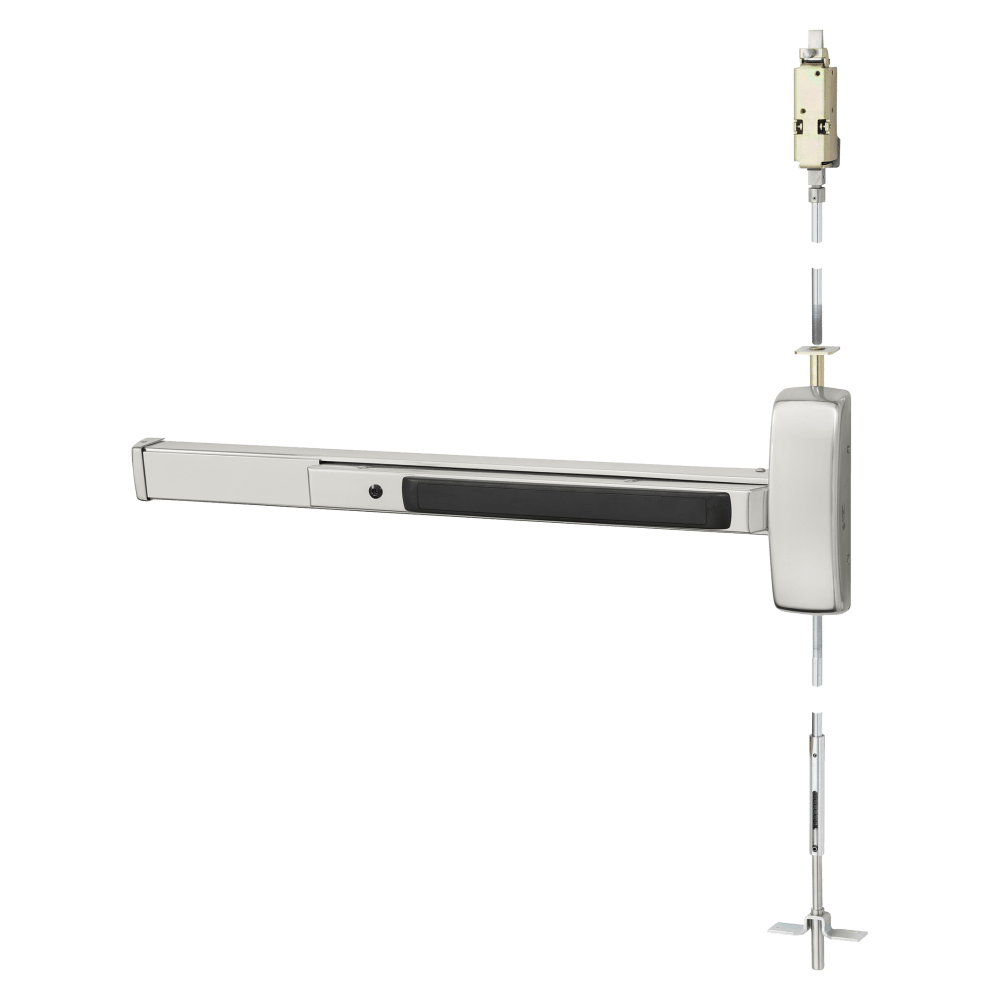

Sargent 12-WD8615F-96-US32D Fire Rated Concealed Vertical Rod Exit Device, Less Dogging, Passage Function, For 33-36 Inch Door, 96 Inch Door Height, Grade 1, Satin Stainless Steel Finish, Wide Stile Pushpad
This Grade 1 fire-rated exit device from Sargent features a concealed vertical rod mechanism designed for standard commercial doorways measuring 33-36 inches wide and 96 inches tall. The passage function configuration eliminates dogging capability, making it ideal for high-traffic applications requiring consistent egress control. Constructed with durable satin stainless steel finish, the wide stile pushpad provides reliable operation while meeting fire safety codes. The concealed rod design maintains a clean aesthetic while delivering professional-grade performance in demanding commercial environments.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| SKU | 12-WD8615F-96-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
|
Physical Appearance
|
Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
|
Includes Cylinder(s)
|
No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
36" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Passage |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
33" to 36" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
96" |
>
