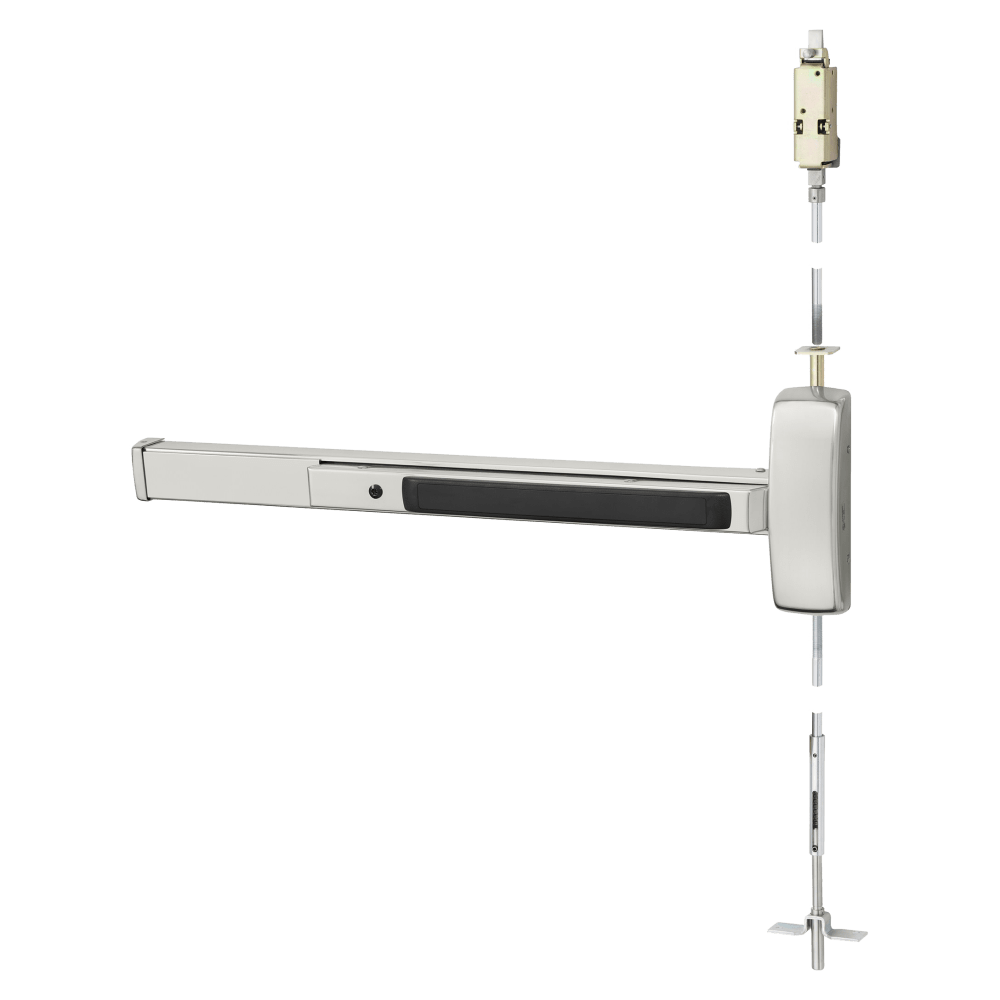

Sargent 12-WD8615G-120-US32D Fire Rated Concealed Vertical Rod Exit Device, Grade 1, Passage Function, For 43-48 Inch Door, Wide Stile Pushpad, 120 Inch Door Height, Less Dogging, Satin Stainless Steel Finish
This Grade 1 fire-rated exit device from Sargent delivers reliable emergency egress for wide doors up to 48 inches. The concealed vertical rod design integrates seamlessly into modern door aesthetics while the passage function allows controlled access. Built for 120-inch door heights with a durable satin stainless steel finish, it meets stringent fire safety codes. The wide stile pushpad provides intuitive operation, and the absence of dogging ensures consistent security protocols. Ideal for commercial facilities requiring certified life safety hardware.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
-
UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| SKU | 12-WD8615G-120-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
|
Physical Appearance
|
Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
|
Includes Cylinder(s)
|
No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
48" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Passage |
| Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
43" to 48" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
120" |
