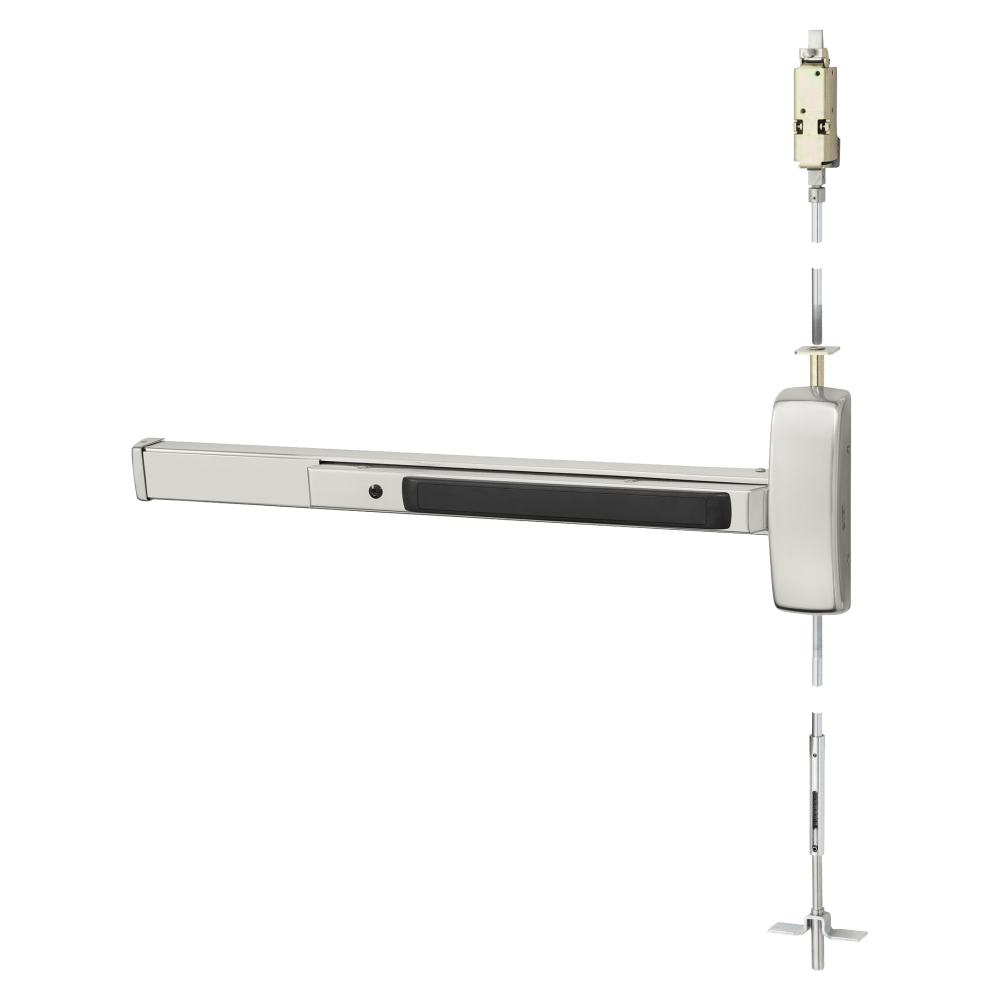

Sargent 12-WD8615G-84-US32D Fire Rated Concealed Vertical Rod Exit Device, Grade 1, Passage Function, For 43-48 Inch Door, 84 Inch Door Height, Wide Stile Pushpad, Less Dogging, Satin Stainless Steel Finish
Engineered for high-traffic commercial applications, this Grade 1 fire-rated exit device delivers reliable emergency egress control on wide-stile doors up to 48 inches. The concealed vertical rod mechanism integrates seamlessly into door frames while maintaining passage function for everyday use. Satin stainless steel construction resists corrosion in demanding environments. Designed for 84-inch door heights with a wide pushpad for intuitive operation. Dogging-free design ensures consistent emergency performance without manual overrides.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| SKU | 12-WD8615G-84-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
|
Physical Appearance
|
Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
|
Includes Cylinder(s)
|
No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
48" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Passage |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
43" to 48" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
84" |
>
