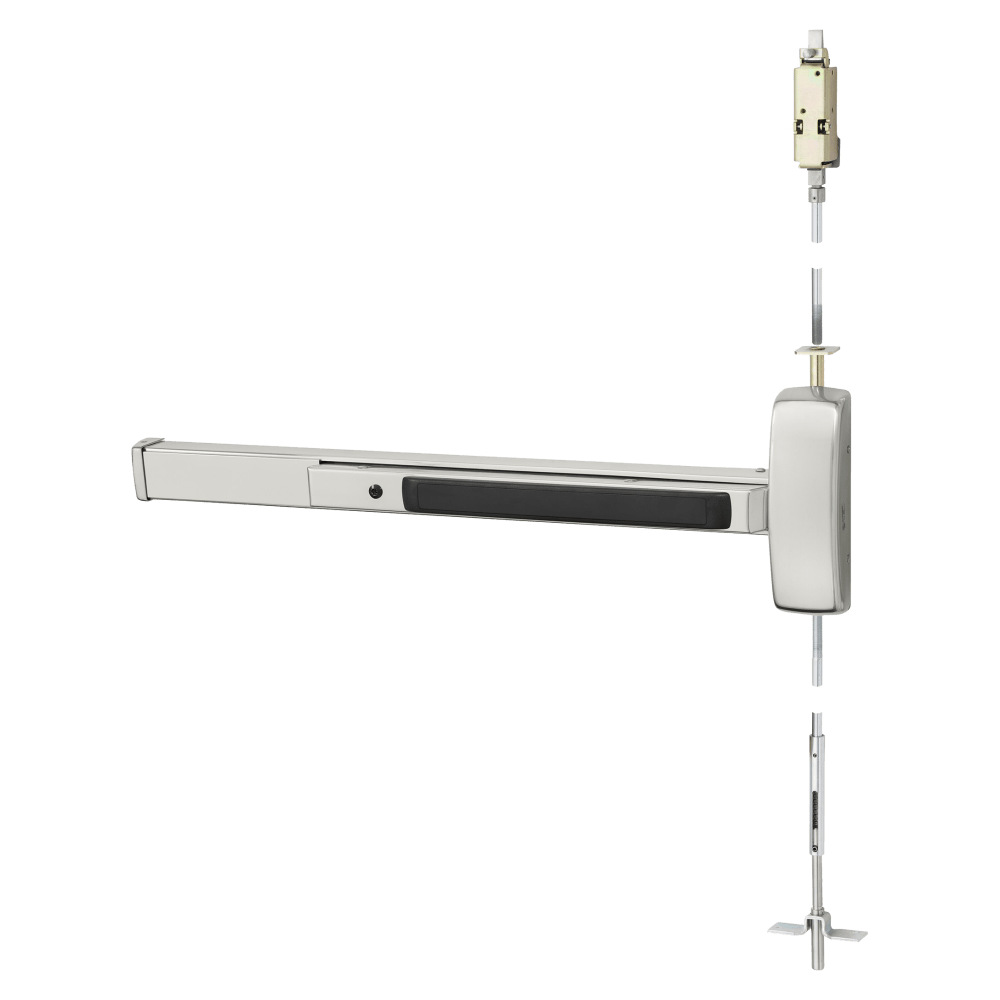

Sargent 12-WD8615G-96-US32D Fire Rated Concealed Vertical Rod Exit Device, Less Dogging, Passage Function, For 43-48 Inch Door, Satin Stainless Steel Finish

SARGENTSKU: 12WD8615G96US32DLHR
Handing: LHR - Left Hand Reverse
Price:
$2,356.18/ea
Available (3‑4 Weeks)
3-4 Weeks Lead Time

Related Hardware

Sargent 12-WD8615G-96-US32D Fire Rated Concealed Vertical Rod Exit Device, Passage Function, Less Dogging, Grade 1, For 43-48 Inch Door, Wide Stile Pushpad, 96 Inch Door Height, Satin Stainless Steel Finish

Sargent's Grade 1 fire-rated exit device integrates concealed vertical rods with passage-only operation, designed specifically for 43-48 inch doors at 96 inch heights. The wide stile pushpad delivers smooth, reliable activation while the absence of dogging functionality streamlines access control protocols. Finished in durable satin stainless steel, this device meets stringent fire safety codes while maintaining a clean architectural appearance in high-traffic commercial installations.

Features

  • Designed for standard width stile applications on wood doors
  • Concealed rods offer security
  • Single and double door applications
  • Specify NB- for less bottom rod
  • Devices are ANSI/BHMA A156.3 - Grade 1
  • UL10C (Fire) and UL305 (Panic) listed
Manufacturer  Sargent
SKU 12-WD8615G-96-US32D
Grade Grade 1
Origin USA
BAA Qualified
 Yes
Burglar Rated
 No
ADA Compliance
 No
Installation Commercial
Fire Rating
 3 Hours {A}
Limited Warranty 5 Years
UL Listing
 UL10C & UL305
ANSI ANSI/BHMA A156.3
Fire Rated
 Yes
Door Thickness
 1-3/4" - 2-1/4"
Physical Appearance Wide Stile Pushpad
Dogging Options
 Less Dogging
Includes Cylinder(s) No
Minimum Stile Size
 4-1/2"
Device Length
 48"
Cylinder Type
 Non-Keyed
Mechanical Function
 Passage

Reversible

 No
Device Type
 Concealed Vertical Rod
Door Material
 Wood
Includes Trim
 No
Trim Type
 Less Trim
Handing Left Hand Reverse or Right Hand Reverse
Door Width
 43" to 48"
Top Strike
 650
Strike Bottom
 606
Door Height
 96"
Product Cut Sheet
