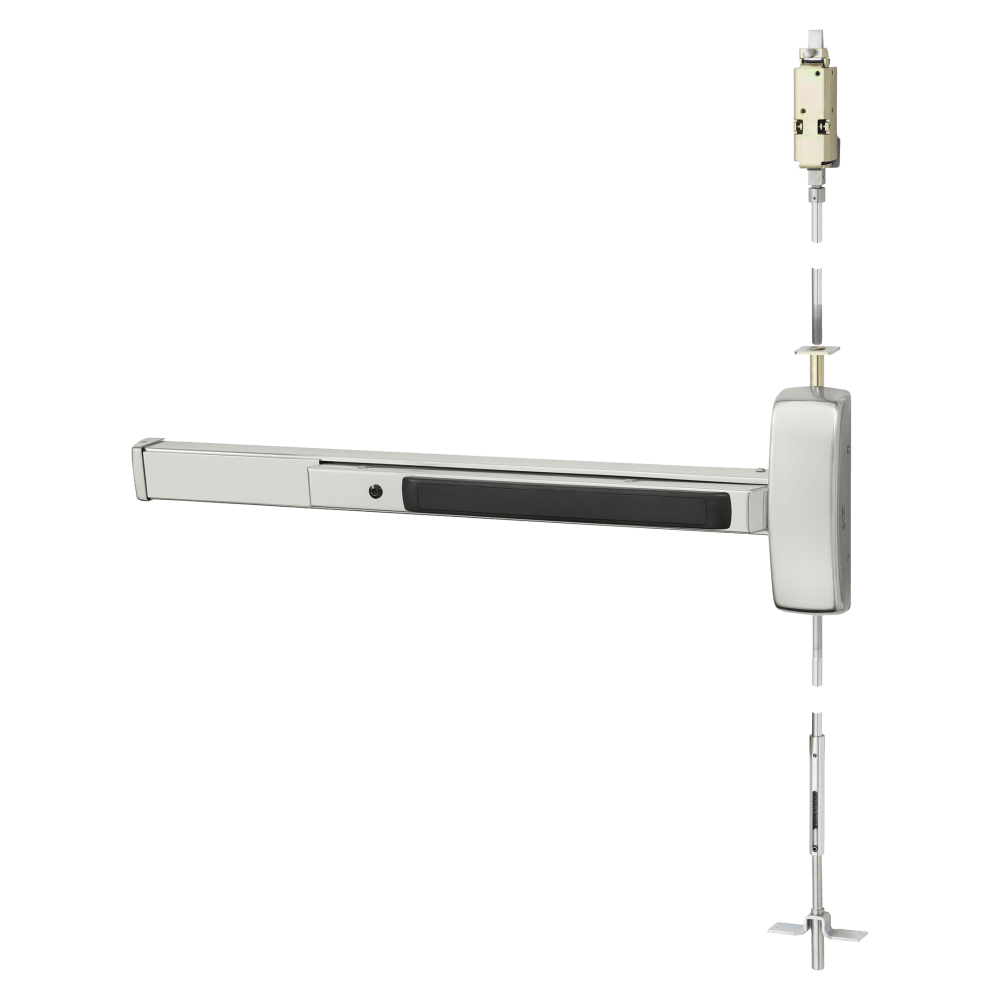

Sargent 12-WD8615J-84-US32D Fire Rated Concealed Vertical Rod Exit Device, 84 Inch Door Height, Passage Function, For 37-42 Inch Door, Less Dogging, Grade 1, Wide Stile Pushpad, Satin Stainless Steel Finish
This Grade 1 fire-rated exit device from Sargent delivers reliable emergency egress for mid-width commercial doors. The concealed vertical rod mechanism operates in passage function, activating the latch release when the wide stile pushpad is depressed. Engineered for 37-42 inch doors at standard 84 inch height, it features a satin stainless steel finish that resists corrosion in high-traffic environments. The dogging-free design ensures consistent security protocols. Ideal for facilities requiring certified life safety compliance without compromising aesthetic appeal.
Features
- Designed for standard width stile applications on wood doors
- Concealed rods offer security
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL10C (Fire) and UL305 (Panic) listed
| Manufacturer | Sargent |
| SKU | 12-WD8615J-84-US32D |
| Grade | Grade 1 |
| Origin | USA |
| BAA Qualified |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
| Installation | Commercial |
| Fire Rating |
3 Hours {A} |
| Limited Warranty | 5 Years |
| UL Listing |
UL10C & UL305 |
| ANSI | ANSI/BHMA A156.3 |
| Fire Rated |
Yes |
| Door Thickness |
1-3/4" - 2-1/4" |
|
Physical Appearance
|
Wide Stile Pushpad |
| Dogging Options |
Less Dogging |
|
Includes Cylinder(s)
|
No |
| Minimum Stile Size |
4-1/2" |
| Device Length |
42" |
| Cylinder Type |
Non-Keyed |
| Mechanical Function |
Passage |
|
Reversible |
No |
| Device Type |
Concealed Vertical Rod |
| Door Material |
Wood |
| Includes Trim |
No |
| Trim Type |
Less Trim |
| Handing | Left Hand Reverse or Right Hand Reverse |
| Door Width |
37" to 42" |
| Top Strike |
650 |
| Strike Bottom |
606 |
| Door Height |
84" |
>
