Product Cut Sheet
Description
Active

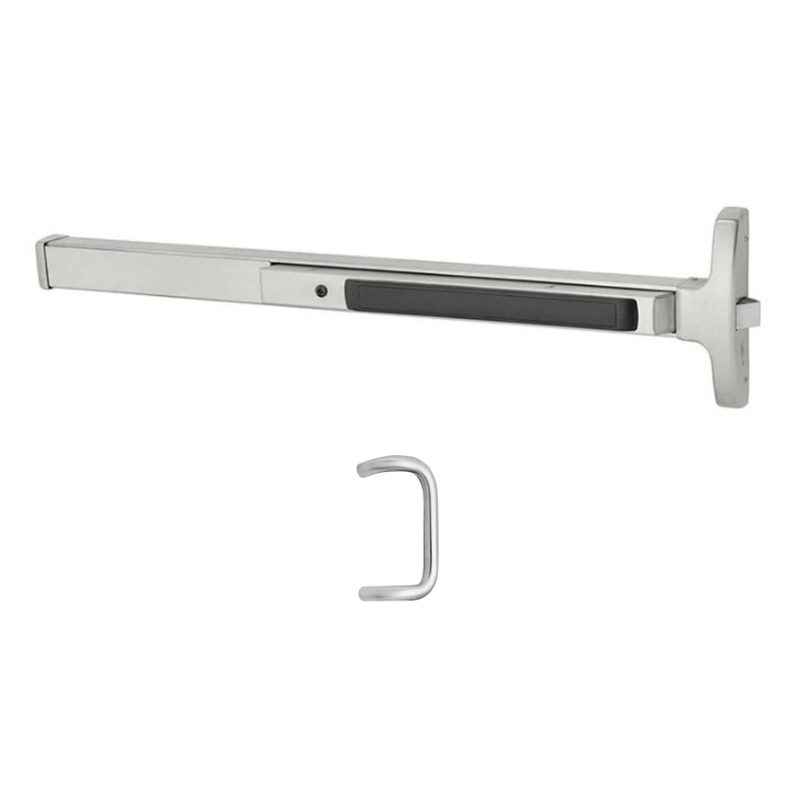

Sargent 5556-70-AD8504F-862-32D Narrow Stile Rim Exit Device For Aluminum Door, Electric Latch Retract, Request To Exit, Night Latch, 862 Dr Pull, 33-36" Dr, SFIC Less Cylinder, Hex Key Dogging, Grade 1, Satin Stainless Steel
The Sargent 5556-70-AD8504F-862-32D is a Grade 1 narrow stile rim exit device designed for aluminum doors measuring 33-36". It features an electric latch retraction mechanism, request-to-exit functionality, and a night latch. Equipped with an 862 door pull and hex key dogging, this model comes without a cylinder (SFIC less) and is finished in satin stainless steel for durability and a professional appearance.
Trim Function: 862 Pull
- Designed for narrow stile applications (e.g., aluminum frame full glass doors)
- Single and double doors with mullion
- Single point rim latching device
- Quiet operation and solid security
- Devices are ANSI/BHMA A156.3 - Grade 1
| Vendor | Assa Abloy |
| SKU | 5556-AD8504F 32D |
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| ANSI Number | 1 |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Physical Appearance | Narrow Stile Pushpad |
| Device Type | Rim |
| Device Lenght | 36" |
| Trim | 862 |
| Door Material | Aluminum |
| Door Thickness | 1-3/4" to 2-1/4" |
| Door Width | 33" to 36" |
| Cylinder | SFIC Less Core |
| Switch Type | Request to Exit |
| Electric Options | Electric Latch Retraction |
| Mechanical Function | Nightlatch |
| Handed | Yes |
| Fire Rated | Yes |
| Product Type | Rim Exit Devices |
