Product Cut Sheet
Description
Active

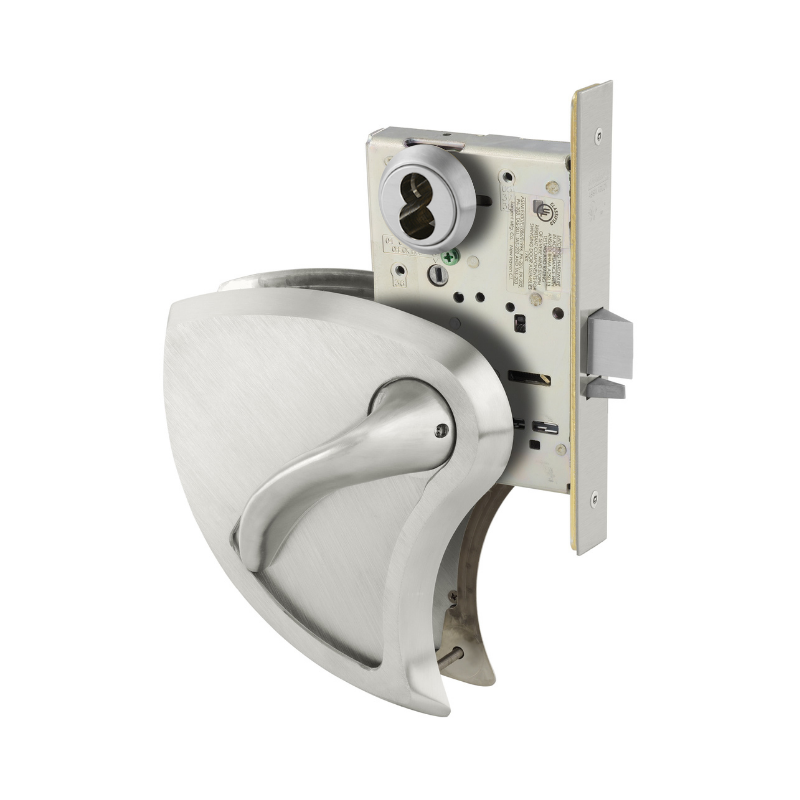

Sargent 60-8205-BHW-US32D Behavioral Health Office or Entry Function Mortise Lock, Key Retracts Latch, BHW Trim, LFIC Prep, Less Core, Grade 1, handing must be specified, 630 Satin Stainless Steel
The Sargent 60-8205-BHW-US32D Behavioral Health Mortise Lock is engineered for office or entry applications, featuring a key-operated latch retraction. It includes BHW trim, is prepared for LFIC installation, comes without a core, and complies with Grade 1 standards. The lock, handing must be specified, and finished in 630 satin stainless steel.
- Office or Entry Function:
- Key outside retracts latchbolt, also locks & unlocks outside trim
- Trim inside always retracts latchbolt, trim outside remains locked
- Thumbturn inside locks & unlocks outside trim
- Auxiliary deadlatch
- Key outside retracts latchbolt, also locks & unlocks outside trim
- Uses standard mortise prep
- LFIC Less Core
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
05 Office or Entry Function
|
| ANSI Function |
F07 - Storeroom/Exit
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
LFIC Less Core
|
| Handing | Left Hand, Left Hand Reverse, Right Hand, Right Hand Reverse |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
