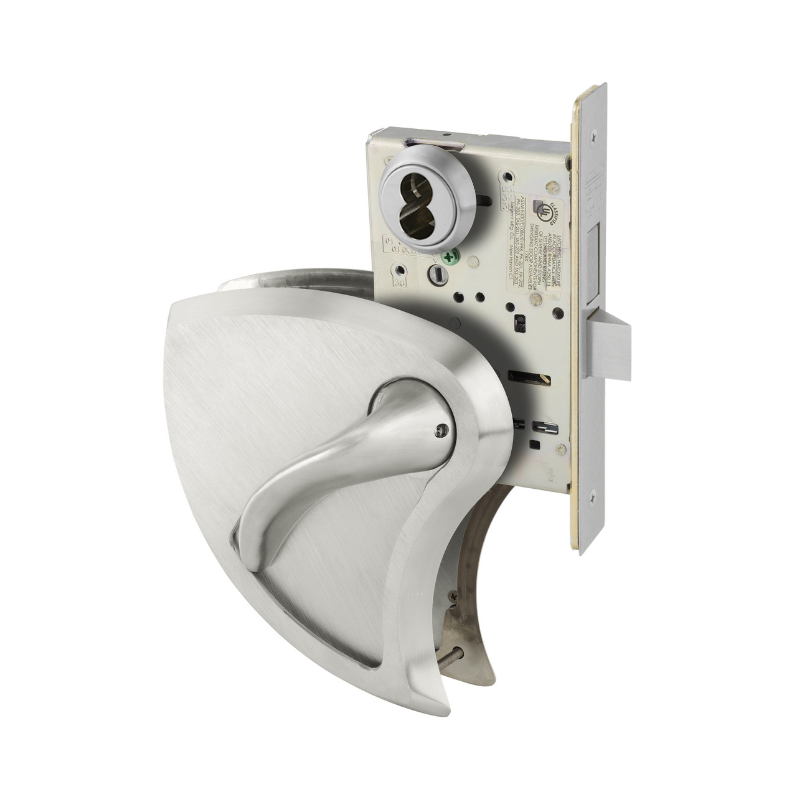

Sargent 60-8225-BHW-US32D Behavioral Health Dormitory or Exit Function Mortise Lock, BHW Trim, LFIC, Less Core, Grade 1, Field Reversible, 630 Satin Stainless Steel
The Sargent 60-8225-BHW-US32D is a Grade 1 Behavioral Health mortise lock designed for dormitory or exit functions. It includes BHW trim, less core LFIC, and is field reversible. Finished in satin stainless steel (630), this lock ensures durability and versatility for demanding applications.
- Dormitory or Exit Function:
- Key outside or thumbturn inside retracts and projects deadbolt
- Trim from either side retracts latchbolt, when the deadbolt is in the retracted position
- Trim outside is locked, when the deadbolt is projected
- When deadbolt is projected, Trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
- Key outside or thumbturn inside retracts and projects deadbolt
- Uses standard mortise prep
- LFIC Less Core
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
25 Dormitory or Exit Function
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
LFIC Less Core
|
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
