Product Cut Sheet
Description
Active

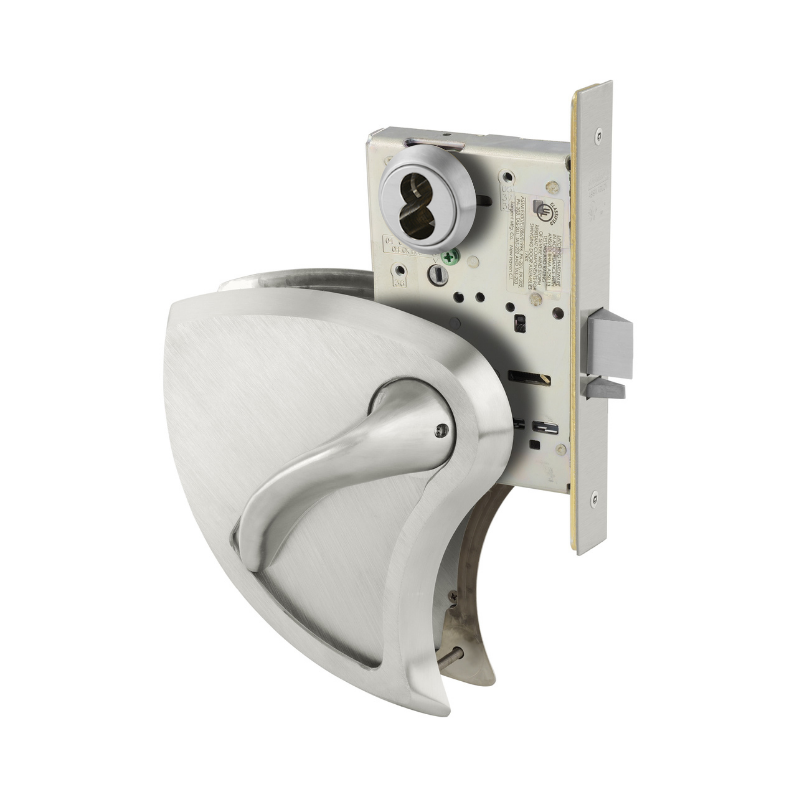

Sargent 60-8237-BHW-US32D Behavioral Health Classroom Function Mortise Lock, Key Retracts Latch, BHW Trim, LFIC Prep, Less Core, Grade 1, Field Reversible, 630 Satin Stainless Steel
This Sargent 60-8237-BHW-US32D Behavioral Health Mortise Lock features a classroom function with key latch retraction, BHW trim, and is prepared for LFIC installation without core. It meets Grade 1 standards, offers field reversibility, and comes in durable 630 satin stainless steel.
- Classroom Function:
- Key outside retracts latchbolt, also locks & unlocks outside trim
- Trim inside always retracts latchbolt
- Auxiliary deadlatch
- Key outside retracts latchbolt, also locks & unlocks outside trim
- Uses standard mortise prep
- LFIC Less Core
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
37 Classroom Exit Function
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
LFIC Less Core
|
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
