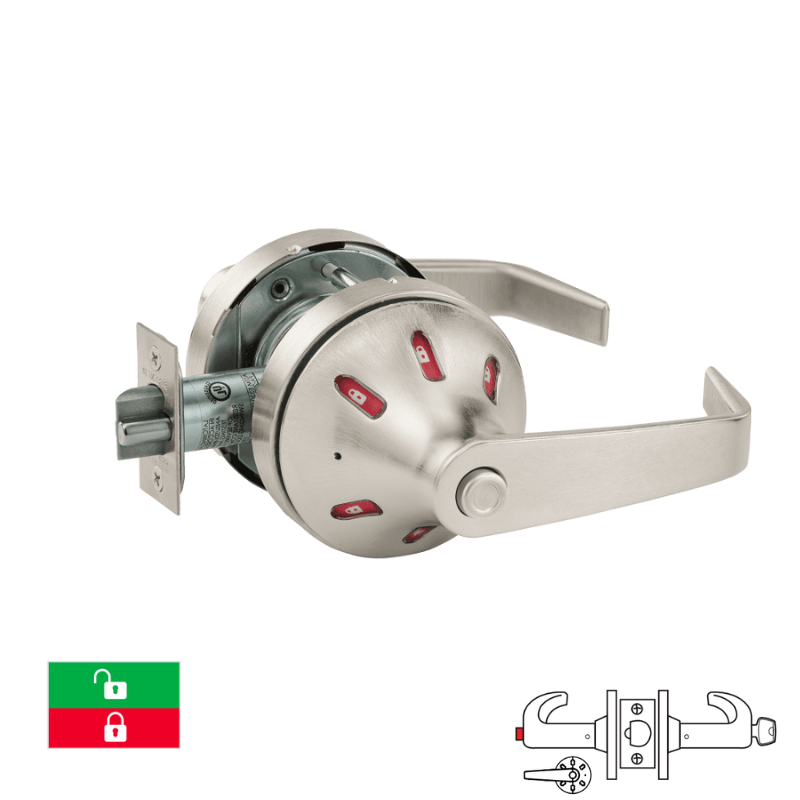

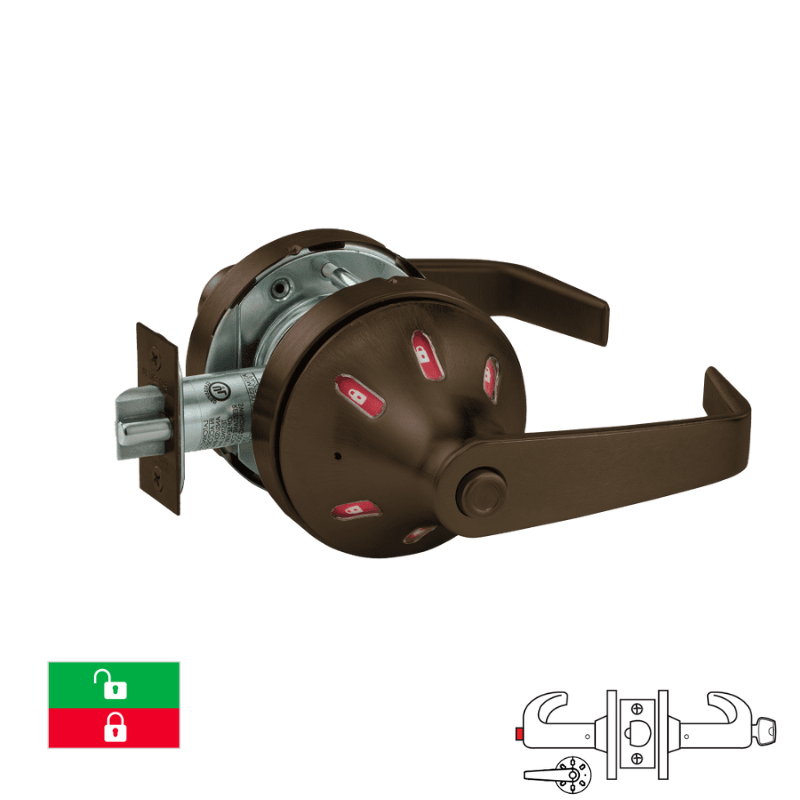

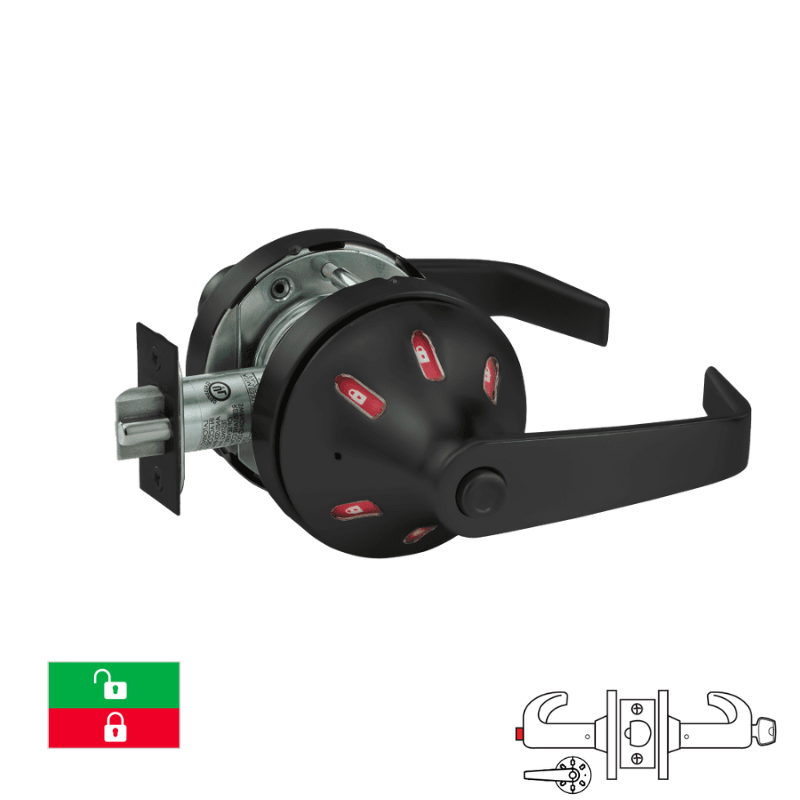

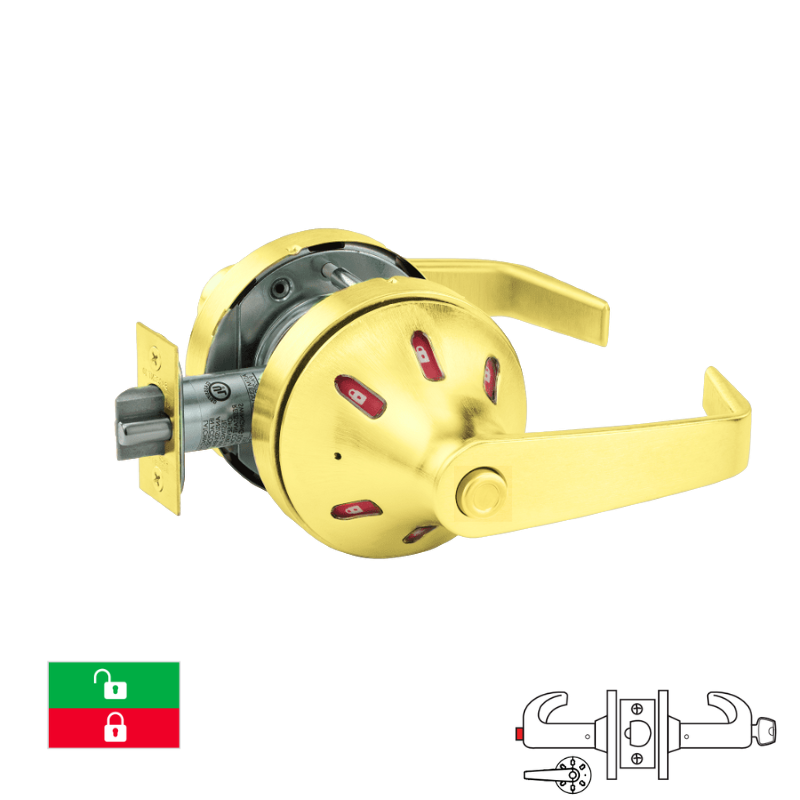

Sargent 60-V03-10XG44-VSLL Service Station Cylindrical Indicator Lock, Inside Only Visual Indicator

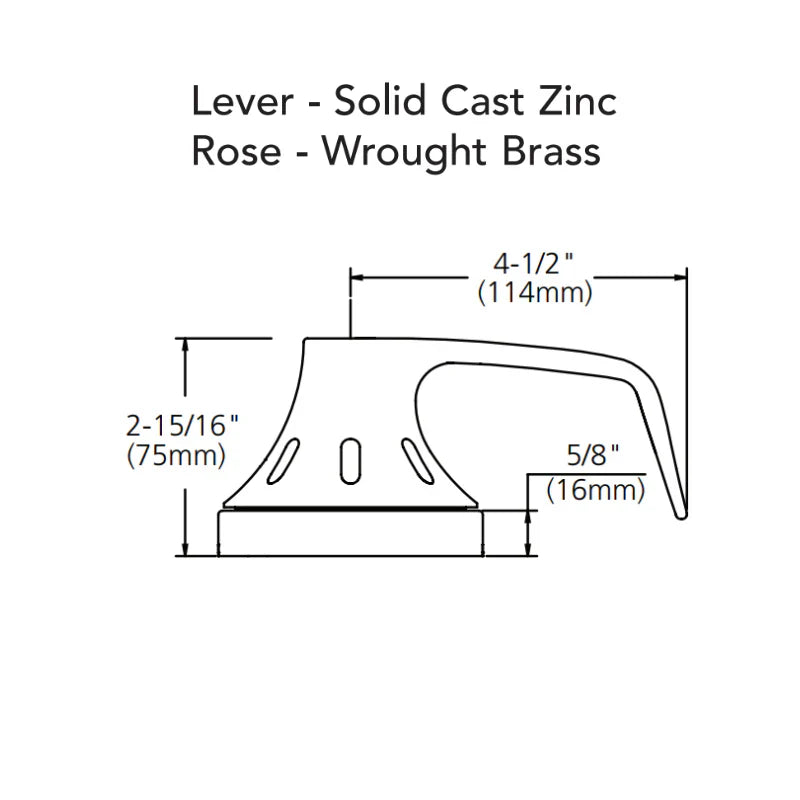

Sargent 60-V03-10XG44-VSLL Service Station Function Cylindrical Lock,  Visual Indicator Trim Inside Only, Green/Red, LFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, 2 3/4 Backset, 4 7/8 Strike

Sargent's 60-V03-10XG44-VSLL cylindrical lock delivers Grade 1 security for service station applications with an integrated visual indicator system. The inside-only trim features a lever design with VSL rose configuration, displaying green and red status indicators for occupancy monitoring. Built to LFIC standards with a 2 3/4" backset and 4 7/8" strike, this lock operates without a core installed, making it ideal for facilities requiring quick access control and clear visual feedback on room status.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
