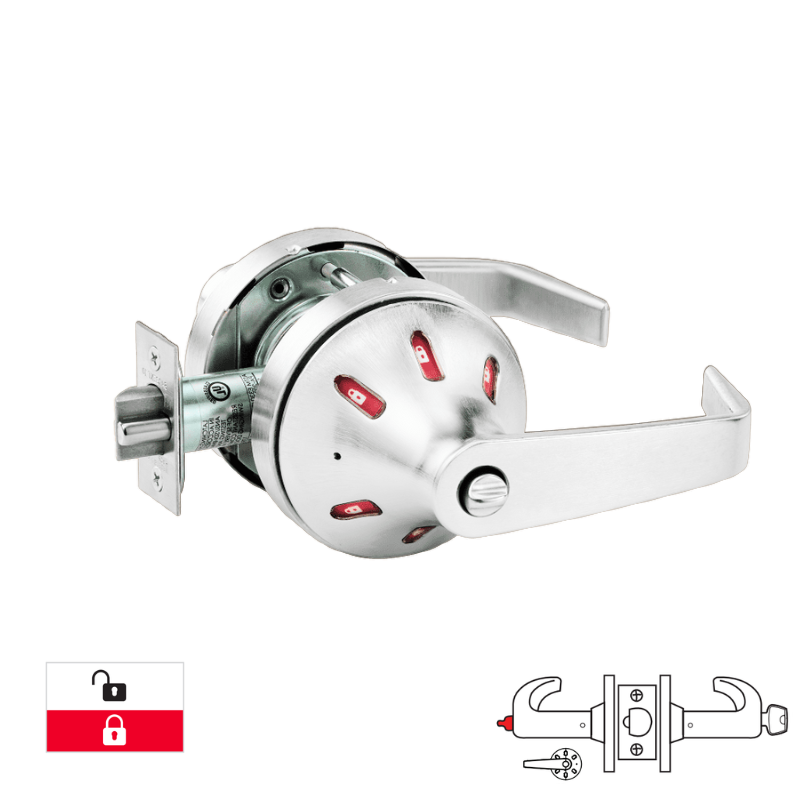

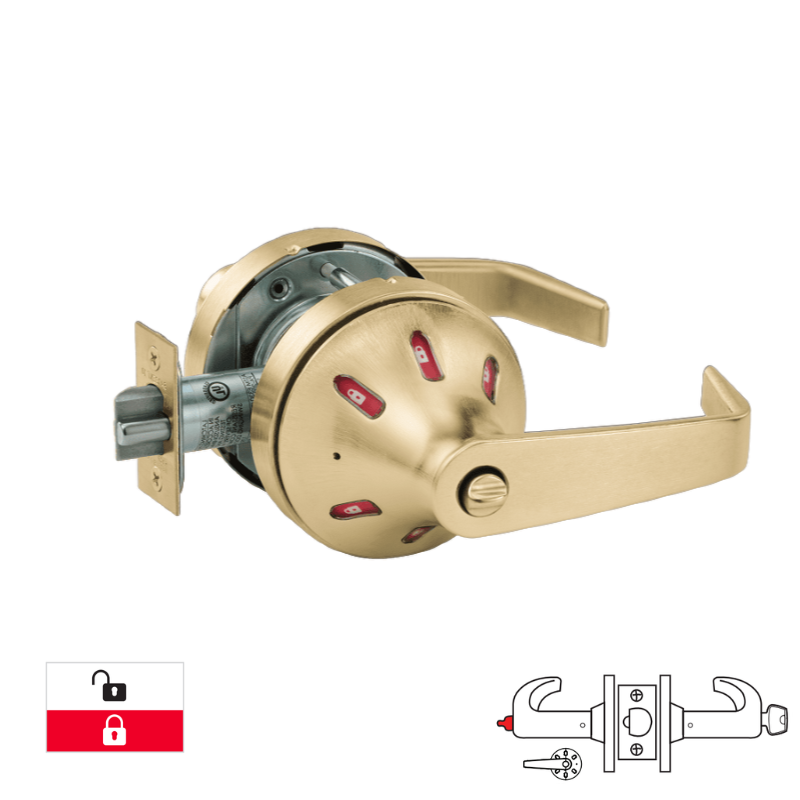

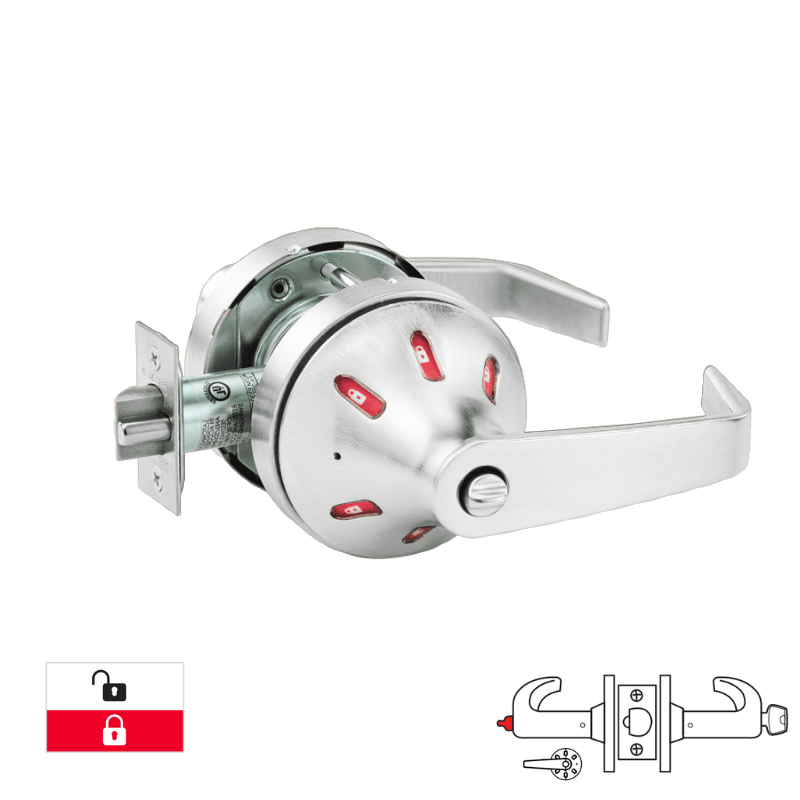

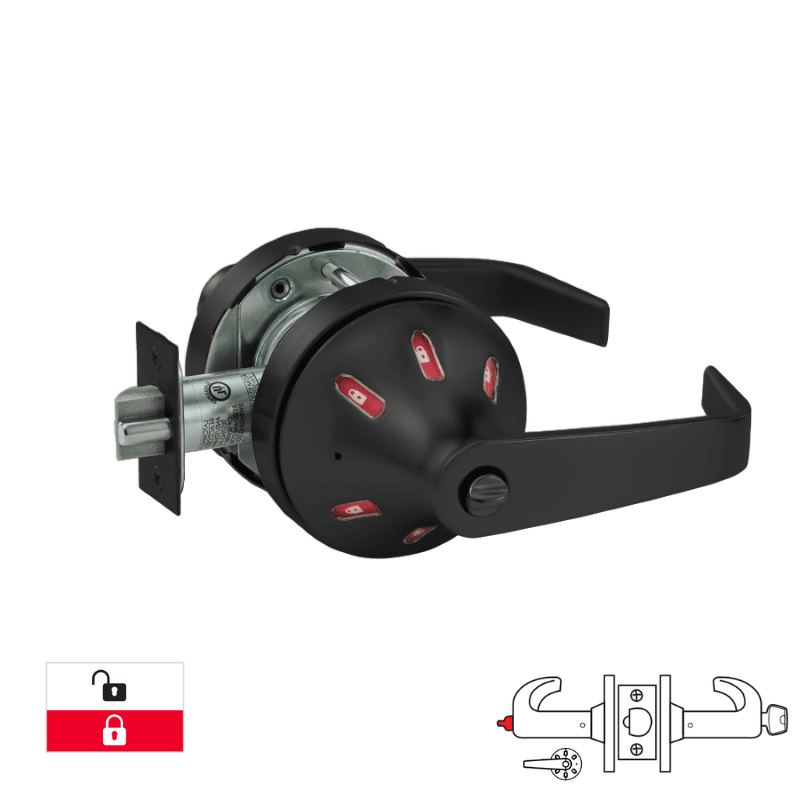

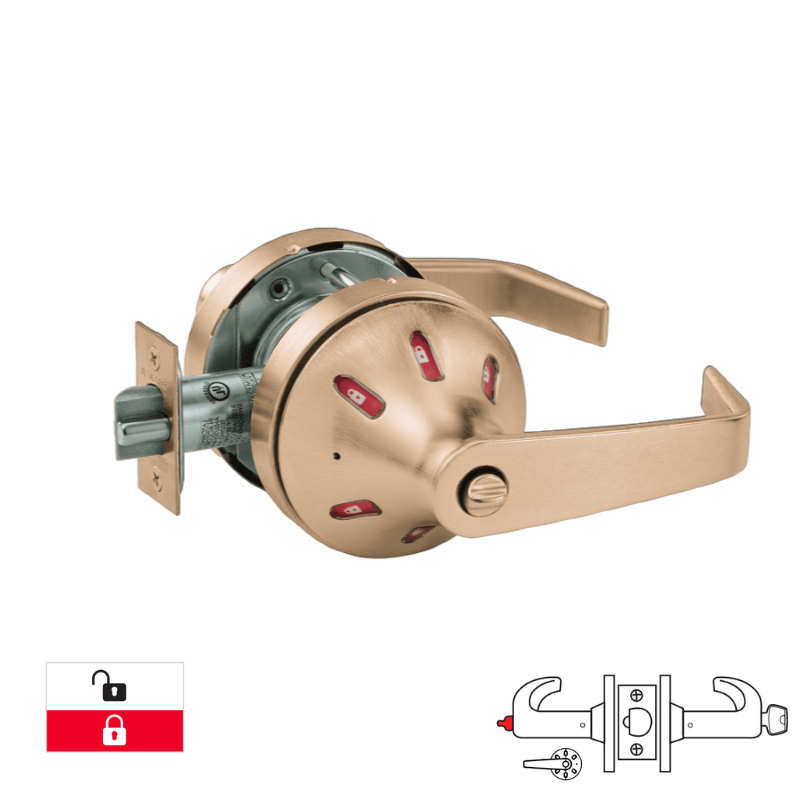

Sargent 60-V06-10XG05-VSLL Office Function Cylindrical Indicator Lock, VSLL Trim Inside Only, White/Red, LFIC Less Core

Sargent 60-V06-10XG05-VSLL Office Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1

Sargent 60-V06-10XG05-VSLL Office Function Cylindrical Lock features a "VSL" rose and an "L" lever design with a visual indicator trim visible only from the inside. It includes a 2 3/4-inch backset, a 4 7/8-inch strike, and is Grade 1 rated. This LFIC model is sold without a core for flexible installation options.

Entrance or Office Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push/turn button in inside lever

• Push button released by key outside or lever inside
• Turn button must be released manually
• Key retracts latch when outside lever is locked
• ANSI/BHMA F109

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
