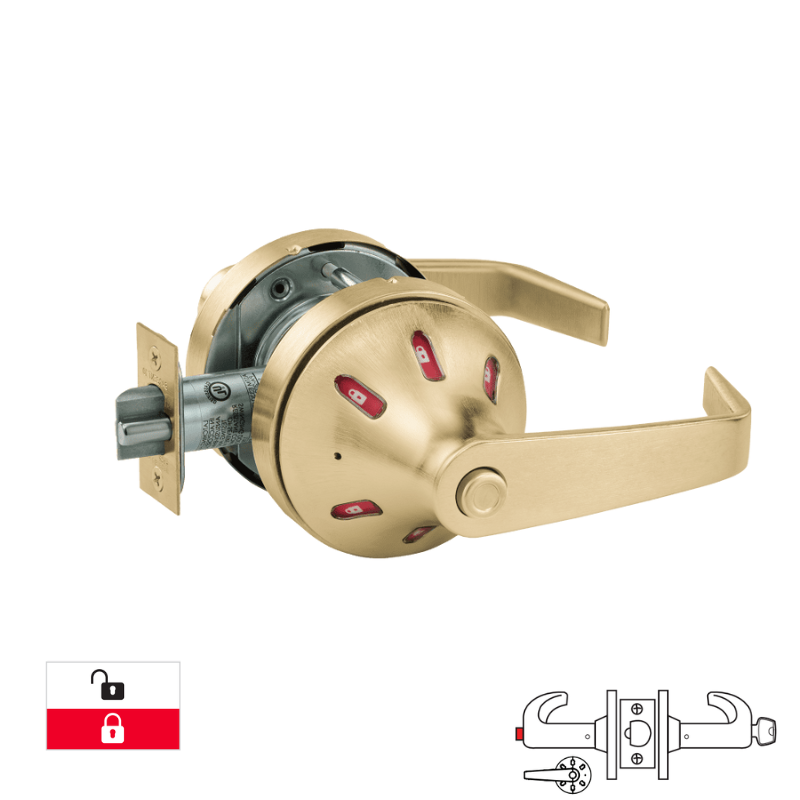

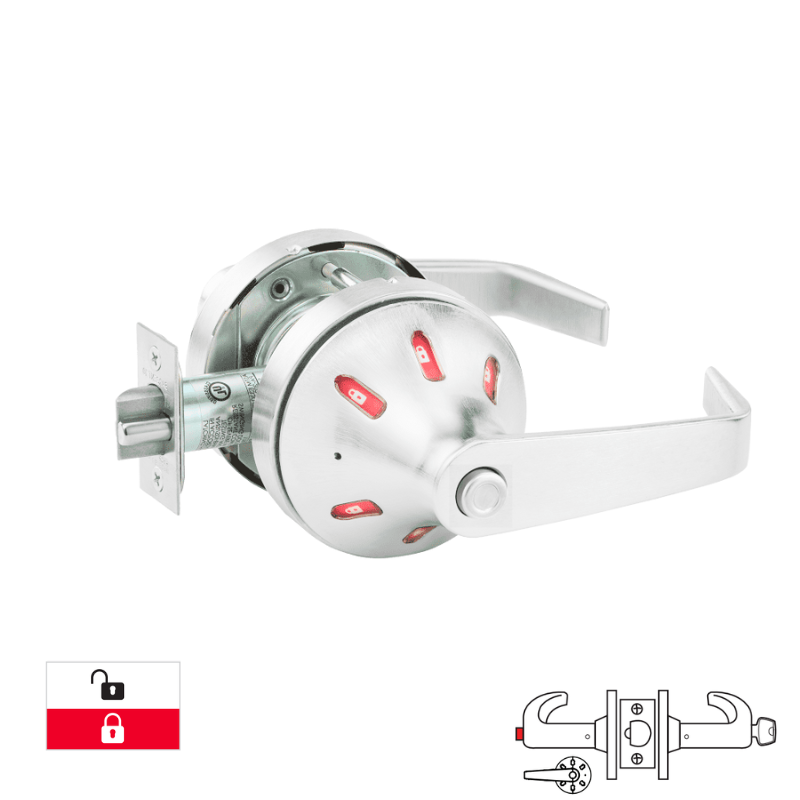

Sargent 60-V06-10XG24-VSLL Entrance or Office Function Cylindrical Lock, White/Red, 2 3/4 Backset, 4 7/8 Strike, Grade 1, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, LFIC, Less Core

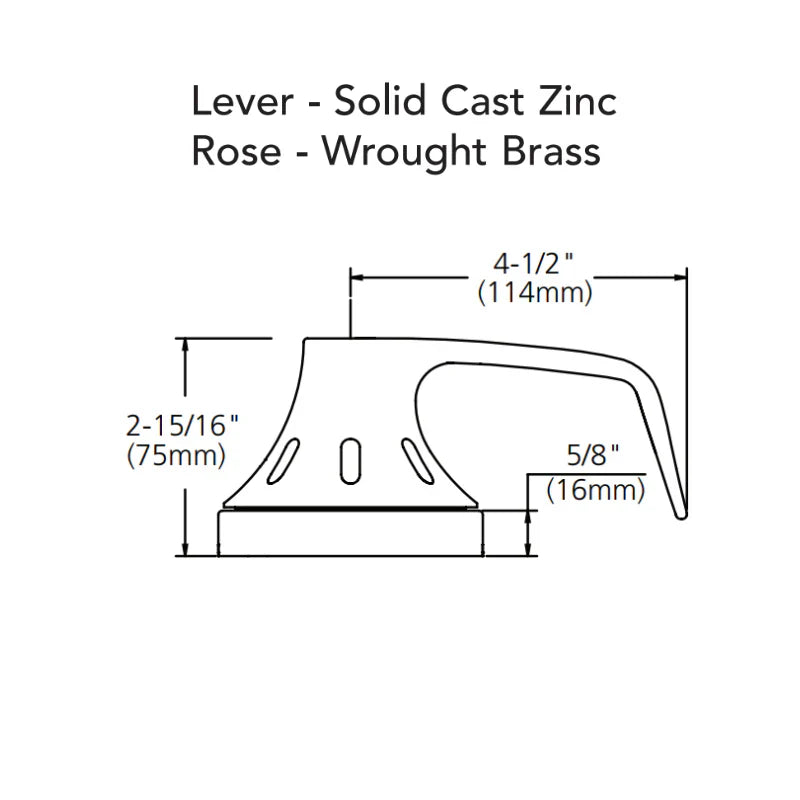

Sargent 60-V06-10XG24-VSLL cylindrical lock engineered for entrance and office applications. Features Grade 1 security with deadlocking latch mechanism, allowing independent control of inside and outside levers. The push-button release on the inside lever locks the outside lever while remaining accessible via key or inside lever manipulation. Visual indicator trim provides at-a-glance occupancy status from inside only. Configured with 2 3/4" backset, 4 7/8" strike, VSL rose, and L lever design. LFIC compatible, less core. Meets ANSI/BHMA F82A standards for commercial-grade performance and reliability.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Push button released by key or turning inside lever
- Closing door does not unlock outside lever or release button
- Key in outside lever retracts latch when outside lever is locked and releases inside push button
- ANSI/BHMA F82A
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
