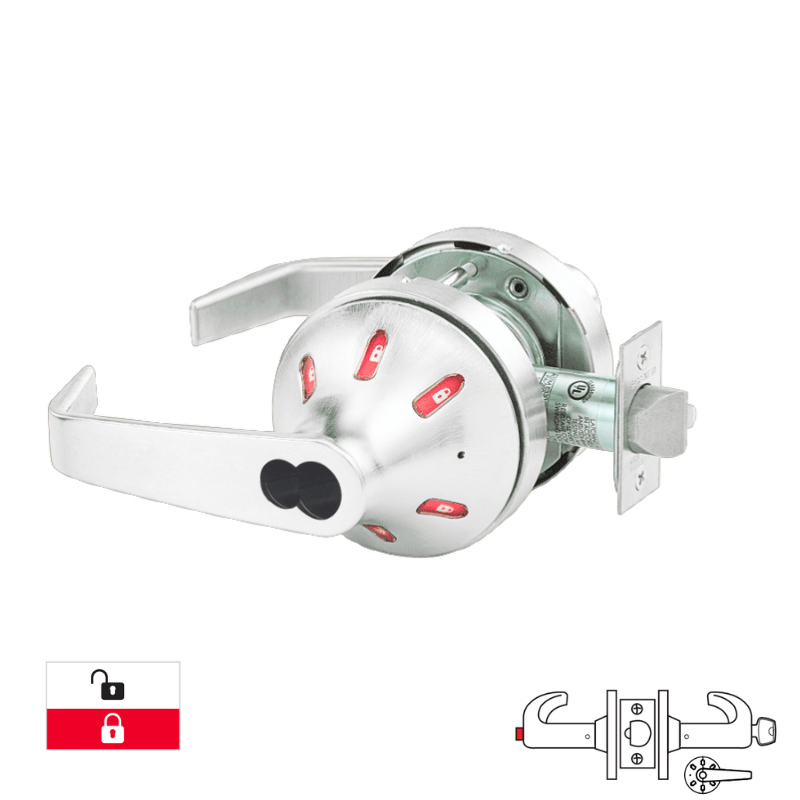

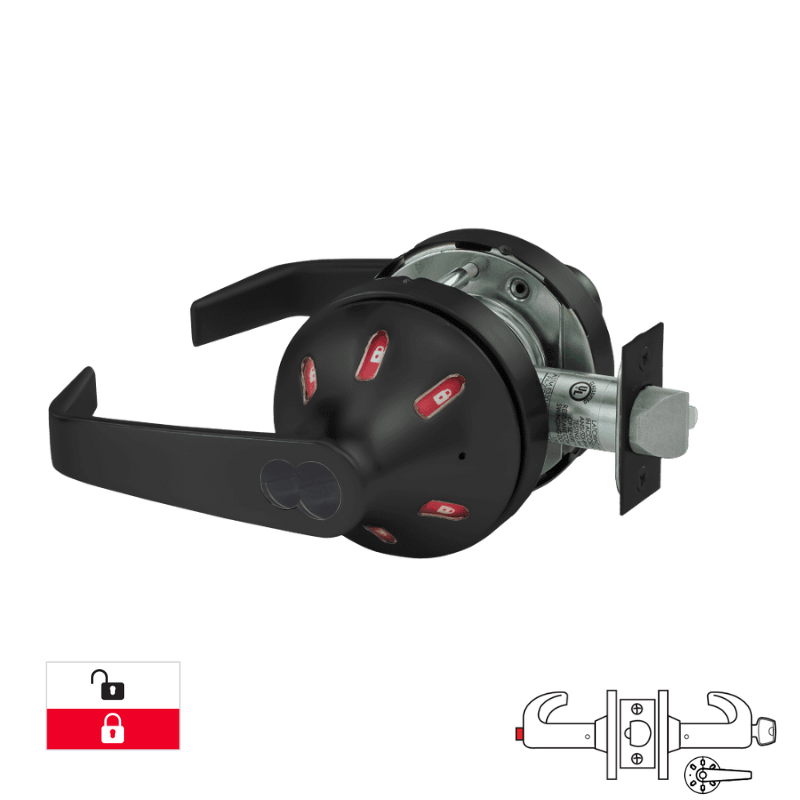

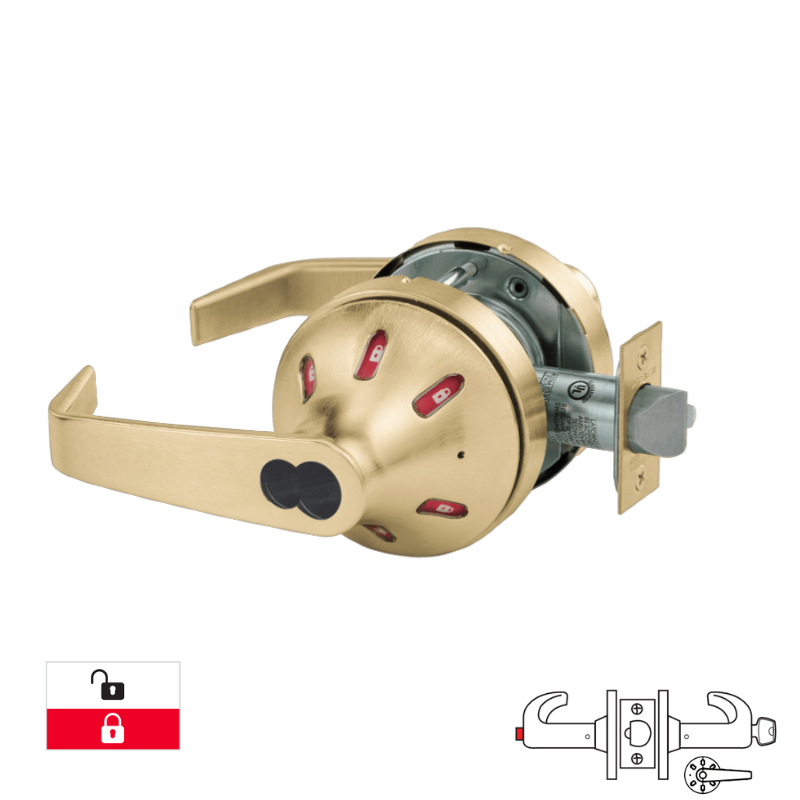

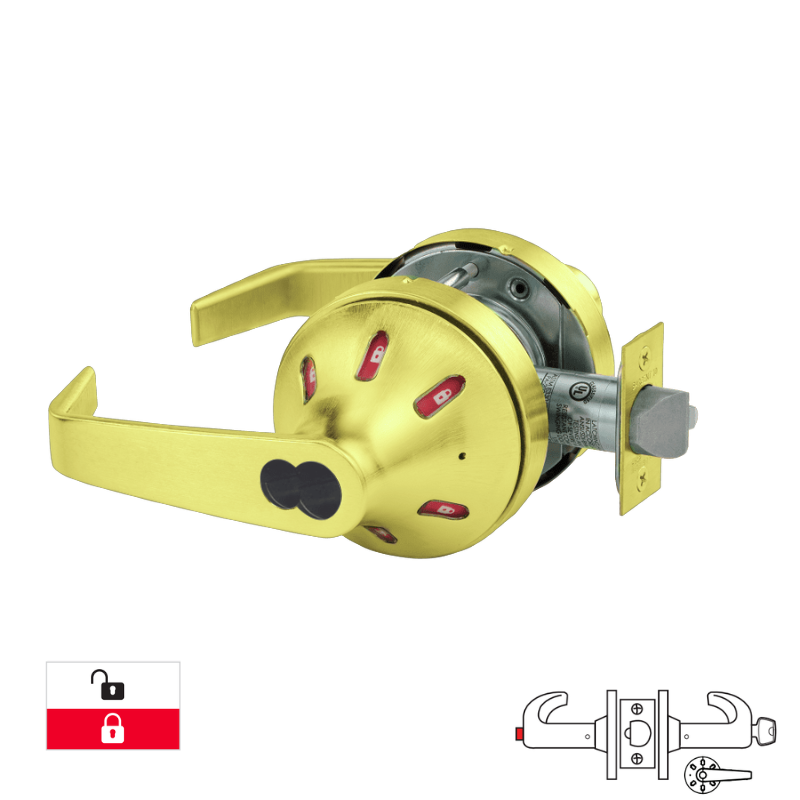

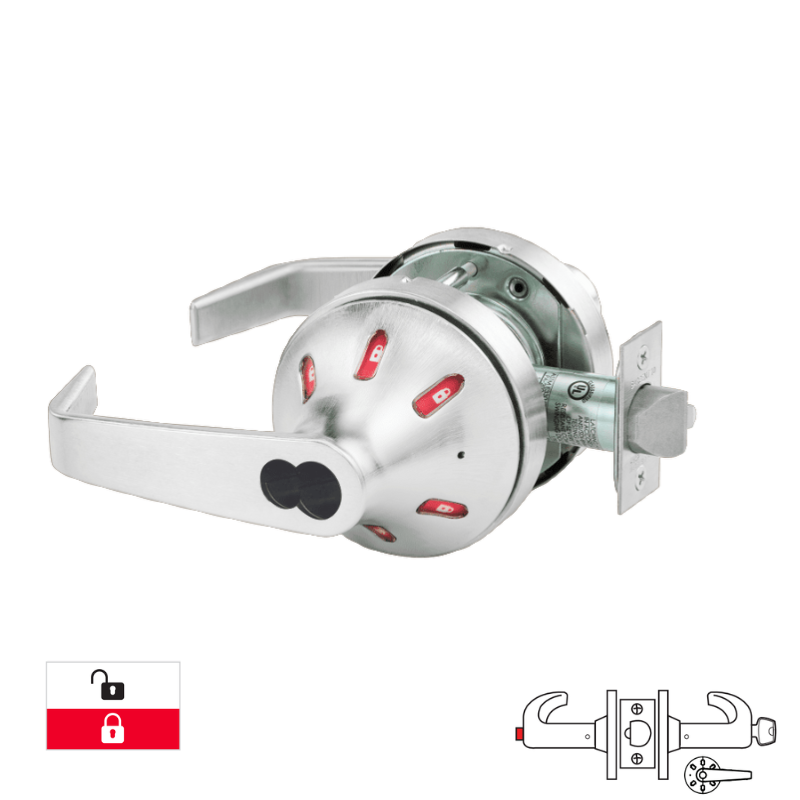

Sargent 60-V60-10XG44-VSLL Service Station Cylindrical Indicator Lock, Outside Only Visual Indicator

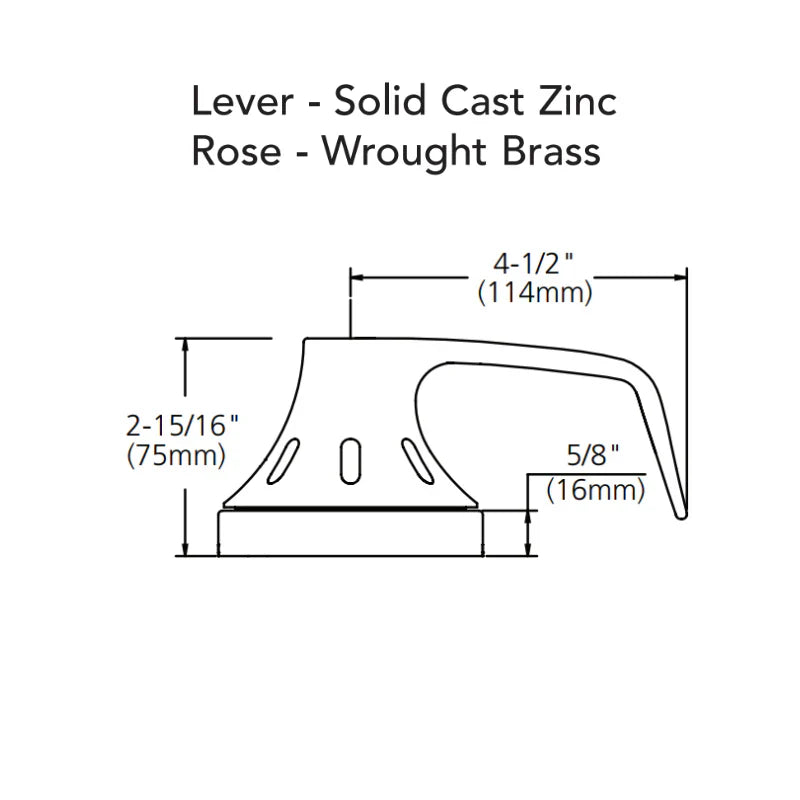

Sargent 60-V60-10XG44-VSLL Service Station Function Cylindrical Lock, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, White/Red

Sargent 60-V60-10XG44-VSLL Grade 1 cylindrical lock engineered for service station applications requiring secure access control. Features a 2 3/4" backset with 4 7/8" strike plate compatibility, LFIC (Less Core) design for master key flexibility, and visual indicator trim mounted on the outside only. The "L" lever design paired with "VSL" rose provides ergonomic operation, while the white and red visual indicator clearly communicates occupancy status. Ideal for high-traffic commercial environments demanding durability and reliability.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
