Product Cut Sheet
Description
Active

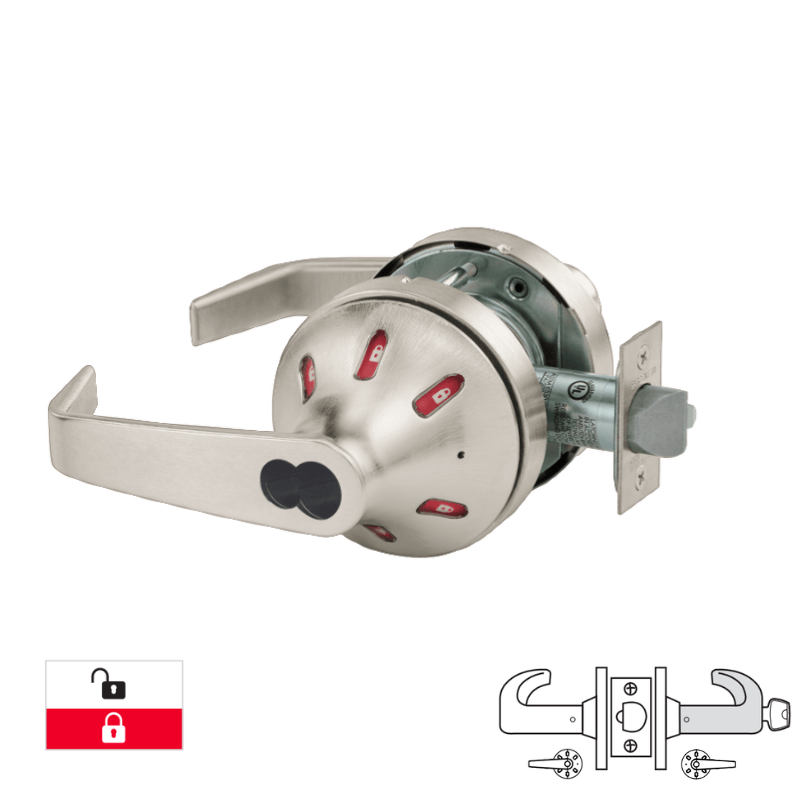

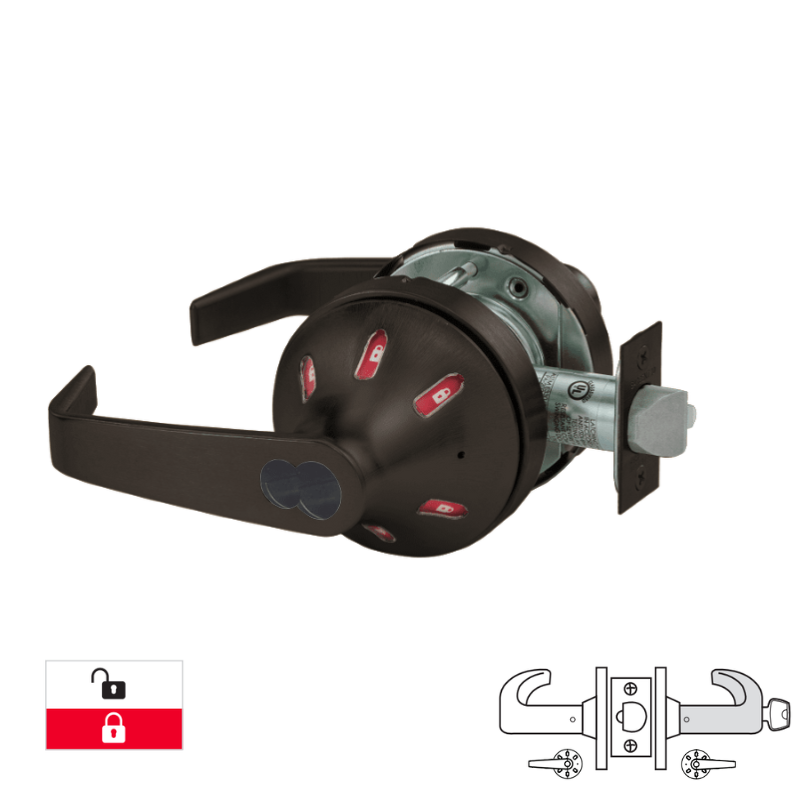

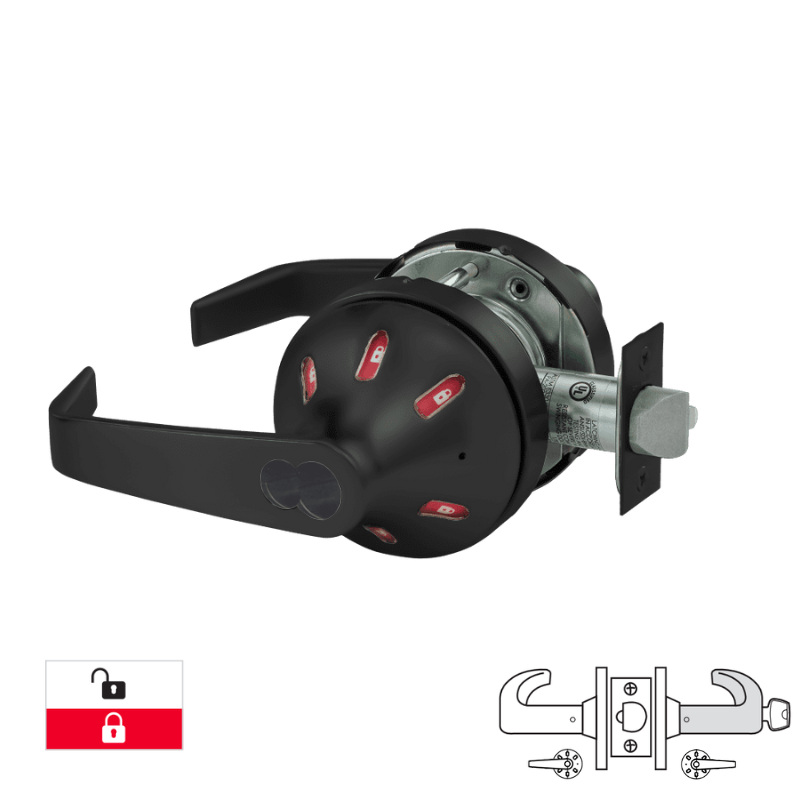

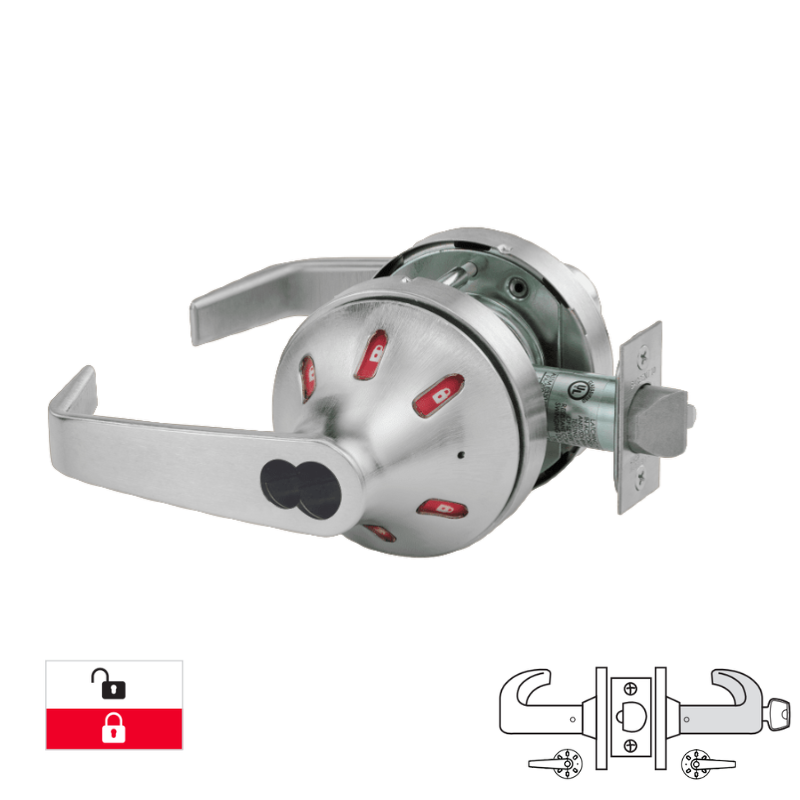

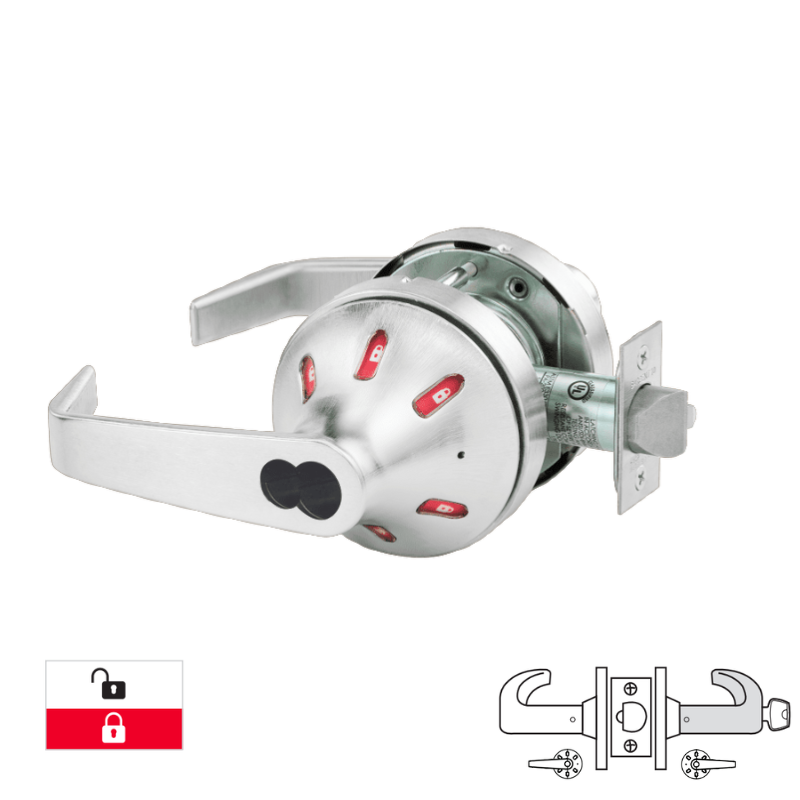

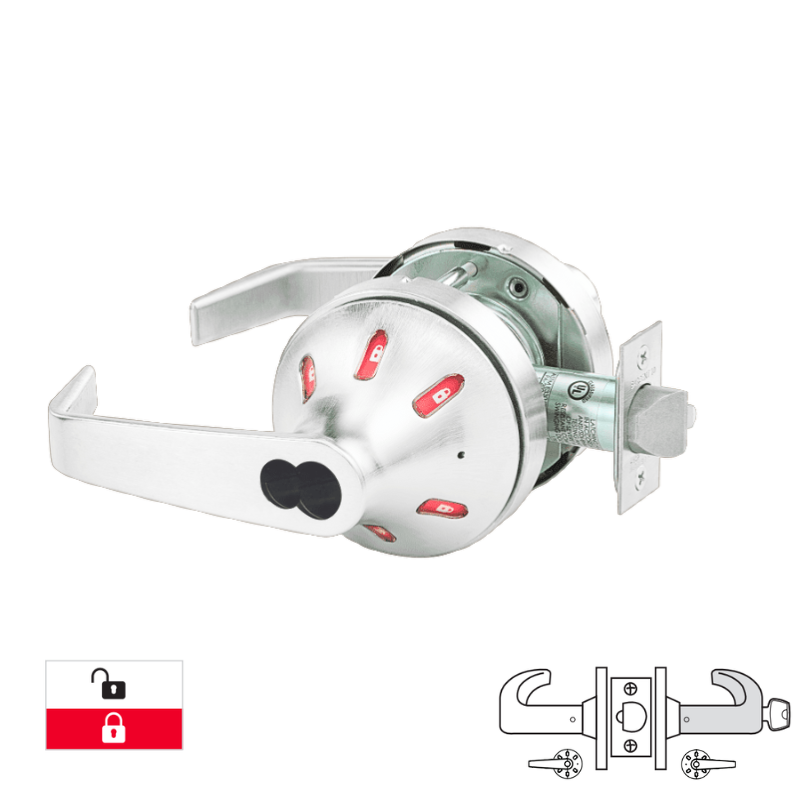

Sargent 60-V66-10XG04-VSLL Storeroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Both Sides, White/Red, 2 3/4 Backset, 4 7/8 Strike, LFIC, Less Core, Grade 1
The Sargent 60-V66-10XG04-LL is a Grade 1 storeroom cylindrical lock featuring a "VSL" rose and an "L" lever design. It includes visual indicator trims on both interior sides in white and red, with a 2 3/4" backset and a 4 7/8" strike plate. This lock is LFIC compatible and is supplied without a core.
Storeroom or Closet Function:
- Deadlocking latch
- Latch by lever inside or key outside
- Outside lever locked at all times
Double Indicator:
| Option Code | Outside | Inside | Color |
| V33 | Indicator Trim | Indicator Trim | Green/Red - Icon |
| V66 | Indicator Trim | Indicator Trim | White/Red - Icon |
| V77 | Indicator Trim | Indicator Trim | Green/Red - Icon |
| V88 | Indicator Trim | Indicator Trim | White/Red - Icon |
| Manufacturer | Sargent |
| SKU | 60-V66-10XG04 VSLL |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Application | Indicator with Icons |
| Function |
04-Storeroom or Closet
|
| Function Family | Privacy |
| Lever/Knob Design |
L Lever
|
| Rose/Escutcheon Design |
VSL Rose
|
| Cylinder Type |
LFIC Disposable Construction Core
|
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
