Product Cut Sheet
Description
Active

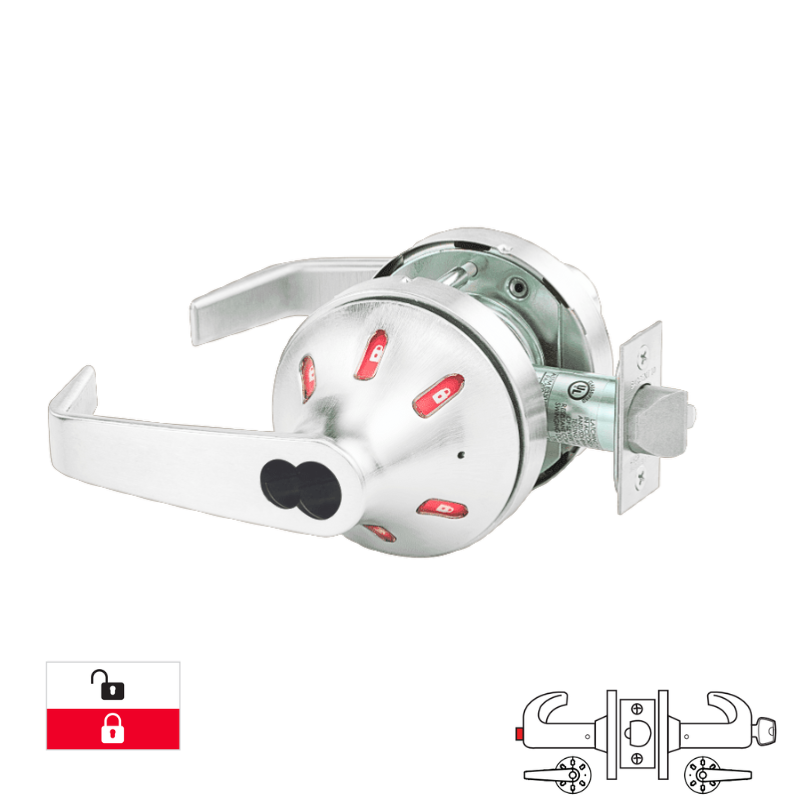

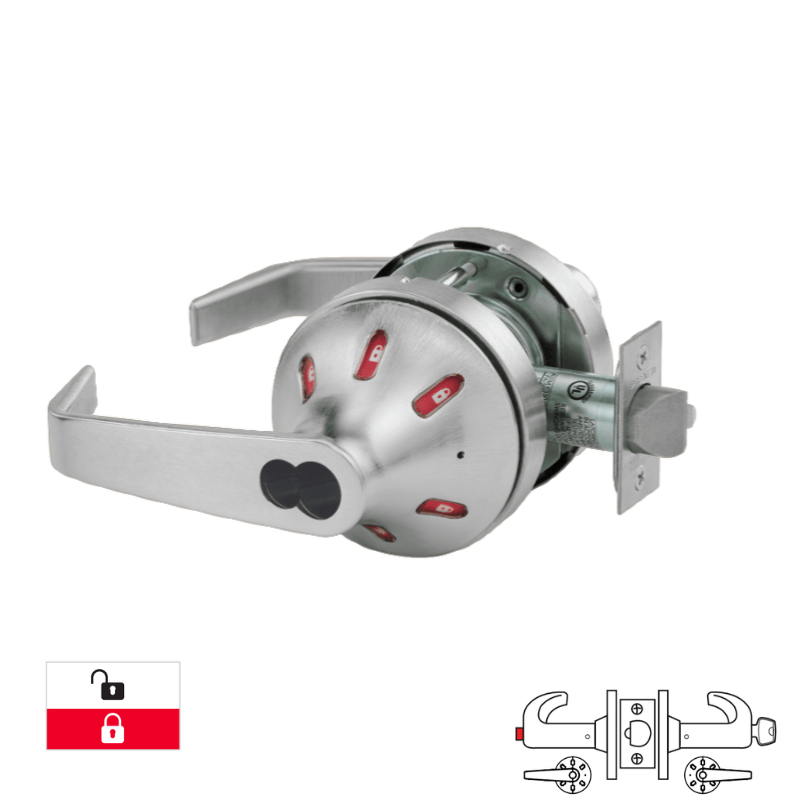

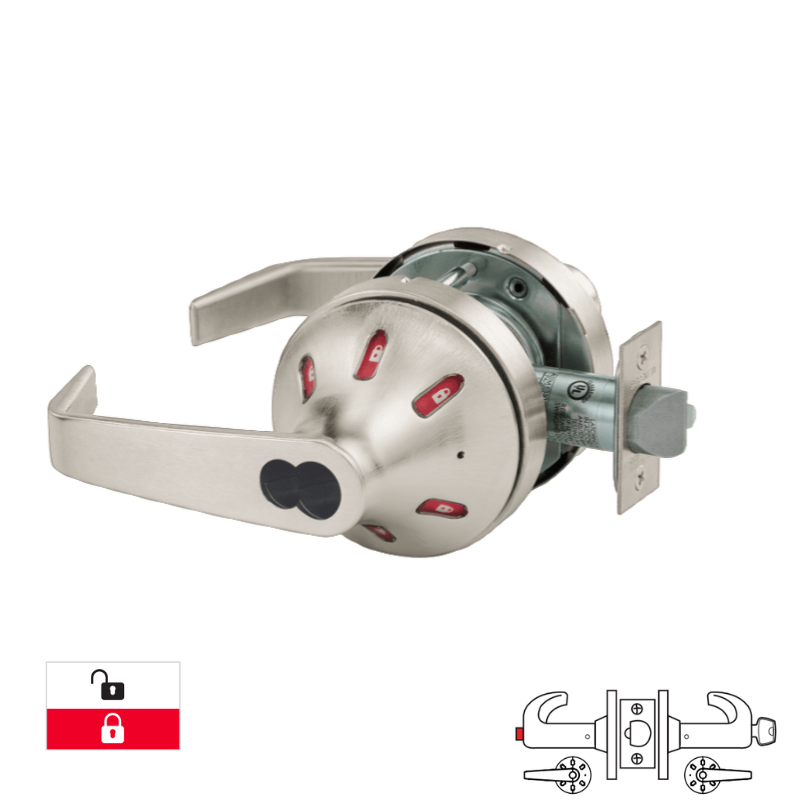

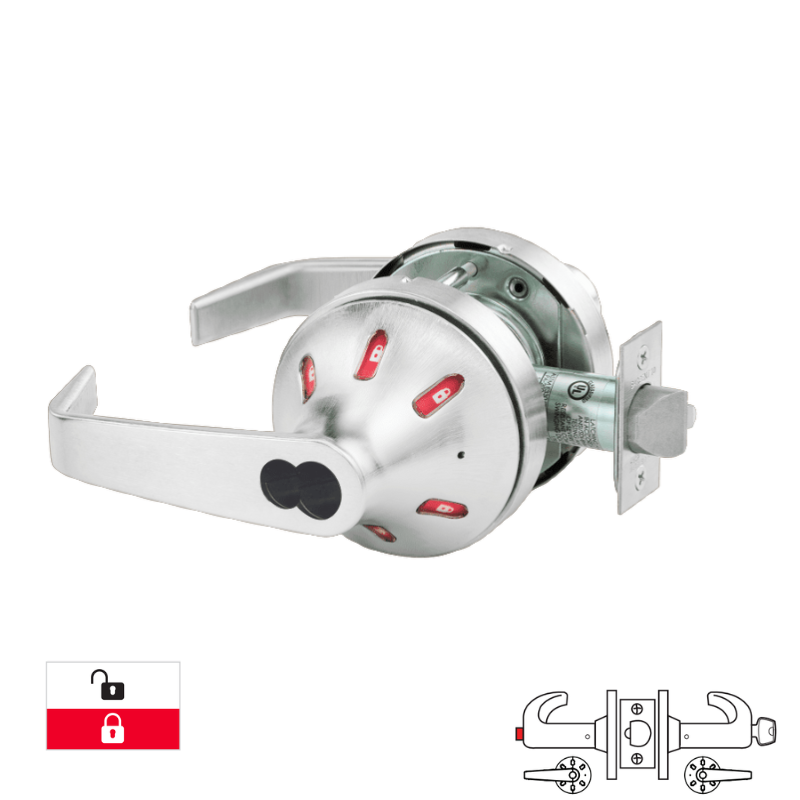

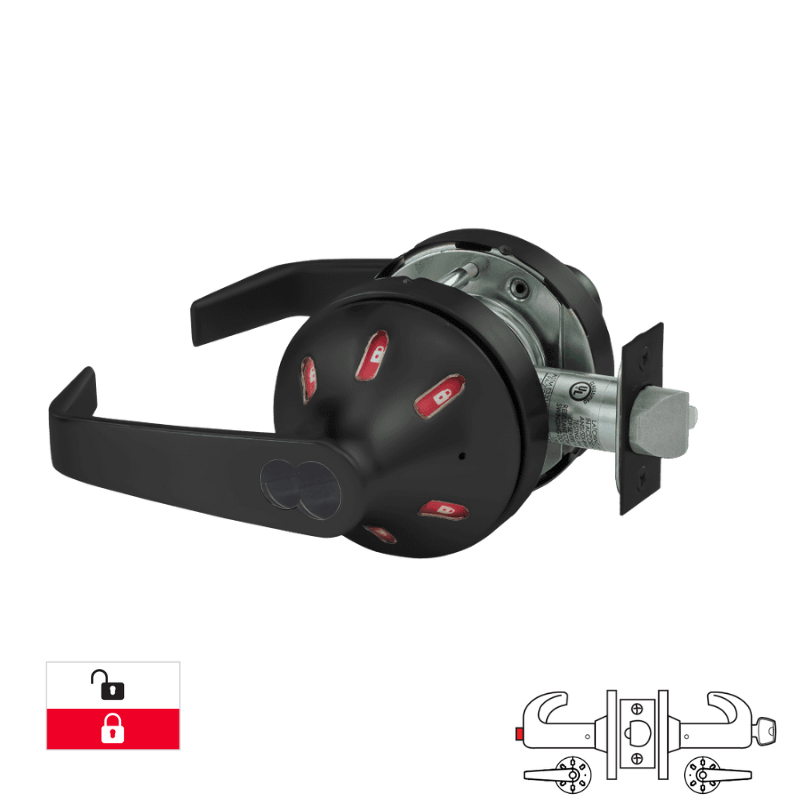

Sargent 60-V66-10XG24-VSLL Entrance or Office Function Cylindrical Lock, LFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Sides, White/Red, 2 3/4 Backset, 4 7/8 Strike
Sargent 60-V66-10XG24-VSLL Grade 1 cylindrical lock engineered for entrance and office applications. Features LFIC (Less Core) design with visual indicator trim on both sides—white and red indicators provide immediate occupancy status. "VSL" rose and "L" lever configuration deliver reliable operation and professional aesthetics. Configured with 2 3/4" backset and 4 7/8" strike for standard door preparations. Meets commercial-grade security and durability standards for high-traffic institutional environments.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Push button released by key or turning inside lever
- Closing door does not unlock outside lever or release button
- Key in outside lever retracts latch when outside lever is locked and releases inside push button
- ANSI/BHMA F82A
Double Indicator:
| Option Code | Outside | Inside | Color |
| V33 | Indicator Trim | Indicator Trim | Green/Red - Icon |
| V66 | Indicator Trim | Indicator Trim | White/Red - Icon |
| V77 | Indicator Trim | Indicator Trim | Green/Red - No Icon |
| V88 | Indicator Trim | Indicator Trim | White/Red - No Icon |
| Manufacturer | Sargent |
| SKU | 60-V66-10XG24-VSLL |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI/BHMA A156.2, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Application | Indicator with Icons |
| Function |
24-Entrance or Office
|
| Lever/Knob Design |
L Lever
|
| Rose/Escutcheon Design |

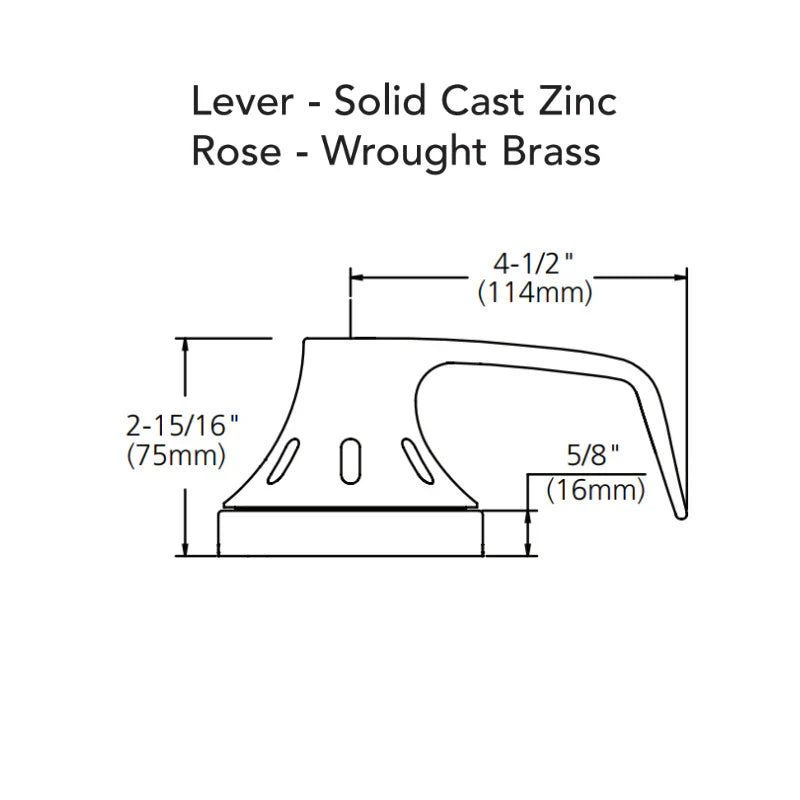

VSLL Rose with L Lever
|
| Cylinder Type |
LFIC Less Core
|
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
