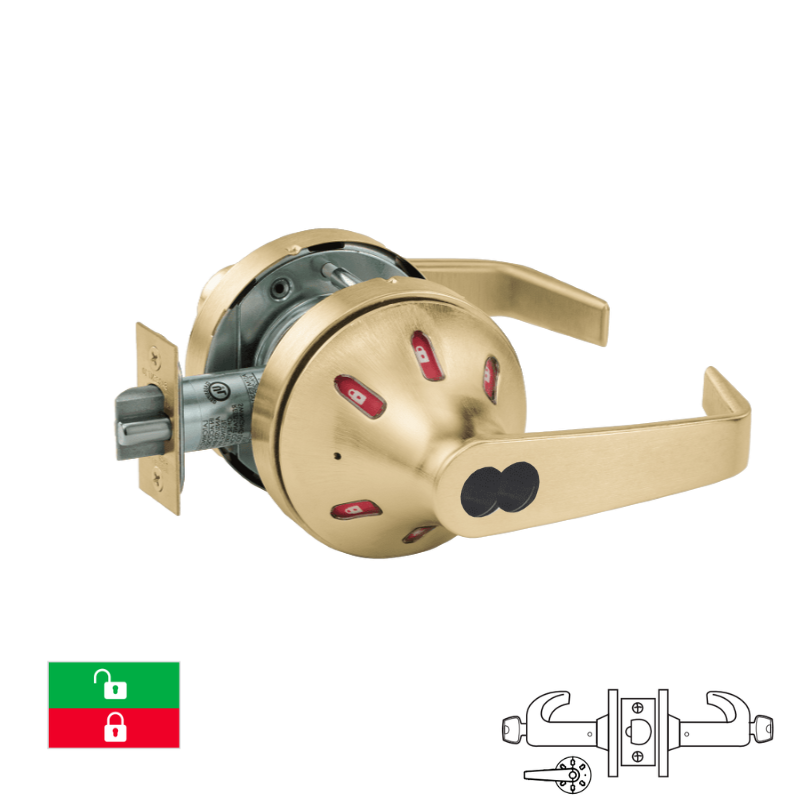

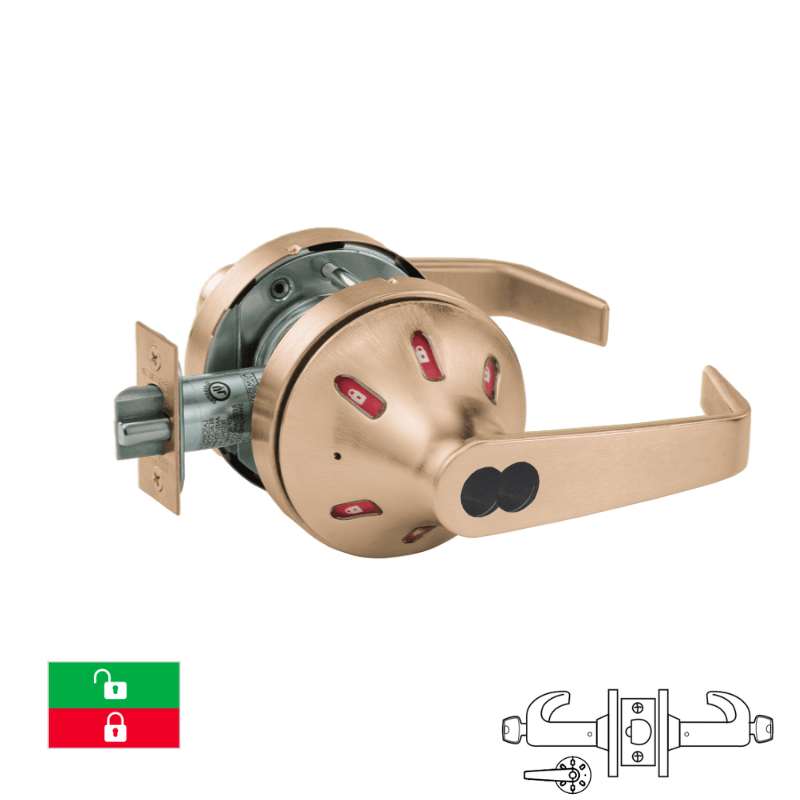

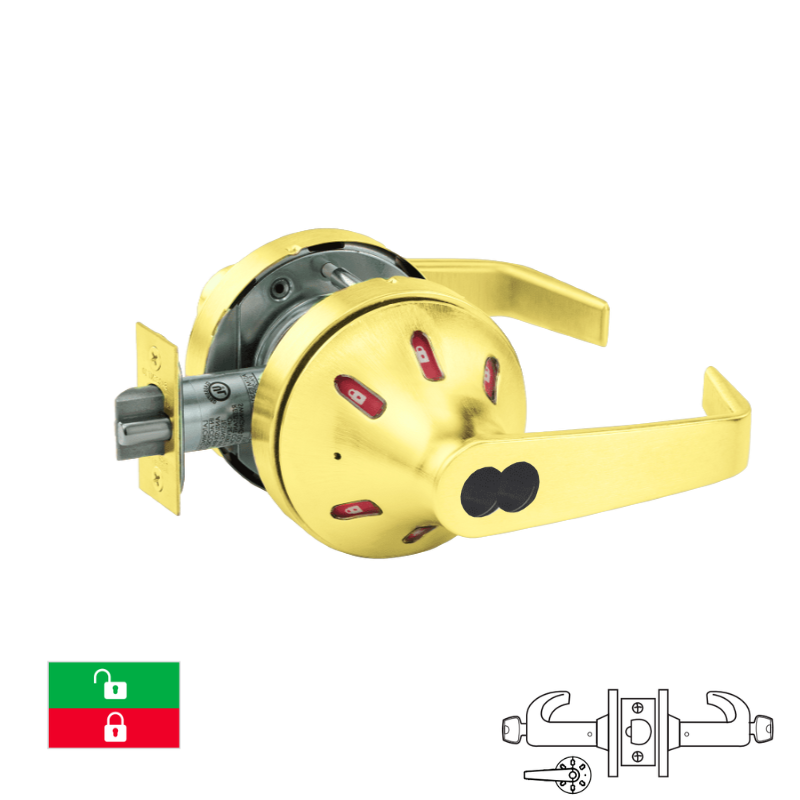

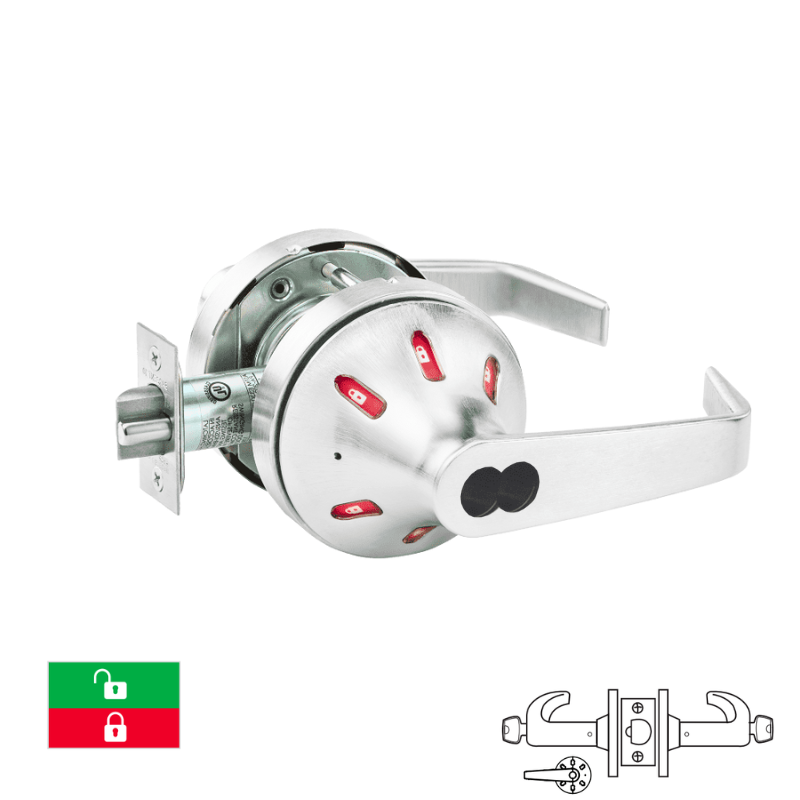

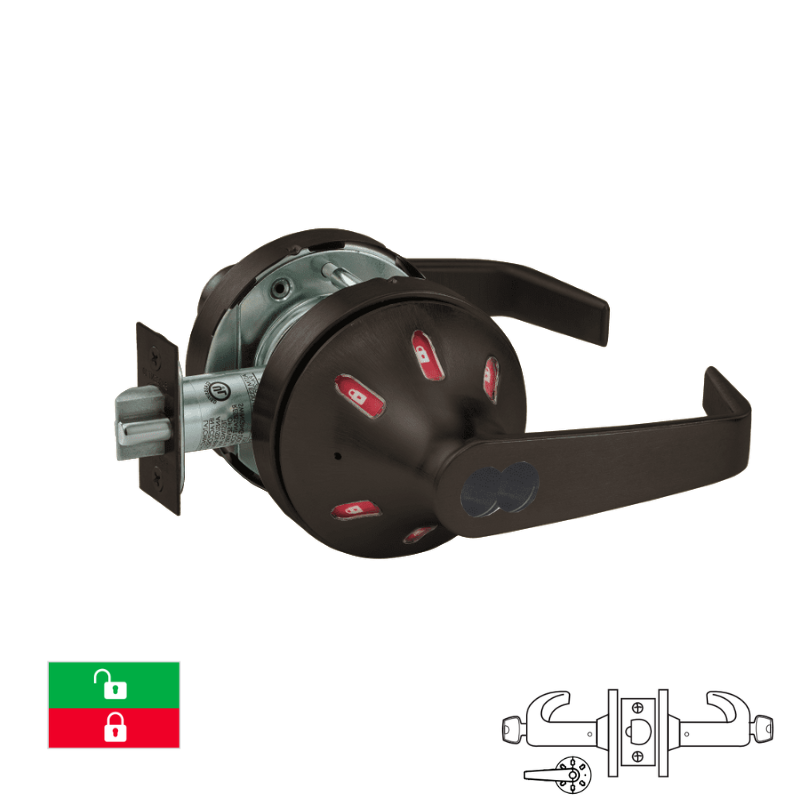

Sargent 70-V03-10XG38-VSLL Classroom Security Intruder Function Cylindrical Lock, Green/Red, SFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Inside Only, 2 3/4 Backset, 4 7/8 Strike

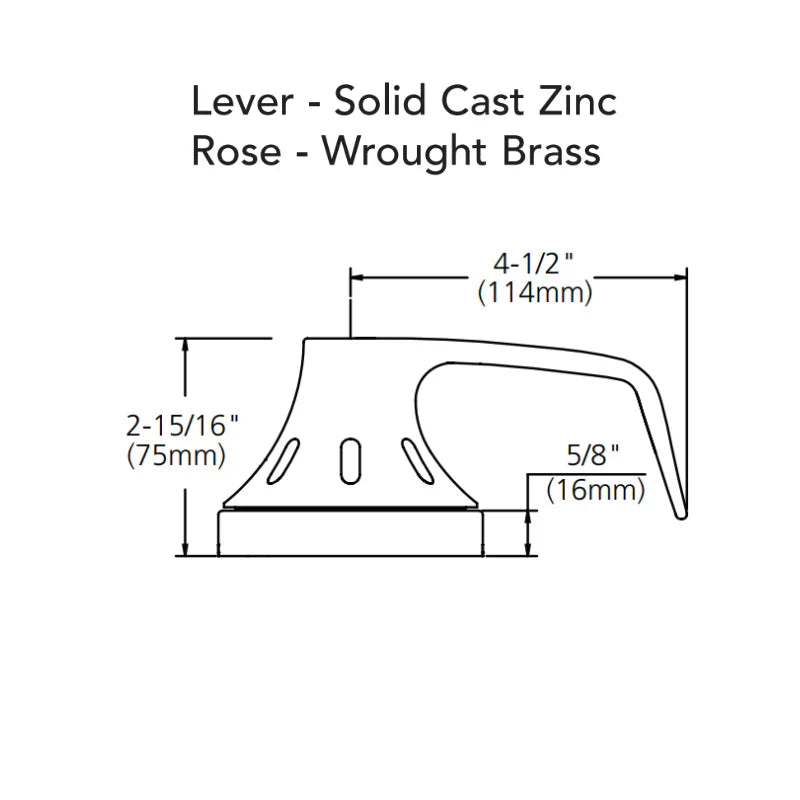

Sargent 70-V03-10XG38-VSLL Grade 1 cylindrical lock engineered for classroom security with intruder function capability. Features SFIC interchangeable core system, visual indicator trim (green/red) mounted on interior side only, and "L" lever design on "VSL" rose. Configured with 2 3/4" backset and 4 7/8" strike plate. Designed to provide institutional-grade access control while enabling quick visual status verification from inside secured spaces. Core sold separately.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
