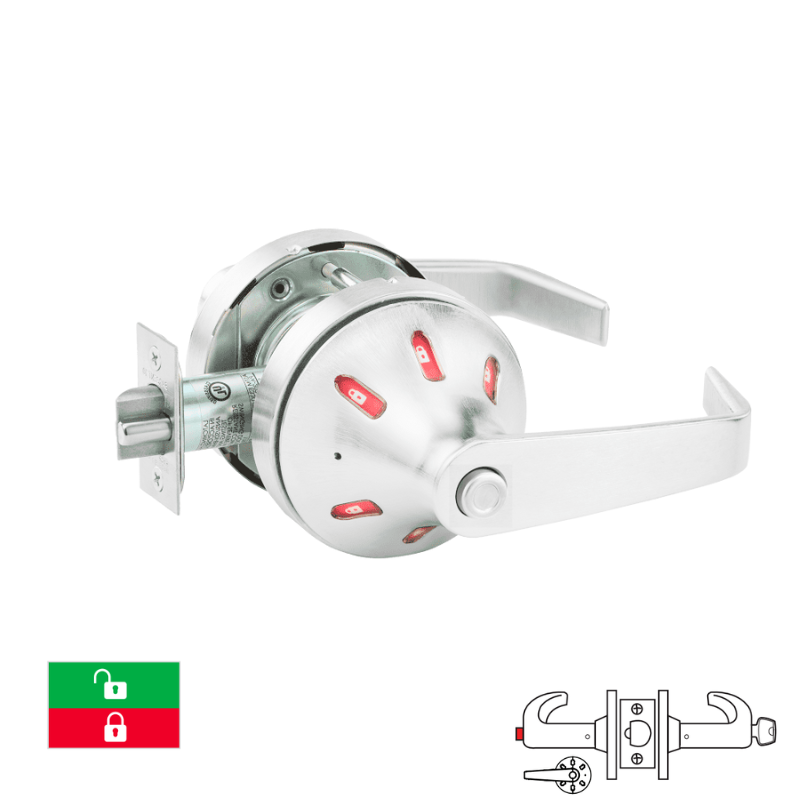

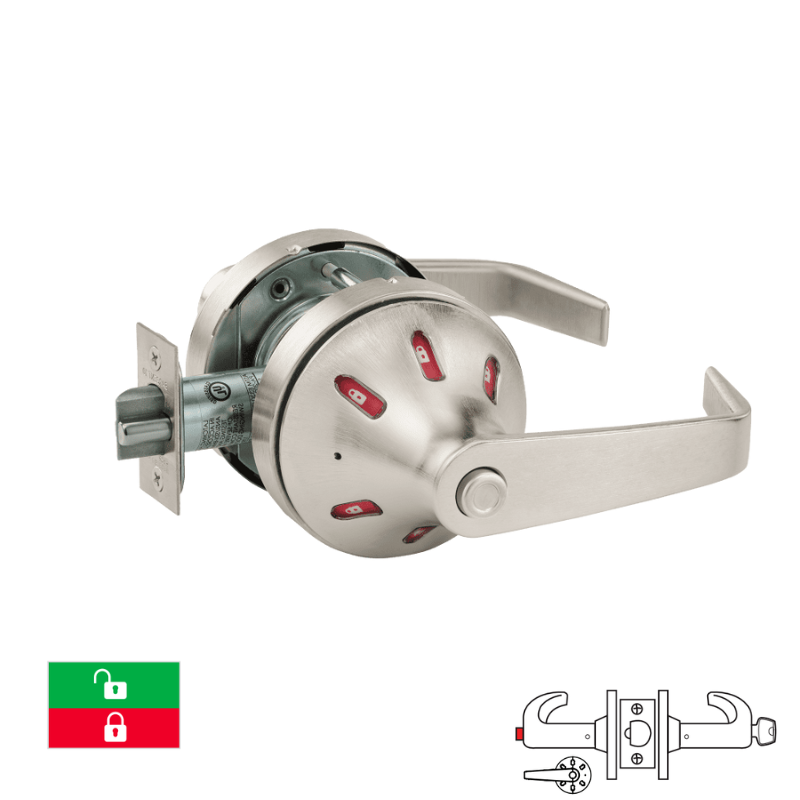

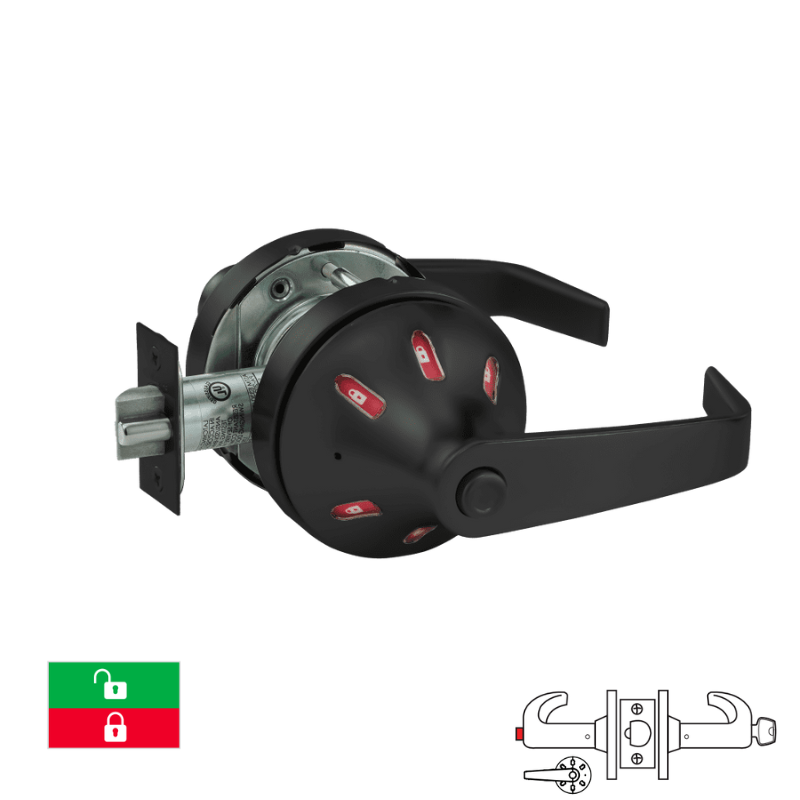

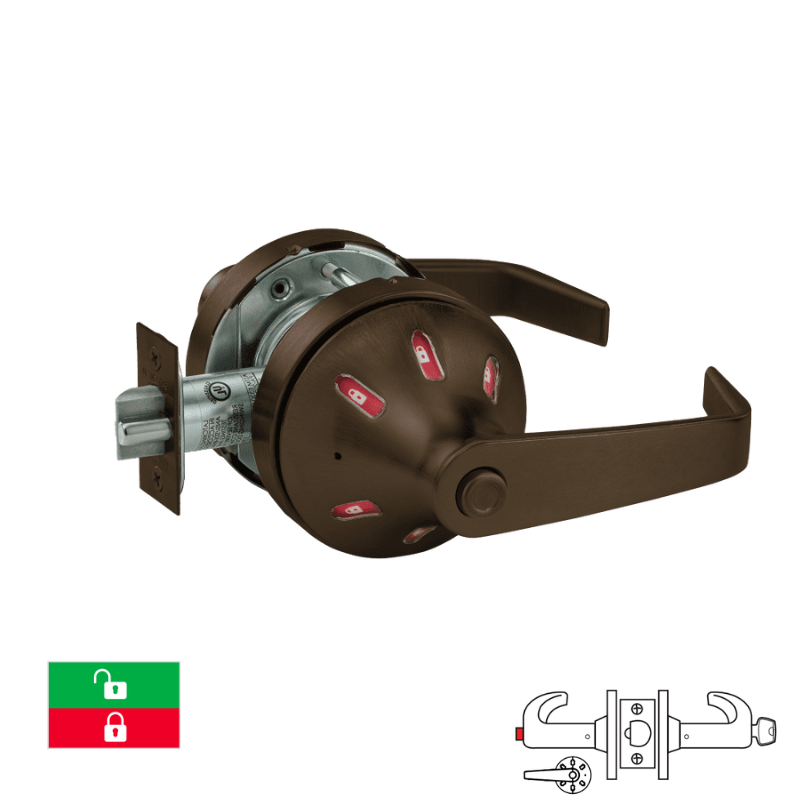

Sargent 70-V03-10XG44-VSLL Service Station Cylindrical Indicator Lock, Inside Only Visual Indicator

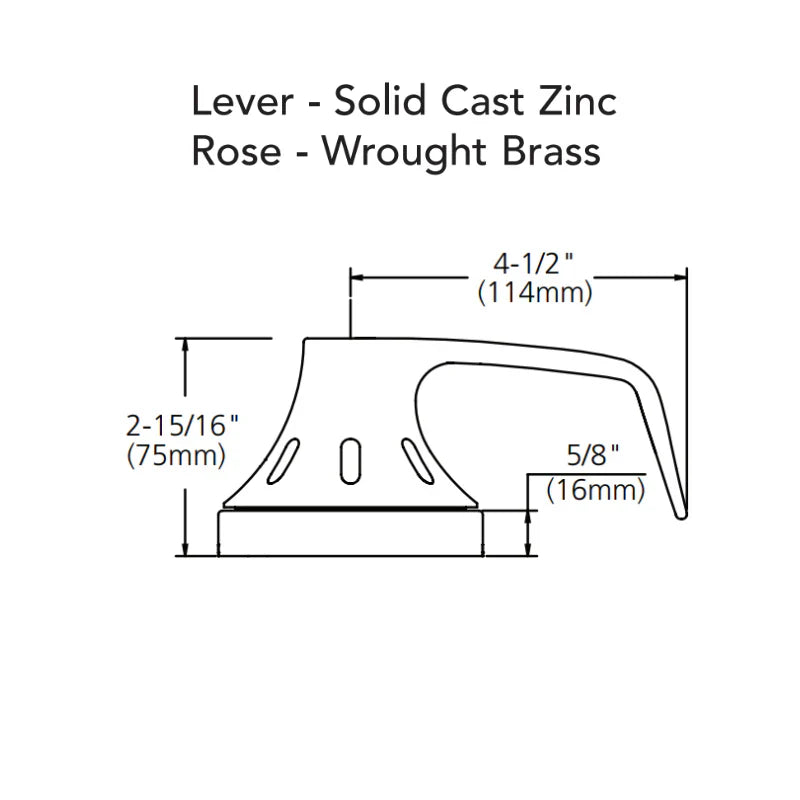

Sargent 70-V03-10XG44-VSLL Service Station Function Cylindrical Lock, Visual Indicator Trim Inside Only, SFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, Green/Red, 2 3/4 Backset, 4 7/8 Strike

Sargent's Grade 1 cylindrical lock delivers institutional-grade security for service station applications with visual occupancy indication. The inside-only indicator trim features a dual-color (green/red) display to quickly communicate lock status at a glance. SFIC-compatible design accepts interchangeable cores for simplified maintenance and rekeying. Lever trim with VSL rose and L-lever configuration accommodates standard 2 3/4" backset installations with 4 7/8" strike preparation. Less core—order separately to match your existing system specifications.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
