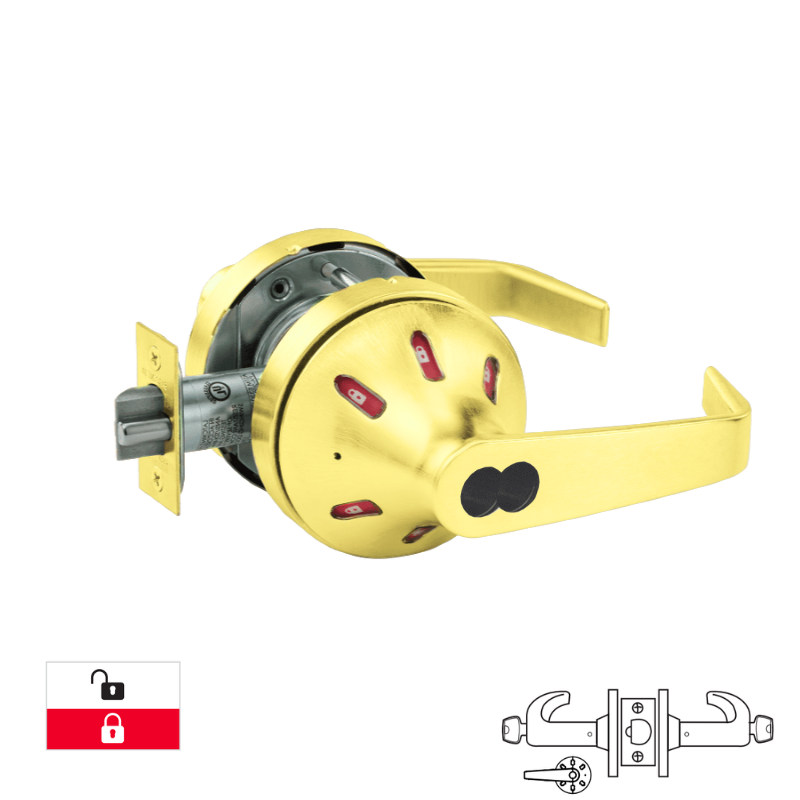

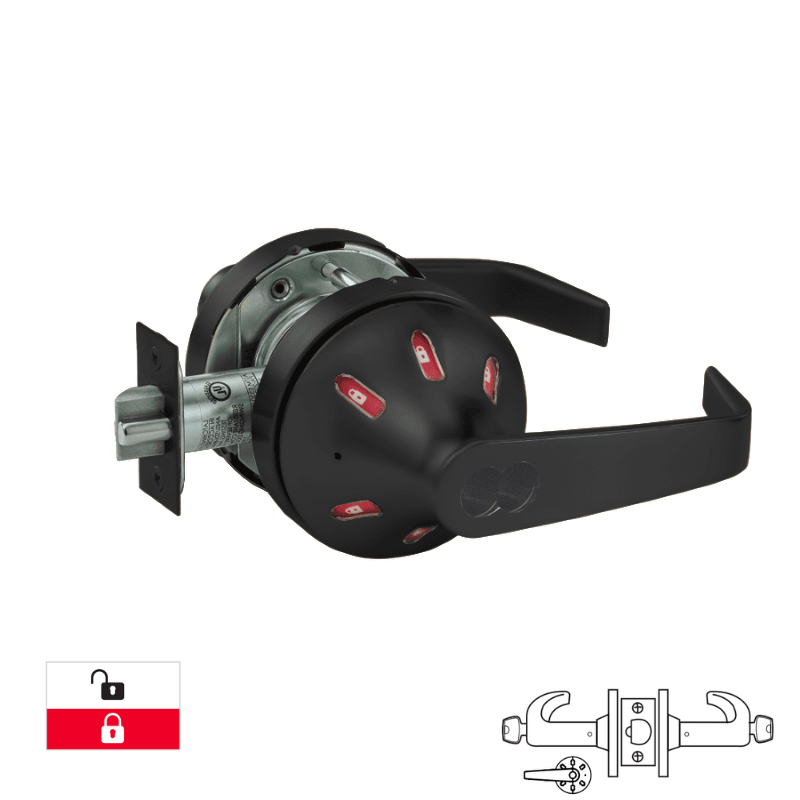

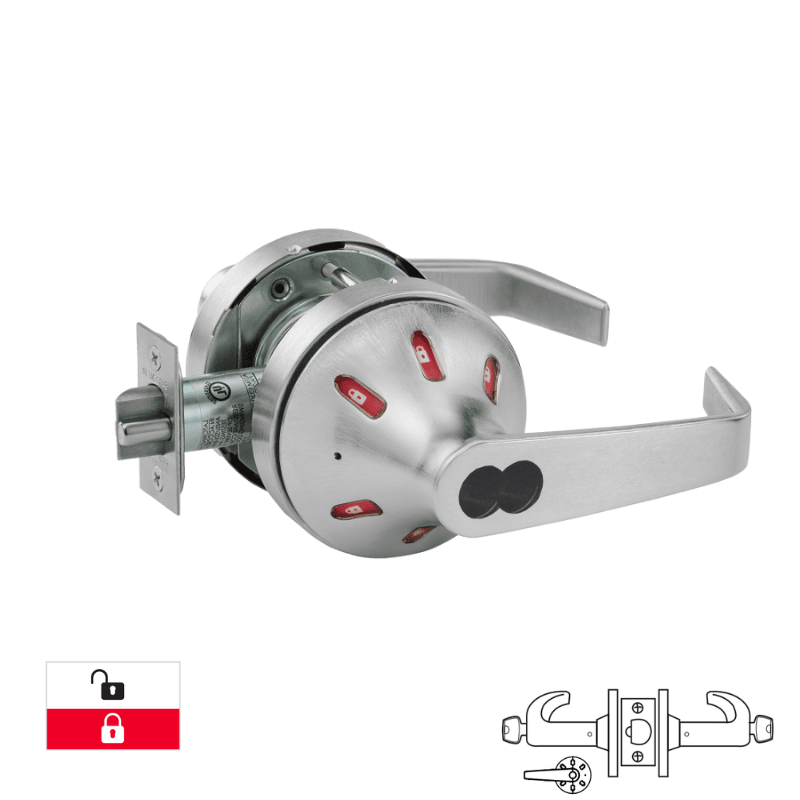

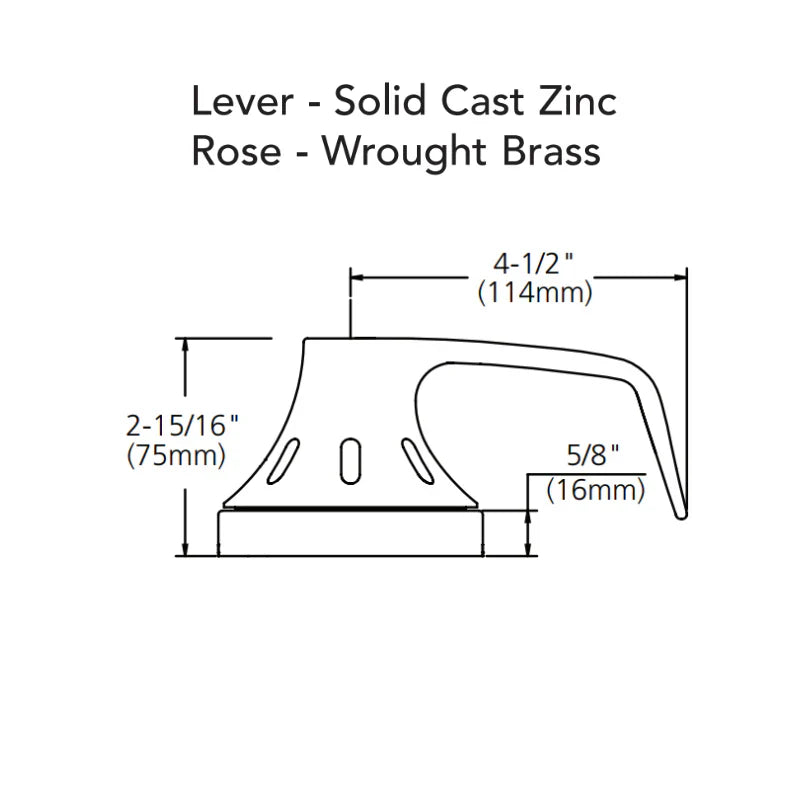

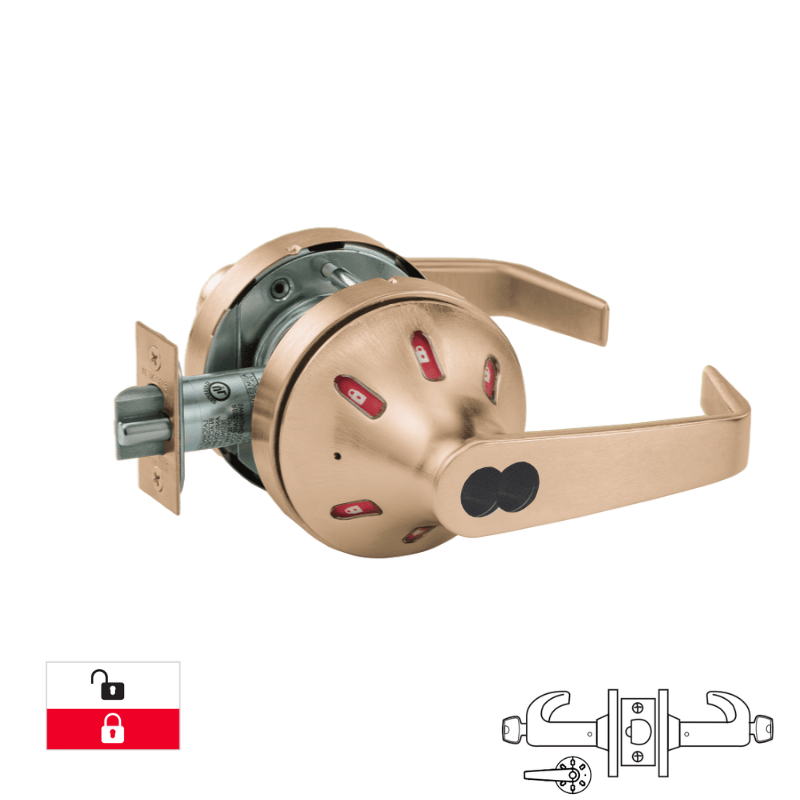

Sargent 70-V06-10XG38-VSLL Classroom Security Intruder Function Cylindrical Lock, Visual Indicator Trim Inside Only, SFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, White/Red, 2 3/4 Backset, 4 7/8 Strike
Sargent's 70-V06-10XG38-VSLL cylindrical lock delivers institutional-grade security for classroom environments with its intruder function and visual indicator system. The inside-only indicator trim provides immediate status visibility without exterior exposure. Built to Grade 1 specifications with SFIC compatibility, this lock features a durable VSL rose and L-lever design in white and red finish. Configured with a 2 3/4" backset and 4 7/8" strike, it installs seamlessly into standard door preparations. Core sold separately for flexible keying options.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
