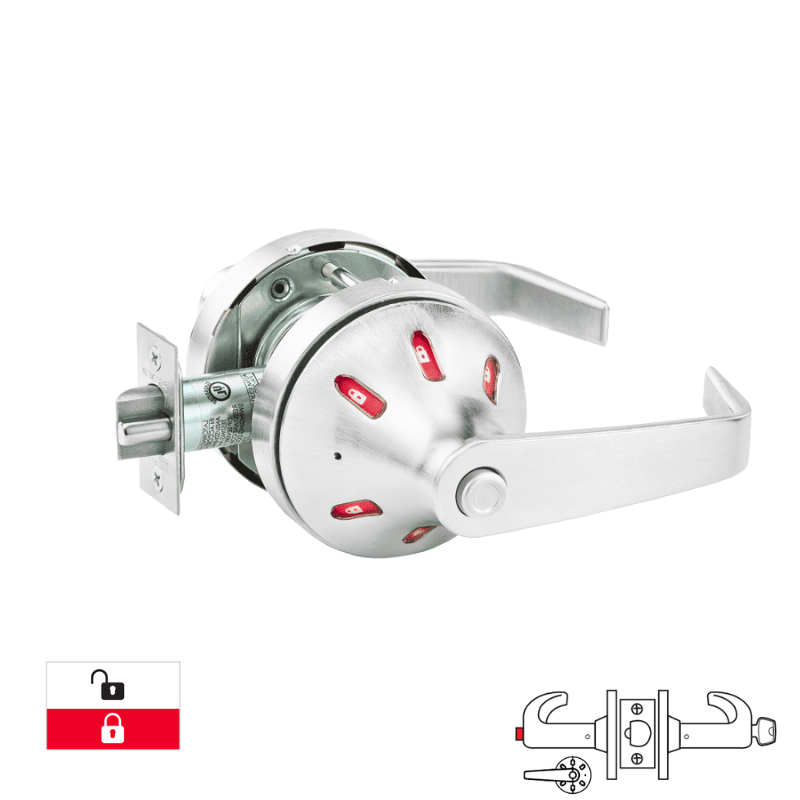

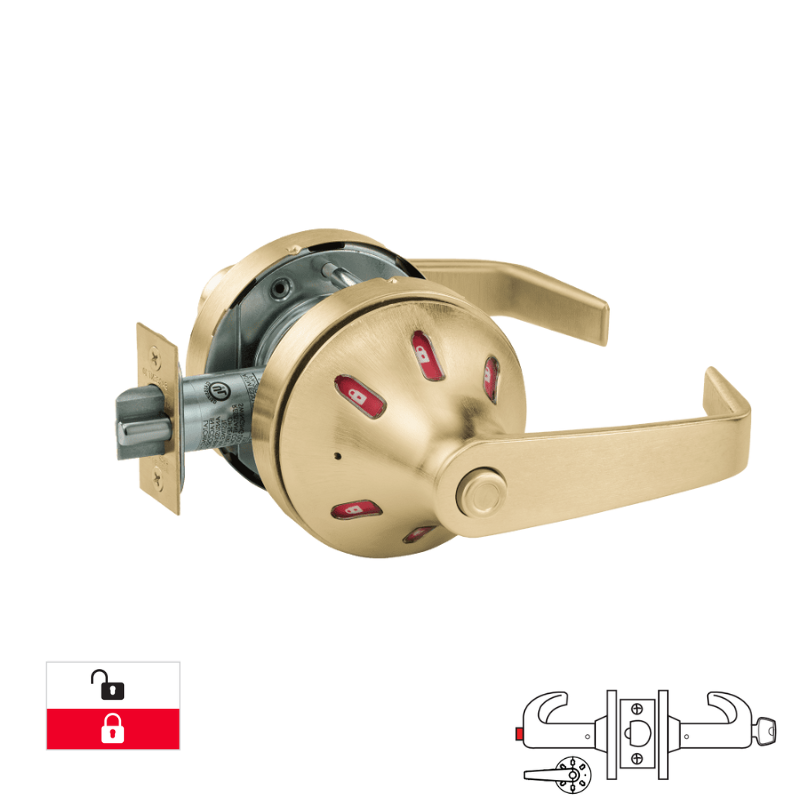

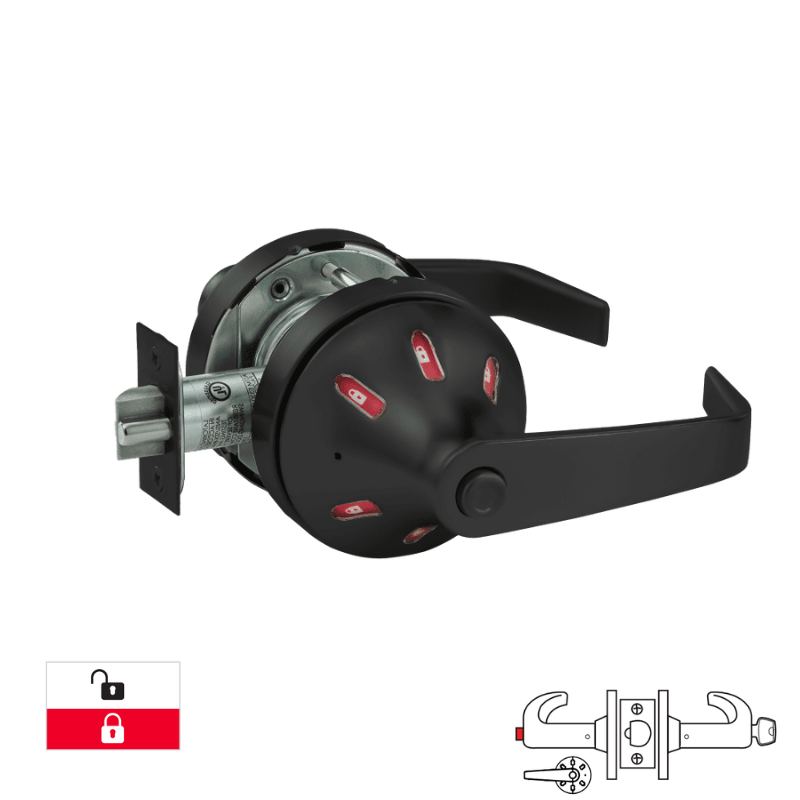

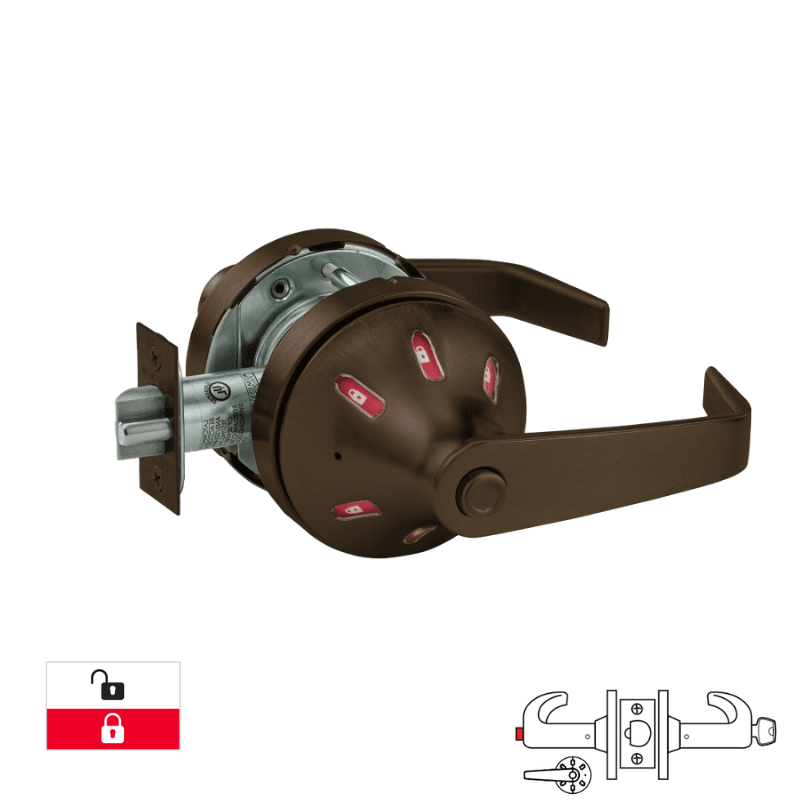

Sargent 70-V06-10XG44-VSLL Service Station Cylindrical Indicator Lock, Inside Only Visual Indicator

Sargent 70-V06-10XG44-VSLL Service Station Function Cylindrical Lock, Visual Indicator Trim Inside Only,  SFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, White/Red, 2 3/4 Backset, 4 7/8 Strike

Sargent 70-V06-10XG44-VSLL cylindrical lock delivers Grade 1 security for service station applications with an interior-mounted visual indicator that displays occupancy status at a glance. This SFIC-compatible unit features a durable "VSL" rose and "L" lever configuration, engineered for reliable performance in high-traffic commercial environments. The white and red indicator provides clear visibility, while the 2 3/4" backset and 4 7/8" strike accommodate standard door preparations. Core sold separately.

Service Station Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Key retracts latch when outside lever is locked
• Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
• Slotted inside button must be manually released
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
