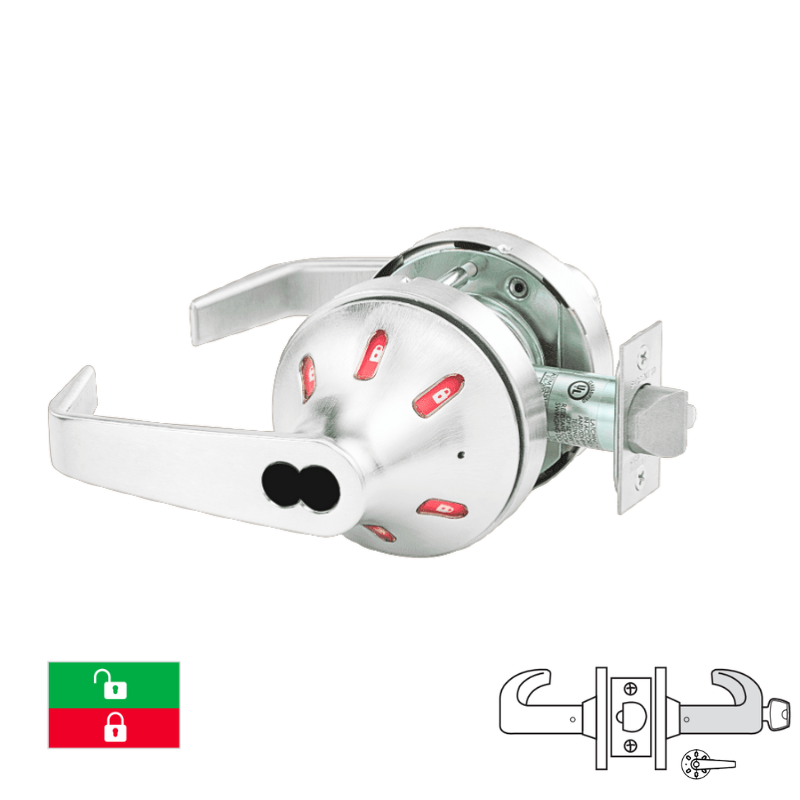

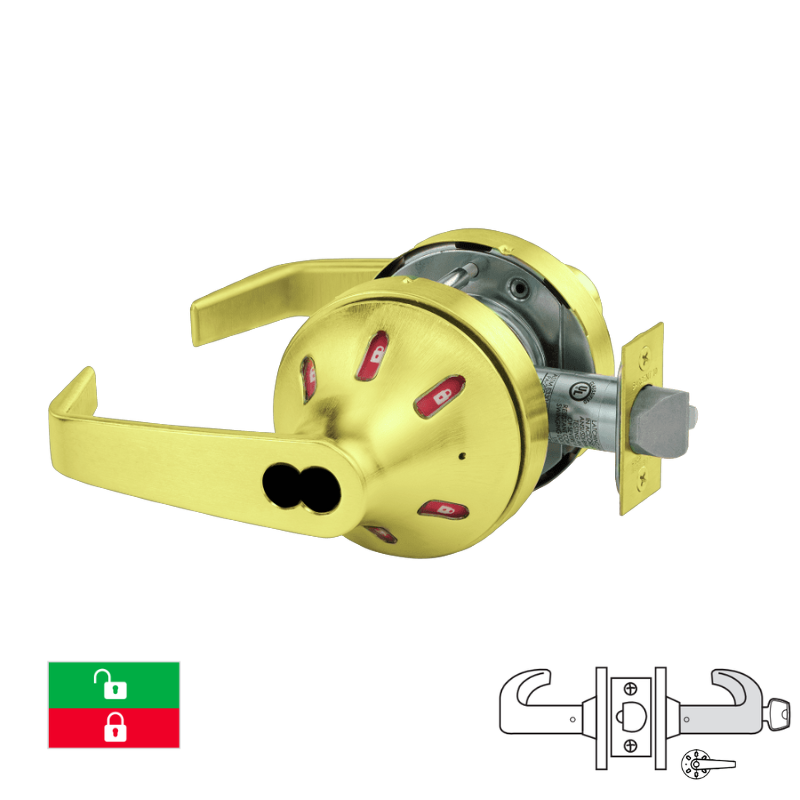

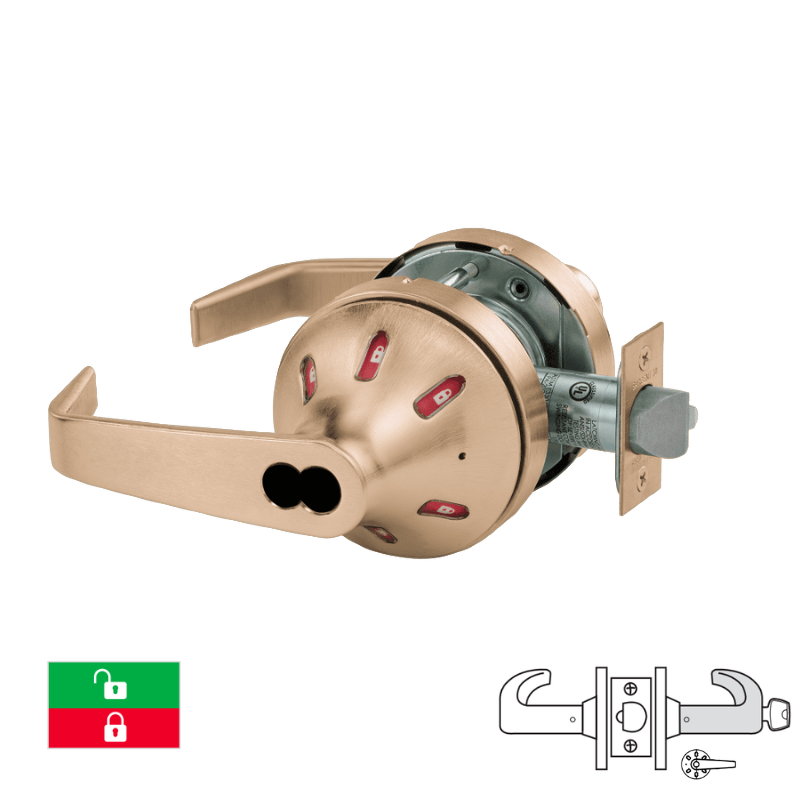

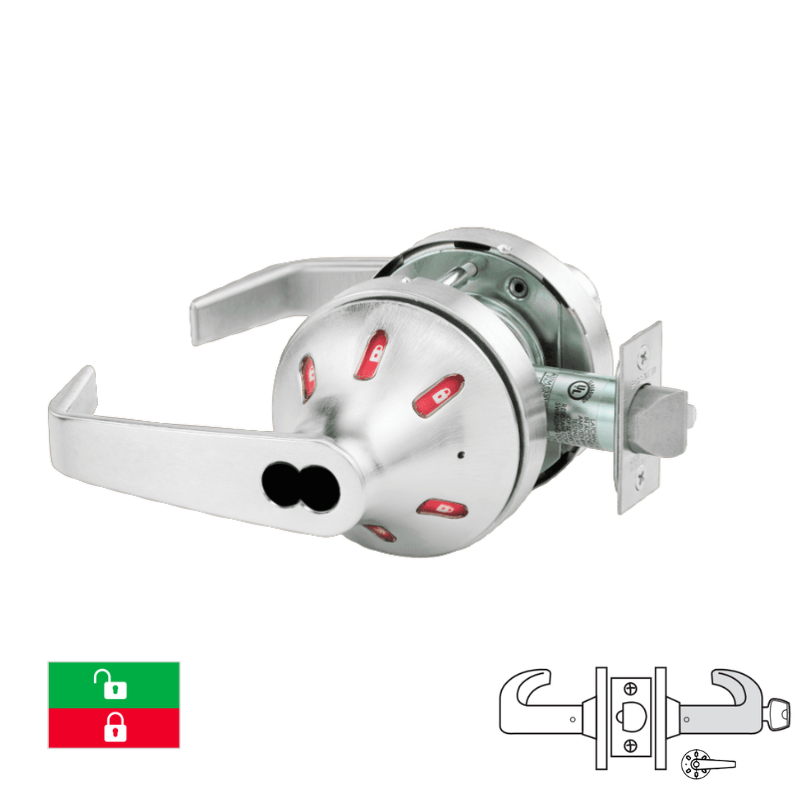

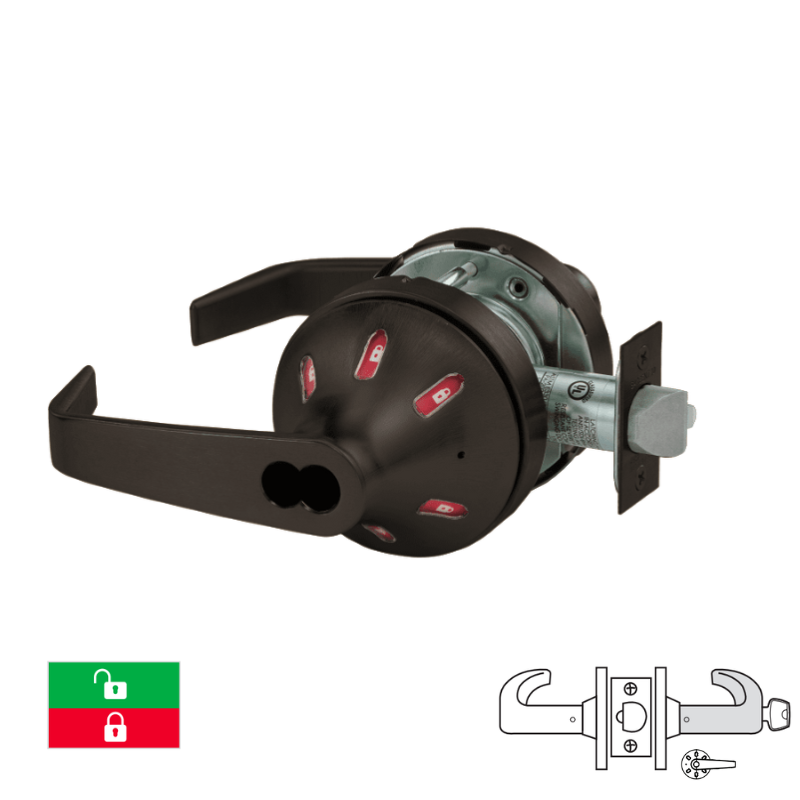

Sargent 70-V30-10XG04-VSLL Storeroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1
Sargent 70-V30-10XG04-VSLL Cylindrical Lock designed for storeroom use, featuring a "VSL" rose and an "L" lever style. Equipped with a visual indicator trim visible on the exterior in green/red. Includes a 2 3/4-inch backset, 4 7/8-inch strike, SFIC configuration without a core, and meets Grade 1 standards.
Storeroom or Closet Function:
- Deadlocking latch
- Latch by lever inside or key outside
- Outside lever locked at all times
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
