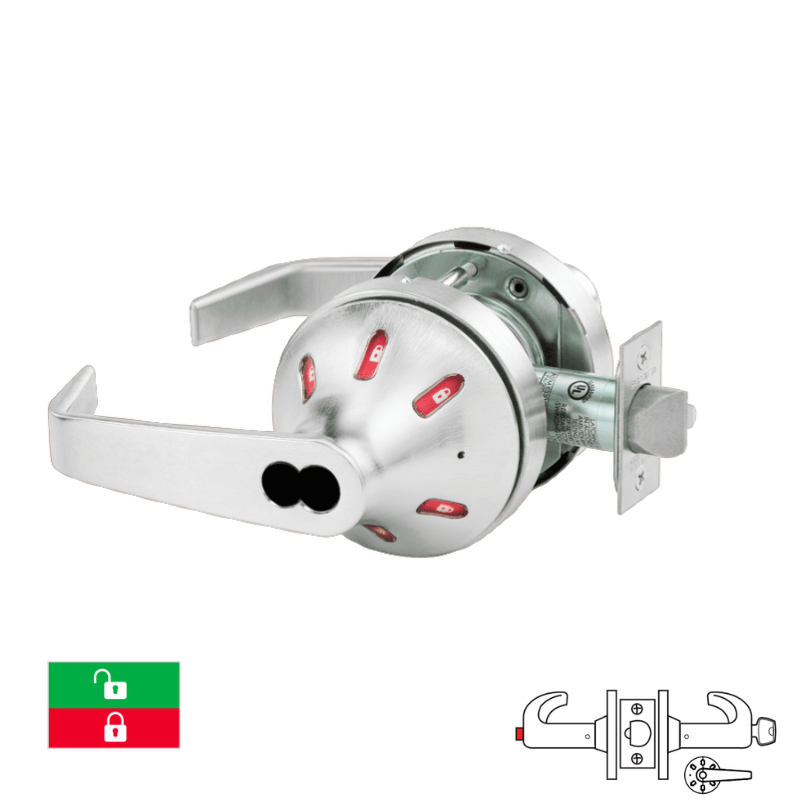

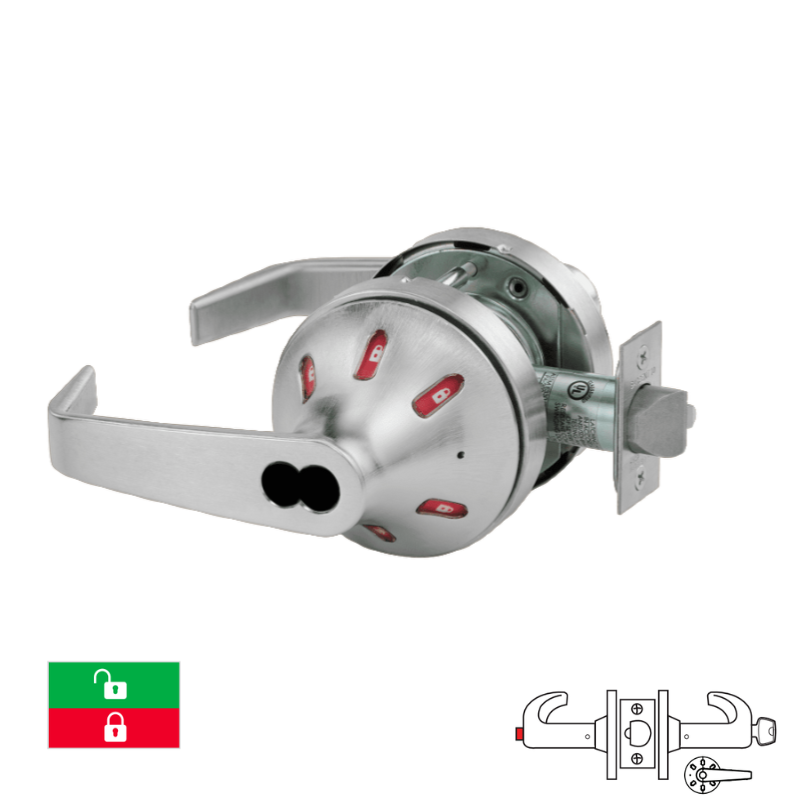

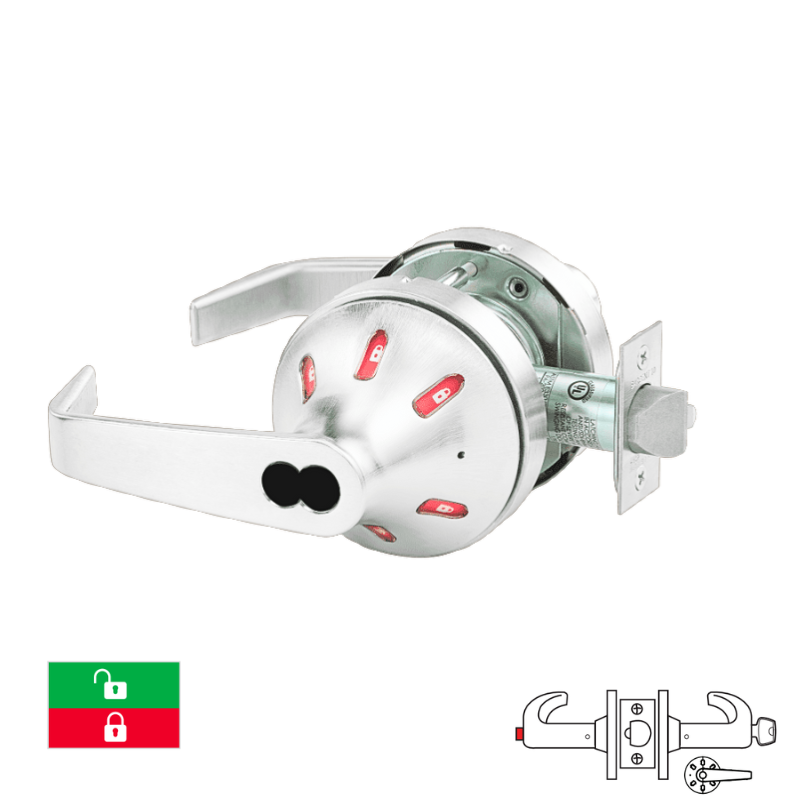

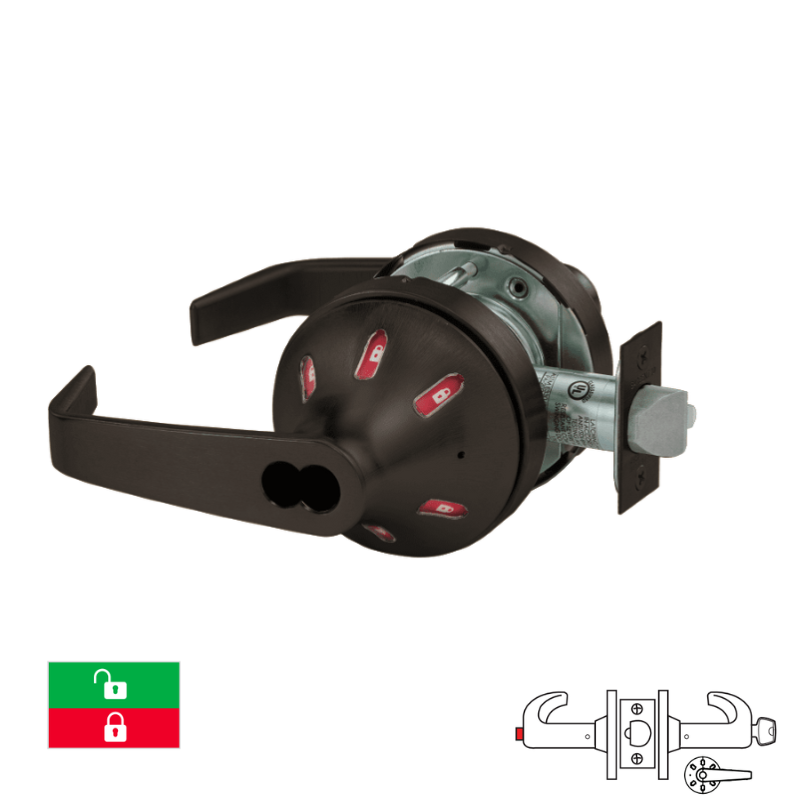

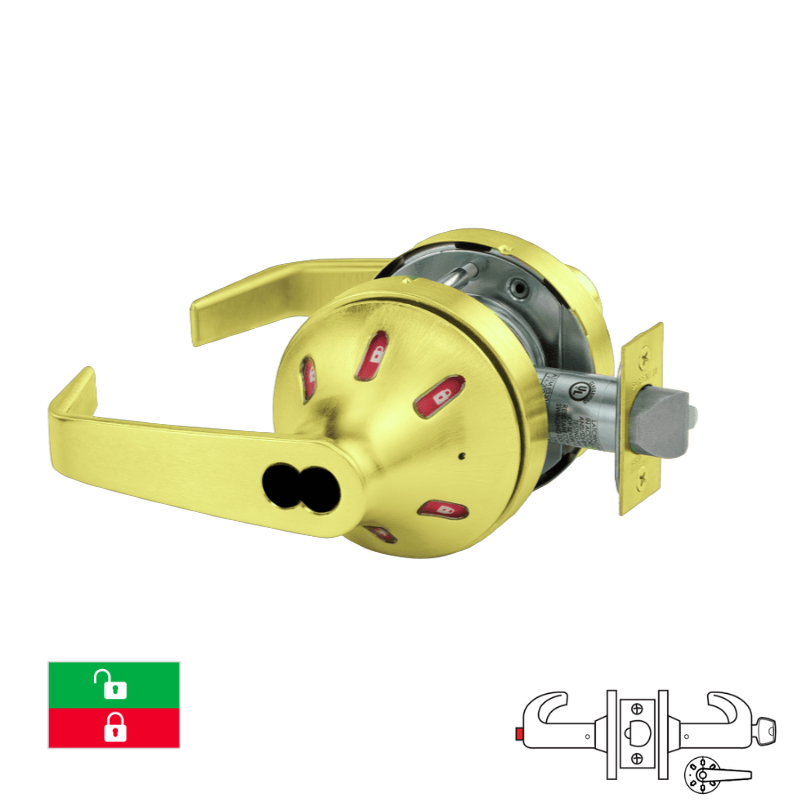

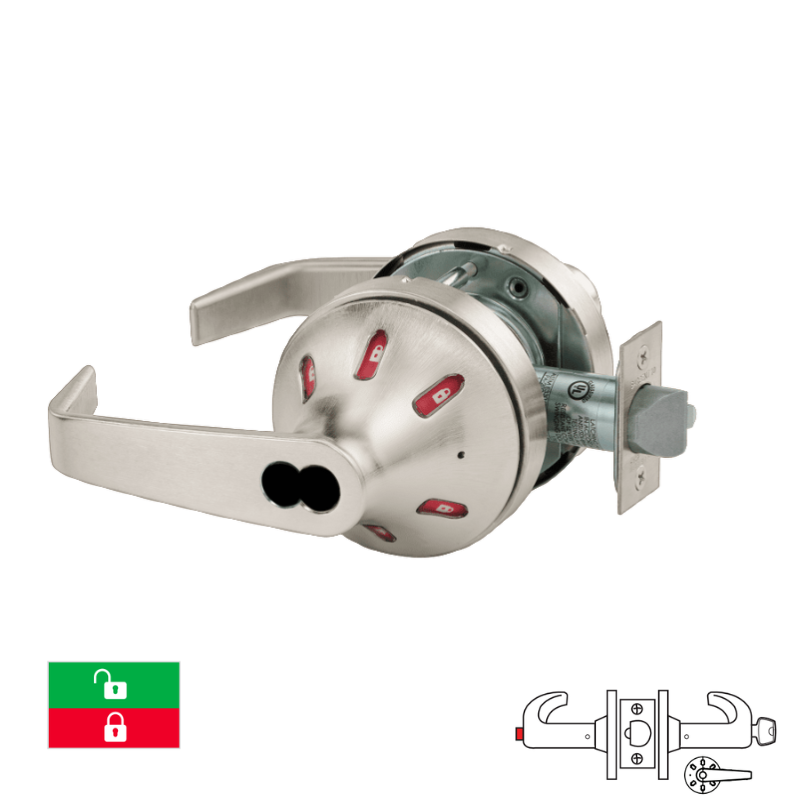

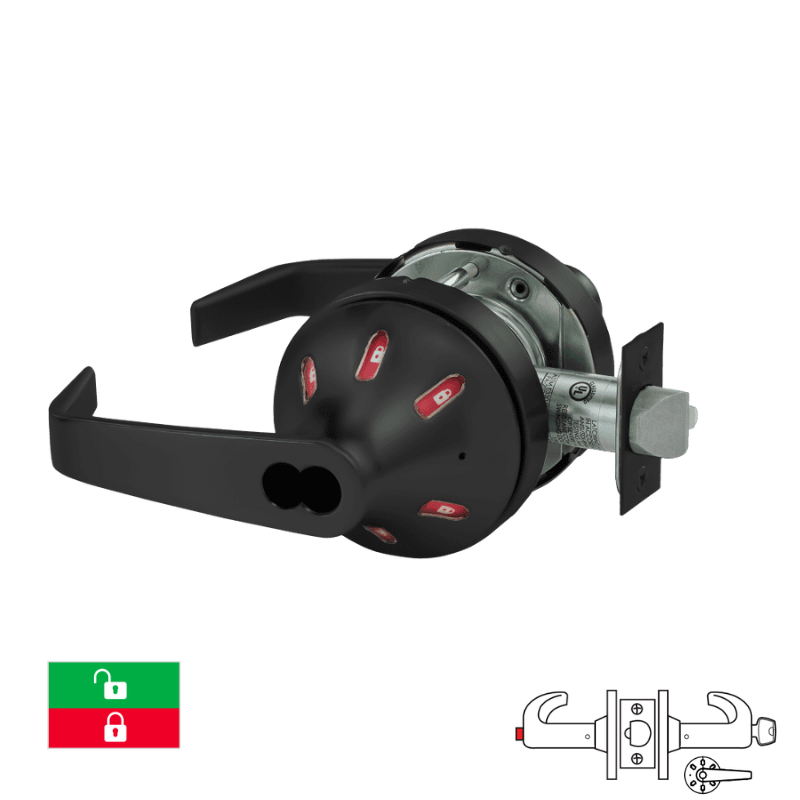

Sargent 70-V30-10XG24-VSLL Entrance or Office Cylindrical Indicator Lock, Outside Only Visual Indicator

Sargent 70-V30-10XG24-VSLL Entrance or Office Function Cylindrical Lock, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, Green/Red

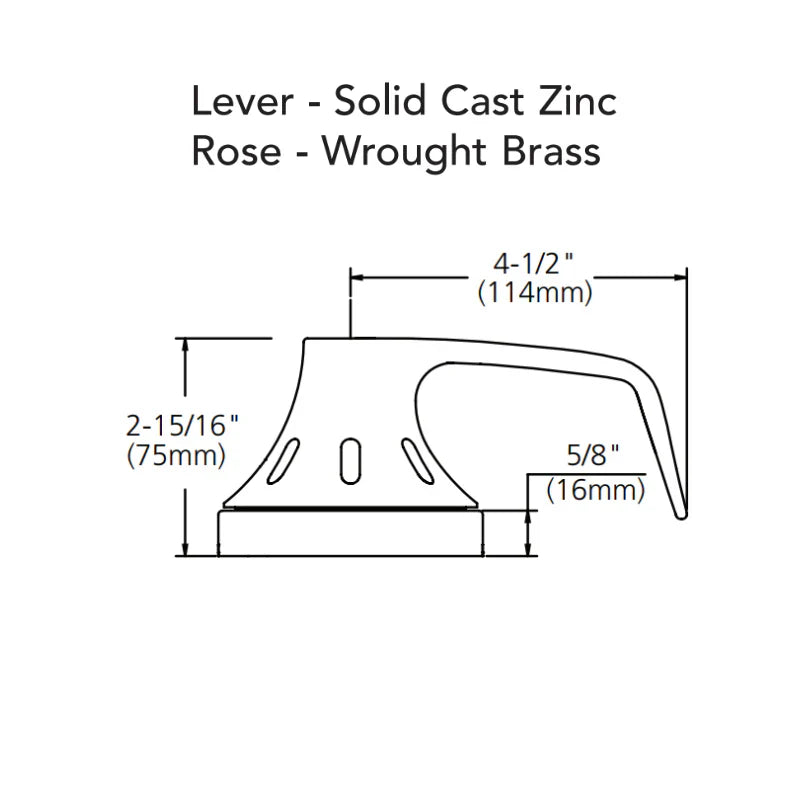

The Sargent 70-V30-10XG24-VSLL is a Grade 1 cylindrical lock engineered for entrance and office doors requiring occupancy indication. Built with SFIC compatibility and a 2 3/4" backset paired with a 4 7/8" strike for standard installations. The exterior-mounted visual indicator trim cycles between green (vacant) and red (occupied), enabling quick status verification without door contact. Features a "VSL" rose and "L" lever configuration for reliable daily operation. Supplied less core to accommodate your specific keying requirements.

Entrance or Office Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button
• ANSI/BHMA F82A

Single Indicator:

 * If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
