Product Cut Sheet
Description
Active

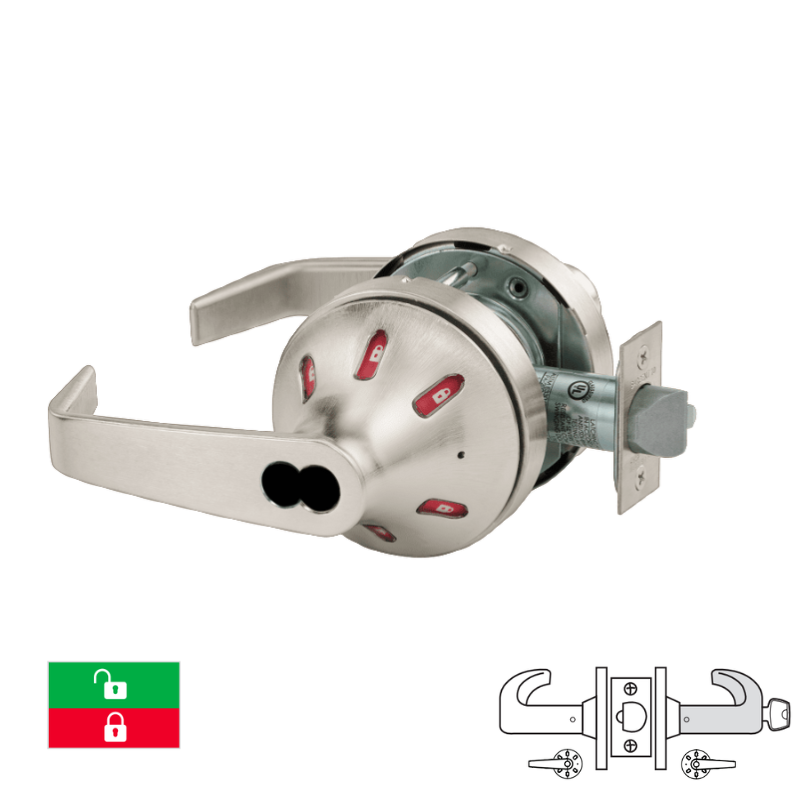

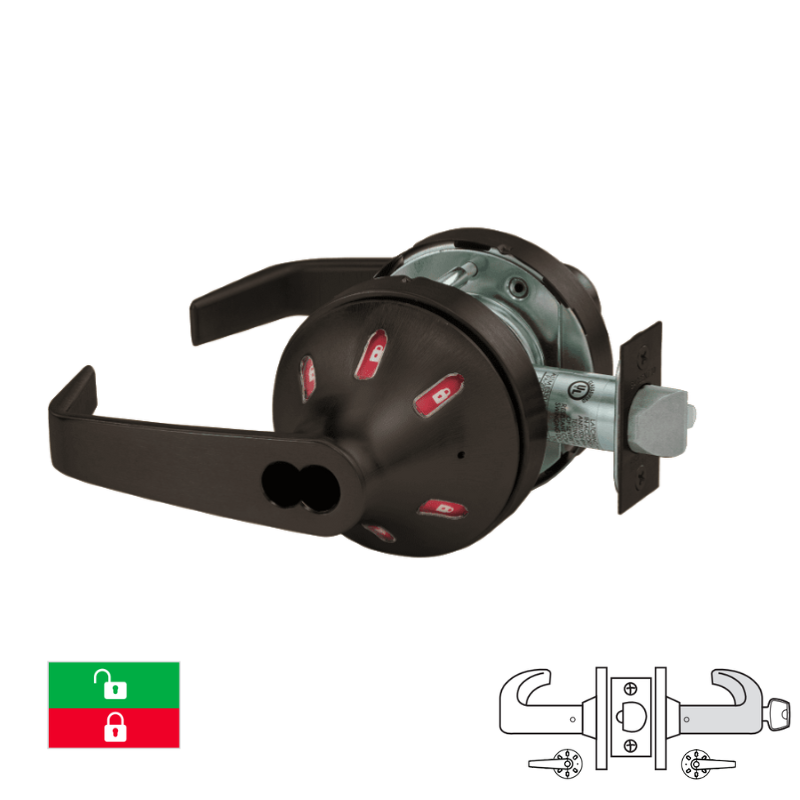

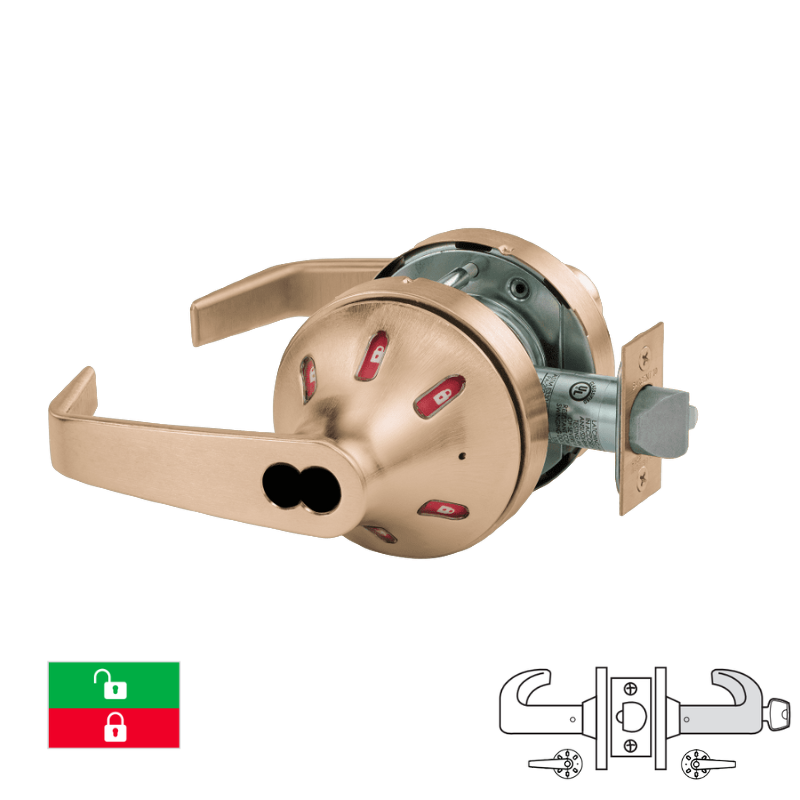

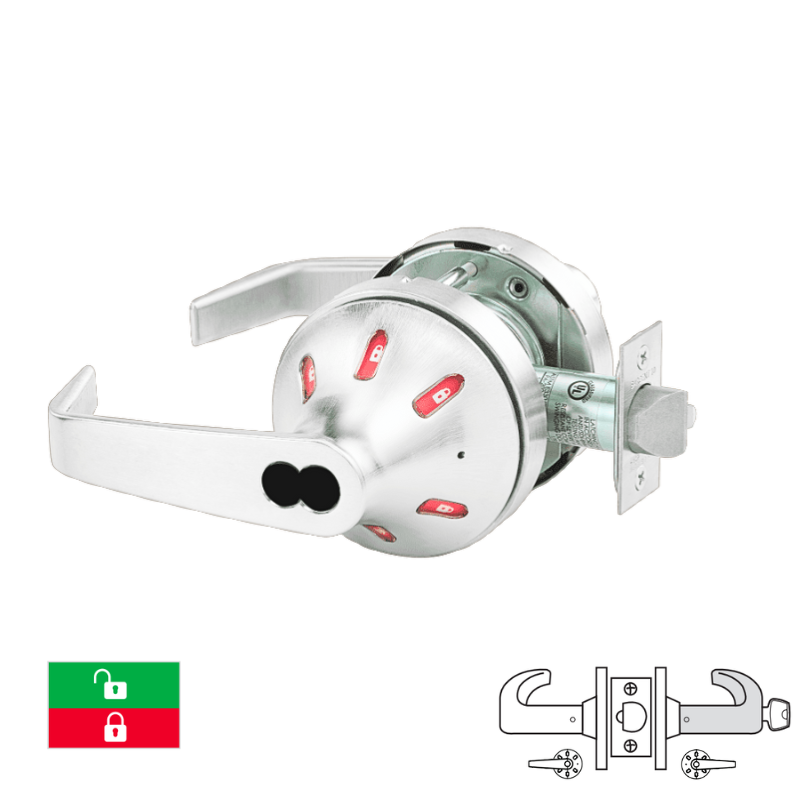

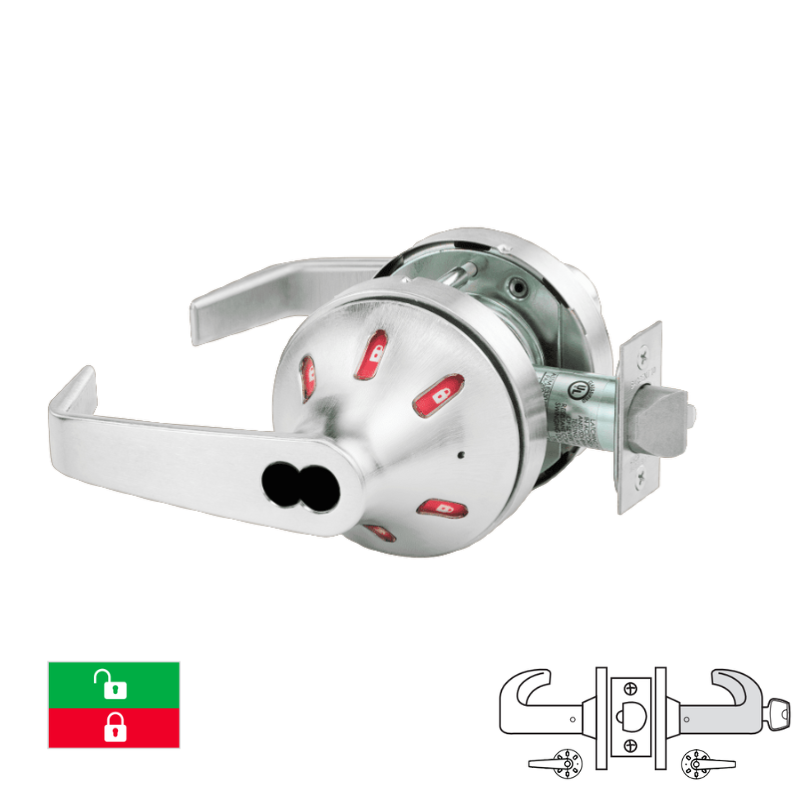

Sargent 70-V33-10XG37-VSLL Classroom Function Cylindrical Lock, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Both Side, Green/Red, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1
The Sargent 70-V33-10XG37-VSLL is a Grade 1 classroom function cylindrical lock featuring a "VSL" rose and an "L" lever style. It includes visual indicator trims on both sides that show green or red status, enhancing classroom security. Designed with a 2 3/4" backset and a 4 7/8" strike plate, this lock uses an SFIC system and is sold without a core, allowing for tailored keying options. Its robust construction ensures reliable performance in educational settings.
Classroom Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever and retracts latch
- Inside lever aleays operative
- ANSI/BHMA F84
Double Indicator:
| Option Code | Outside | Inside | Color |
| V33 | Indicator Trim | Indicator Trim | Green/Red - Icon |
| V66 | Indicator Trim | Indicator Trim | White/Red - Icon |
| V77 | Indicator Trim | Indicator Trim | Green/Red - Icon |
| V88 | Indicator Trim | Indicator Trim | White/Red - Icon |
| Manufacturer | Sargent |
| SKU | 70-V33-10XG37 VSLL |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2 (2017), A156.41, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Application | Indicator with Icons |
| Function |
37-Classroom
|
| Lever/Knob Design |
L Lever
|
| Rose/Escutcheon Design |
VSL Rose
|
| Cylinder Type |
SFIC Less Core
|
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
