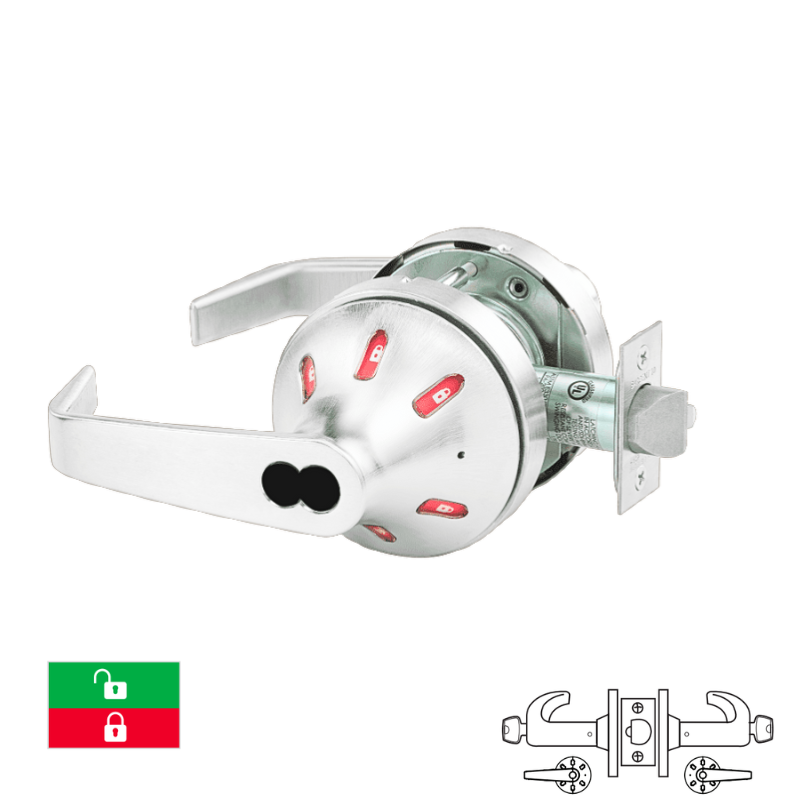

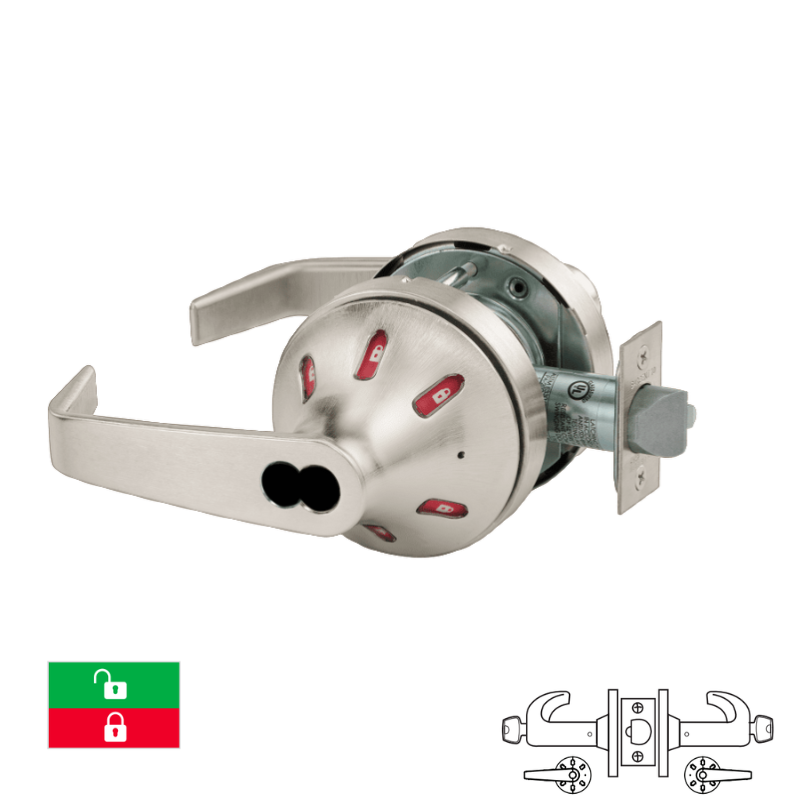

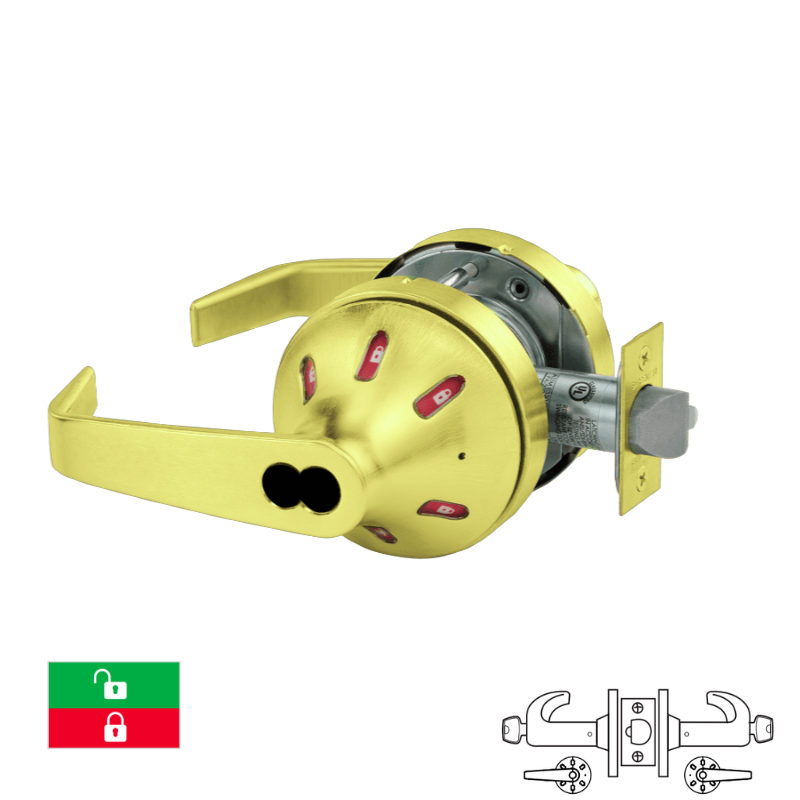

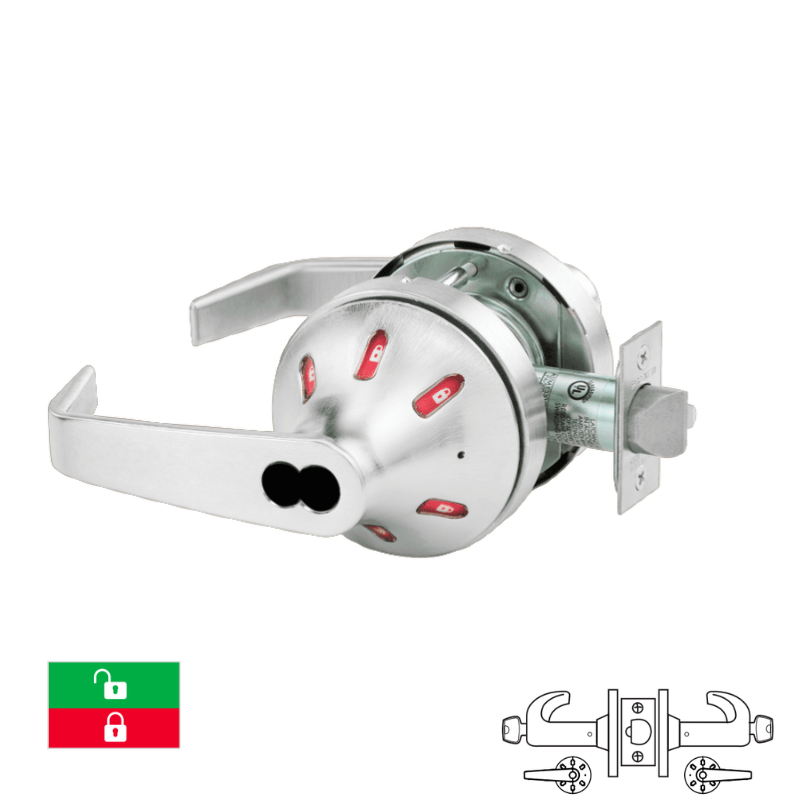

Sargent 70-V33-10XG38-VSLL Classroom Security Intruder Function Cylindrical Lock, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1, Visual Indicator Trim Both Sides, Green/Red, "VSL" Rose, "L" Lever Design
Sargent's 70-V33-10XG38-VSLL cylindrical lock delivers institutional-grade security for classroom environments with dual-sided visual indicators that display occupancy status at a glance. This Grade 1 classified lock features a 2 3/4" backset, 4 7/8" strike, and SFIC compatibility for flexible core management. The green and red indicator system provides immediate visual feedback, while the "L" lever design and "VSL" rose ensure ergonomic operation and reliable performance in high-traffic educational settings. Core sold separately.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Double Indicator:
| Option Code |
Outside |
Inside |
Color |
| V33 |
Indicator Trim |
Indicator Trim |
Green/Red - Icon |
| V66 |
Indicator Trim |
Indicator Trim |
White/Red - Icon |
| V77 |
Indicator Trim |
Indicator Trim |
Green/Red - No Icon |
| V88 |
Indicator Trim |
Indicator Trim |
White/Red - No Icon |
