Product Cut Sheet
Description
Active

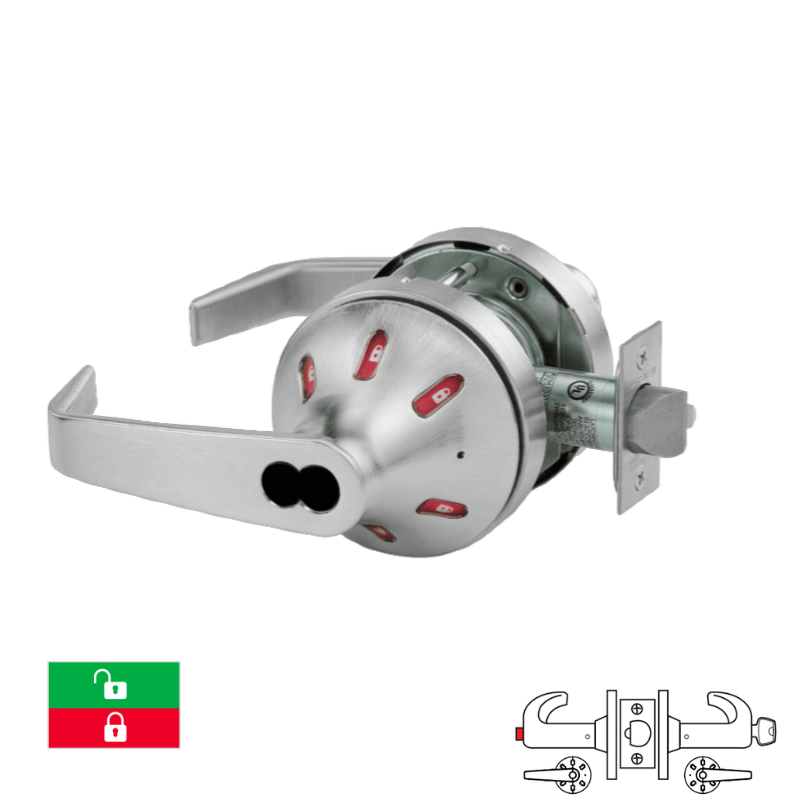

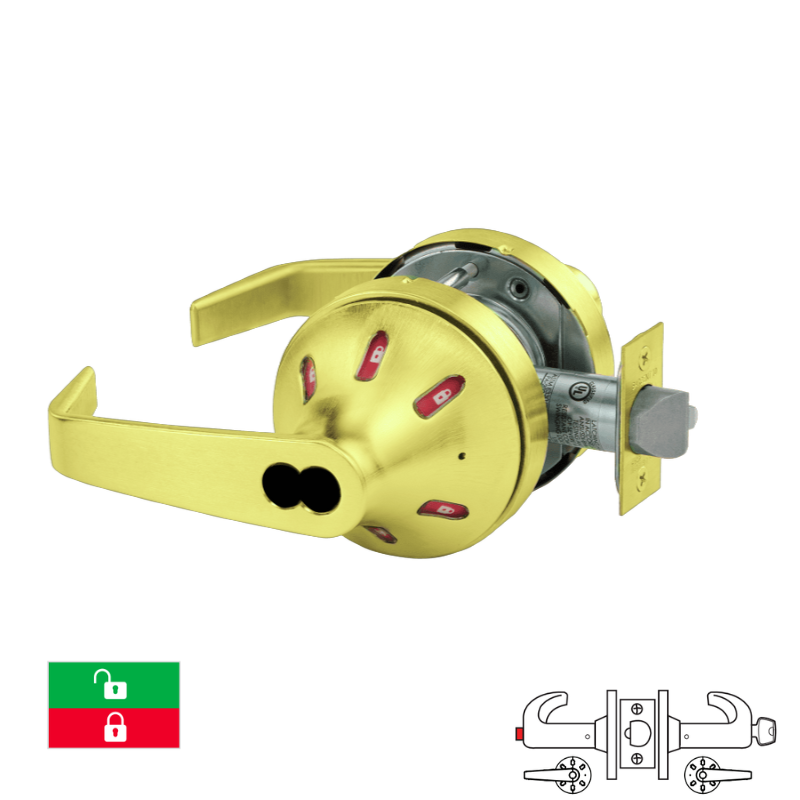

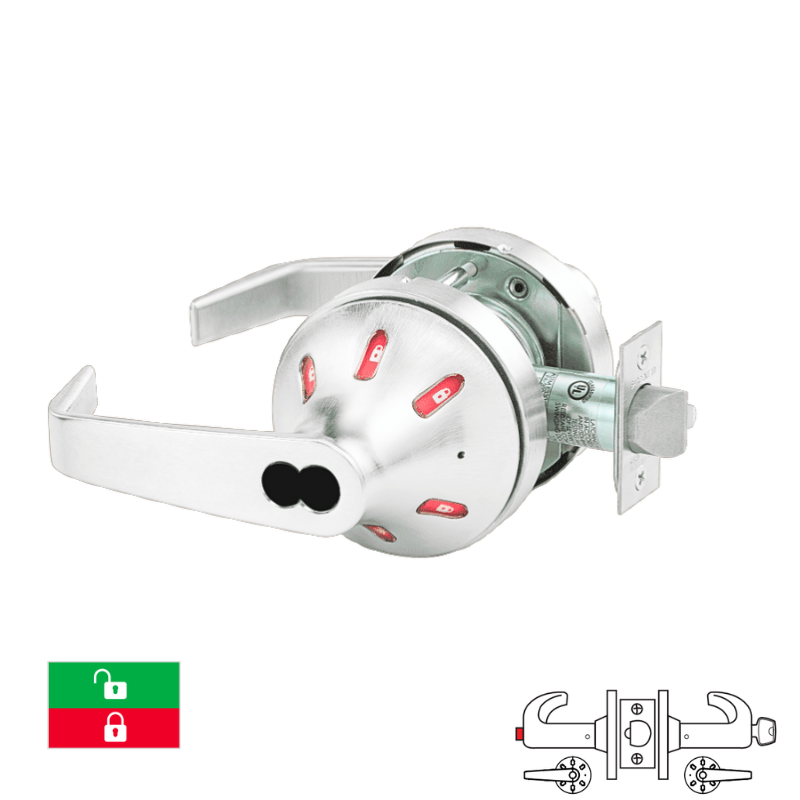

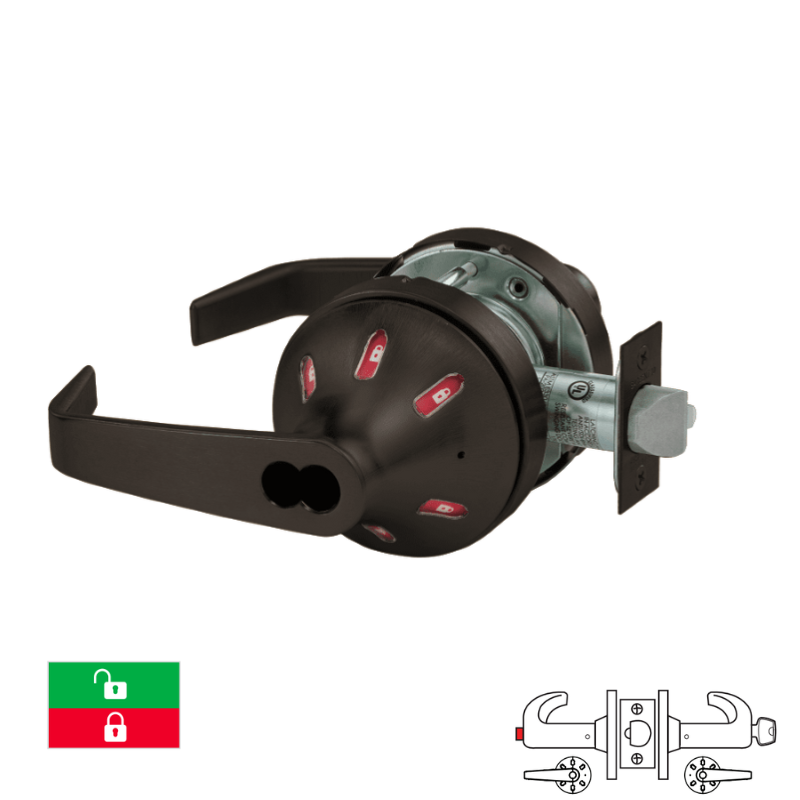

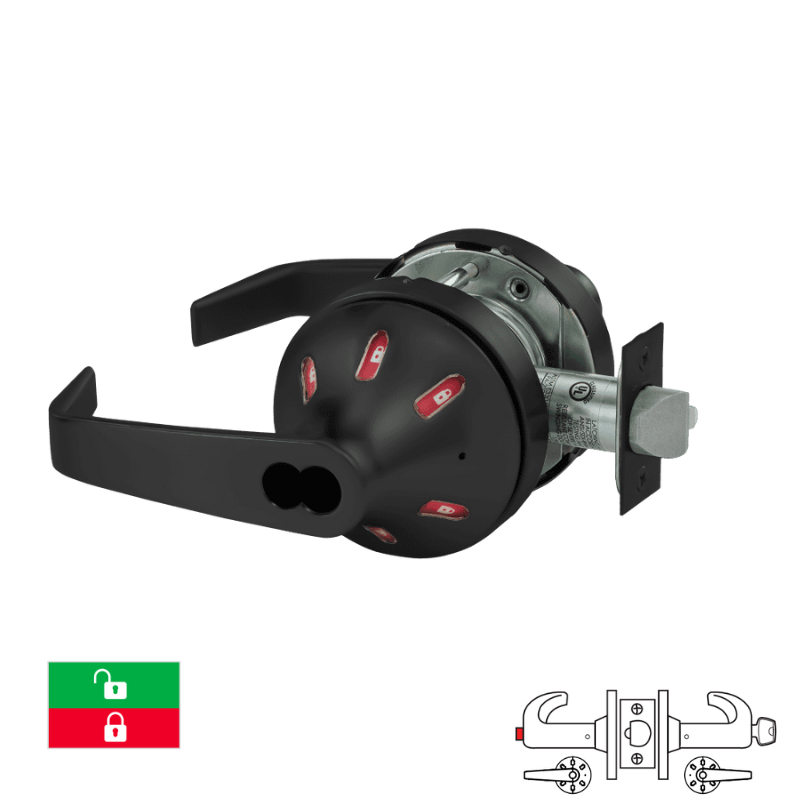

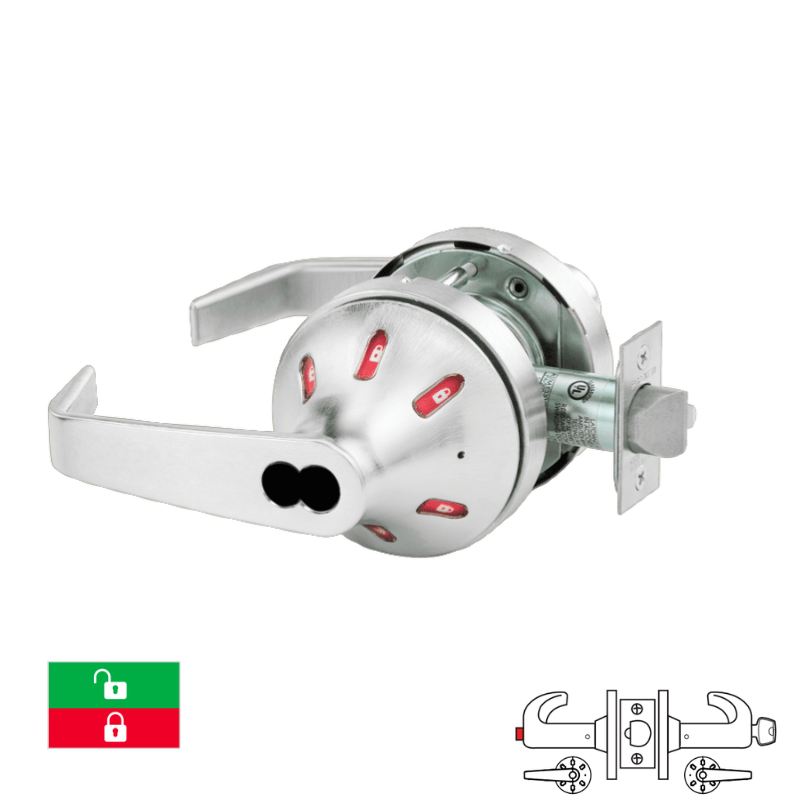

Sargent 70-V33-10XG44-VSLL Service Station Function Cylindrical Lock, 2 3/4 Backset, 4 7/8 Strike, SFIC, Less Core, Grade 1, Visual Indicator Trim Both Sides, Green/Red, "VSL" Rose, "L" Lever Design
The Sargent 70-V33-10XG44-VSLL delivers professional-grade security for service station environments with its Grade 1 cylindrical lock construction. Equipped with synchronized visual indicators on both sides—green and red status displays—this lock provides immediate occupancy recognition. Built to SFIC standards with "L" lever mechanics and "VSL" rose configuration, it accommodates 2 3/4" backset and 4 7/8" strike specifications. Core purchased separately. Purpose-built for demanding commercial access control applications.
Service Station Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Key retracts latch when outside lever is locked
- Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
- Slotted inside button must be manually released
- ANSI/BHMA F82A
Double Indicator:
| Option Code | Outside | Inside | Color |
| V33 | Indicator Trim | Indicator Trim | Green/Red - Icon |
| V66 | Indicator Trim | Indicator Trim | White/Red - Icon |
| V77 | Indicator Trim | Indicator Trim | Green/Red - No Icon |
| V88 | Indicator Trim | Indicator Trim | White/Red - No Icon |
| Manufacturer | Sargent |
| SKU | 70-V33-10XG44-VSLL |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI/BHMA A156.2, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Application | Indicator with Icons |
| Function |
44-Service Station
|
| Lever/Knob Design |
L Lever
|

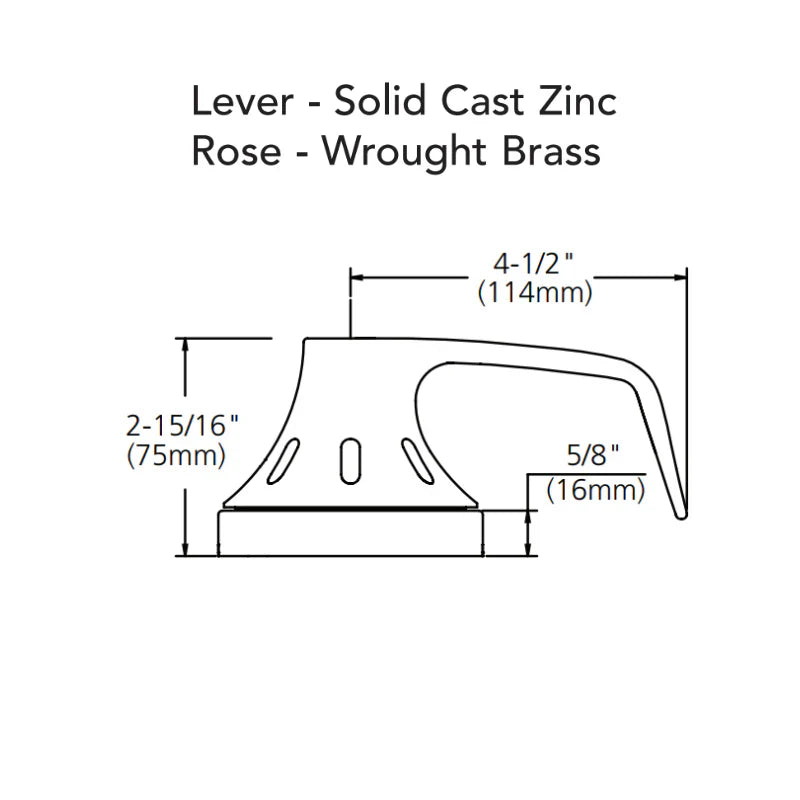

| Rose/Escutcheon Design |
VSLL Rose with L Lever
|
| Cylinder Type |
SFIC Less Core
|
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
