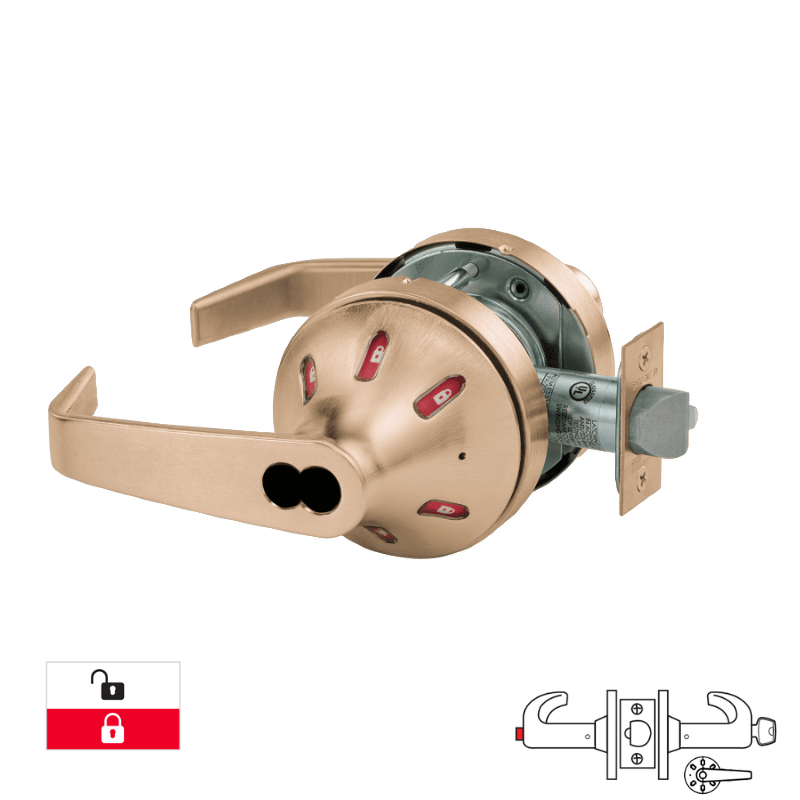

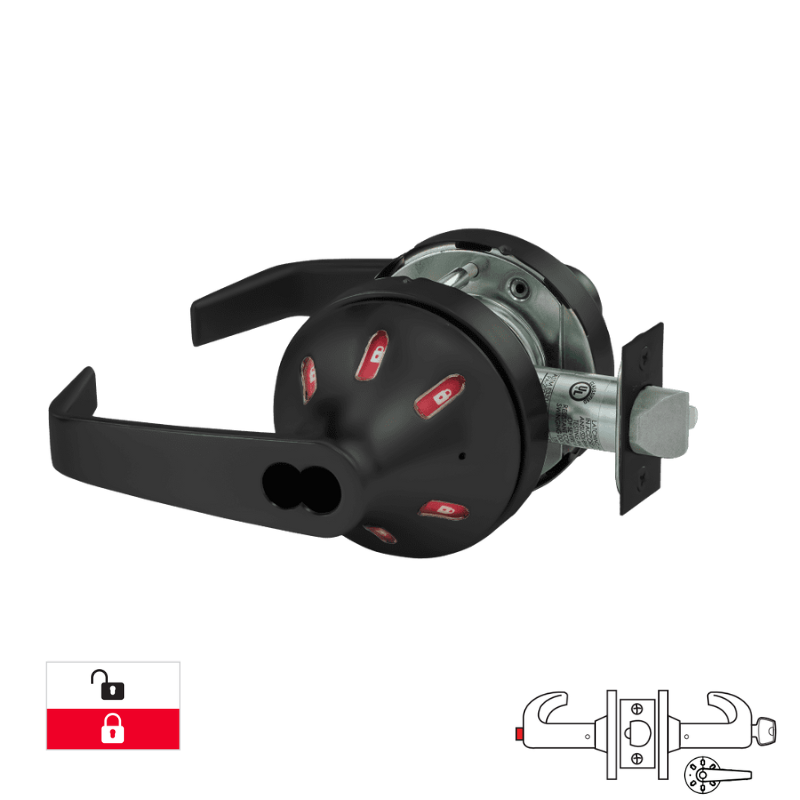

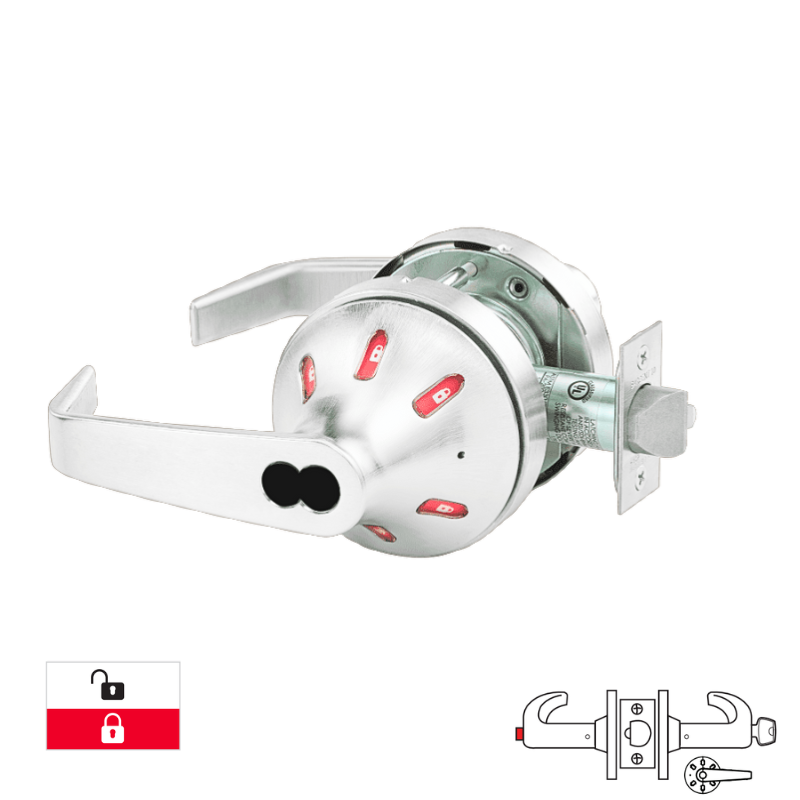

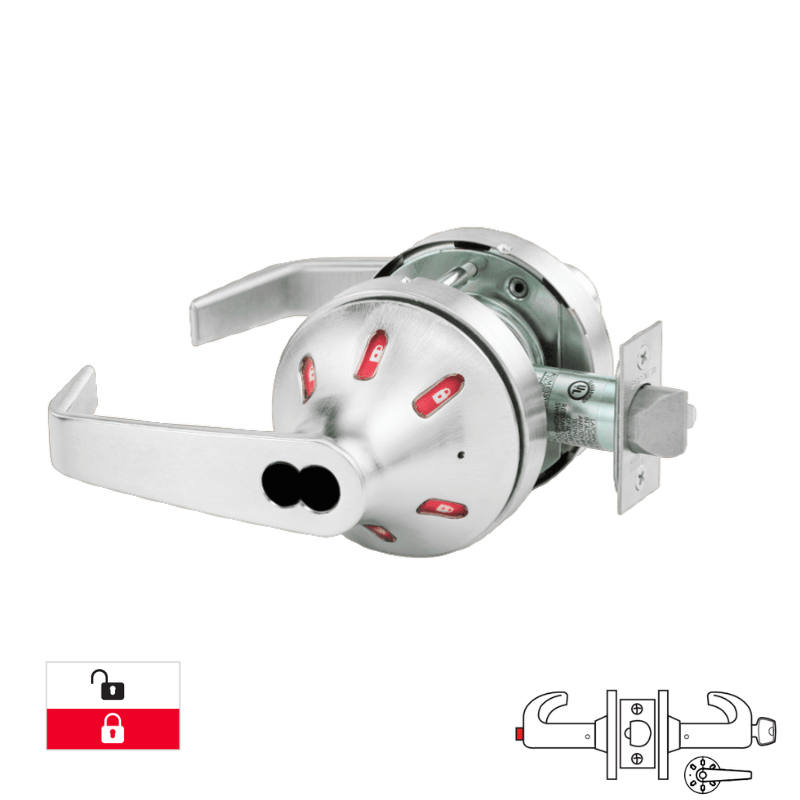

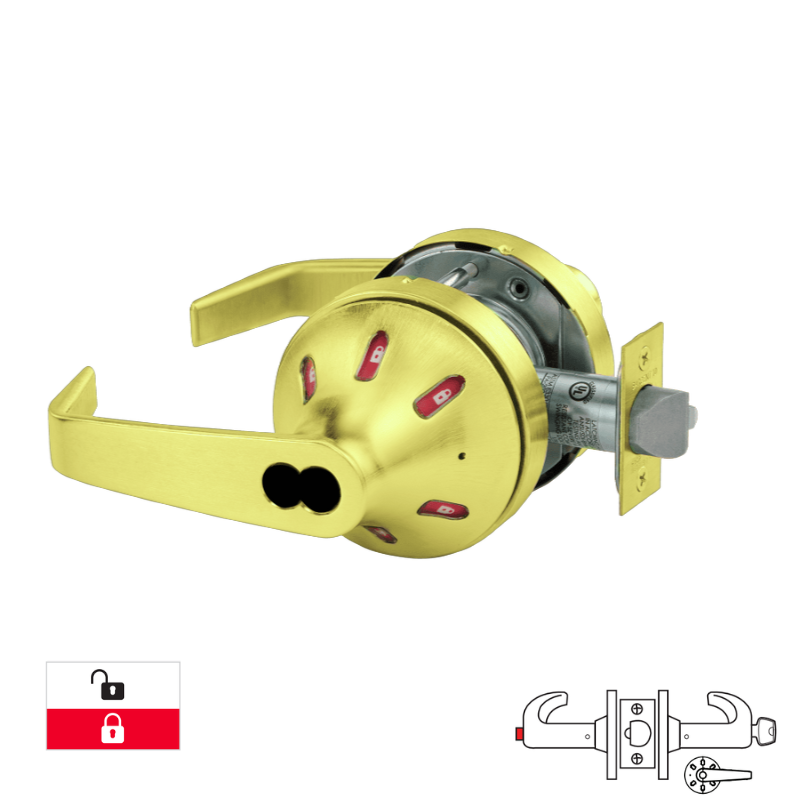

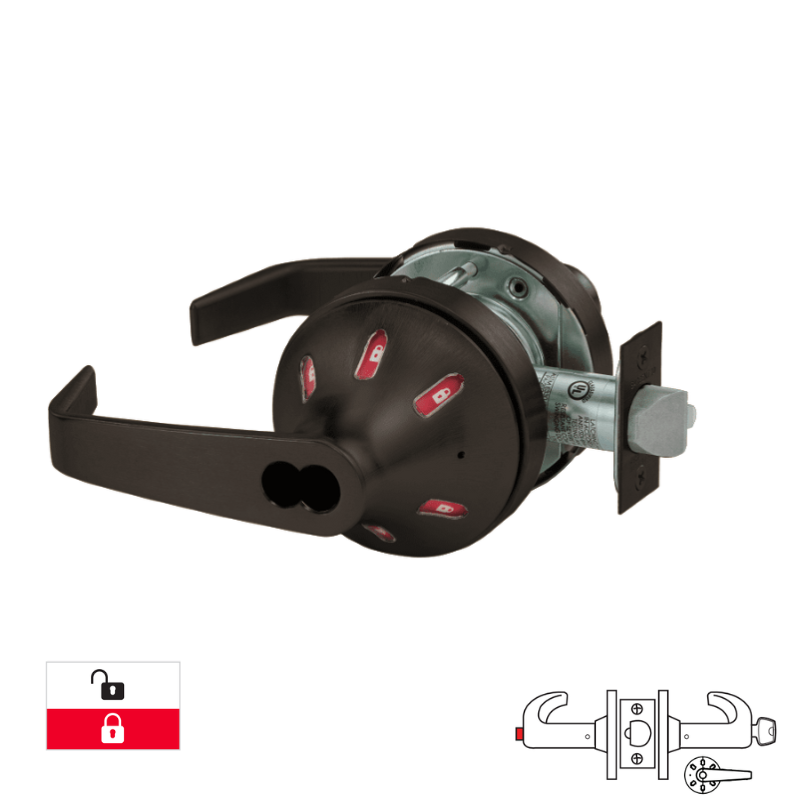

Sargent 70-V60-10XG24-VSLL Entrance or Office Function Cylindrical Lock, Visual Indicator Trim Outside Only, White/Red, SFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, 2 3/4 Backset, 4 7/8 Strike
Sargent 70-V60-10XG24-VSLL cylindrical lock engineered for entrance and office applications with Grade 1 security rating. Features an outside-only visual indicator trim in white/red to display occupancy status at a glance. SFIC-compatible design (core sold separately) accommodates master key systems for multi-door facilities. Includes "L" lever design with "VSL" rose, 2 3/4" backset, and 4 7/8" strike for standard commercial door frames. Ideal for controlling access while maintaining visual communication of room status.
Entrance or Office Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Push button released by key or turning inside lever
- Closing door does not unlock outside lever or release button
- Key in outside lever retracts latch when outside lever is locked and releases inside push button
- ANSI/BHMA F82A
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
