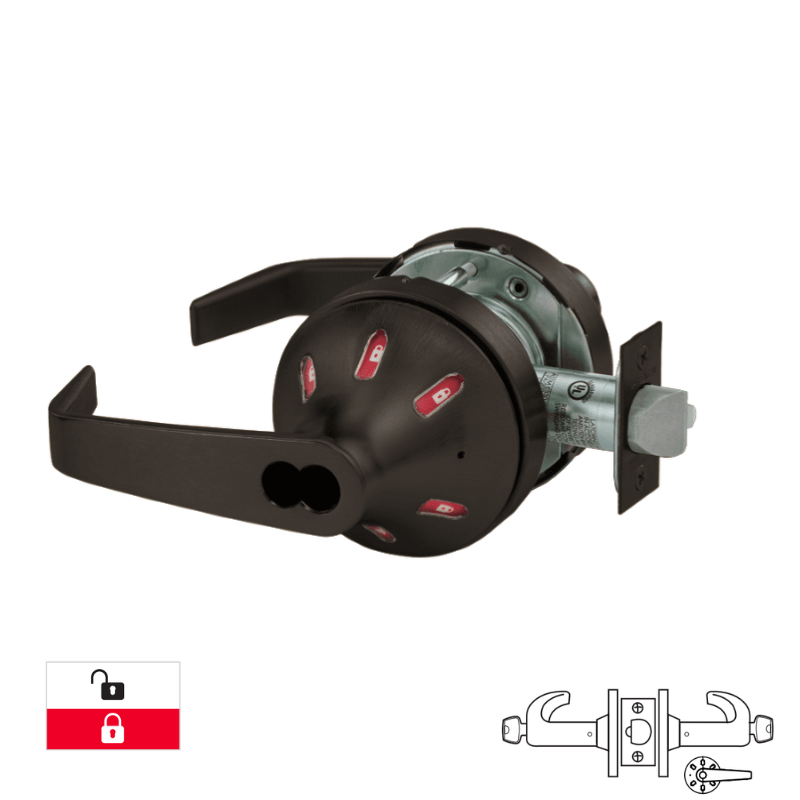

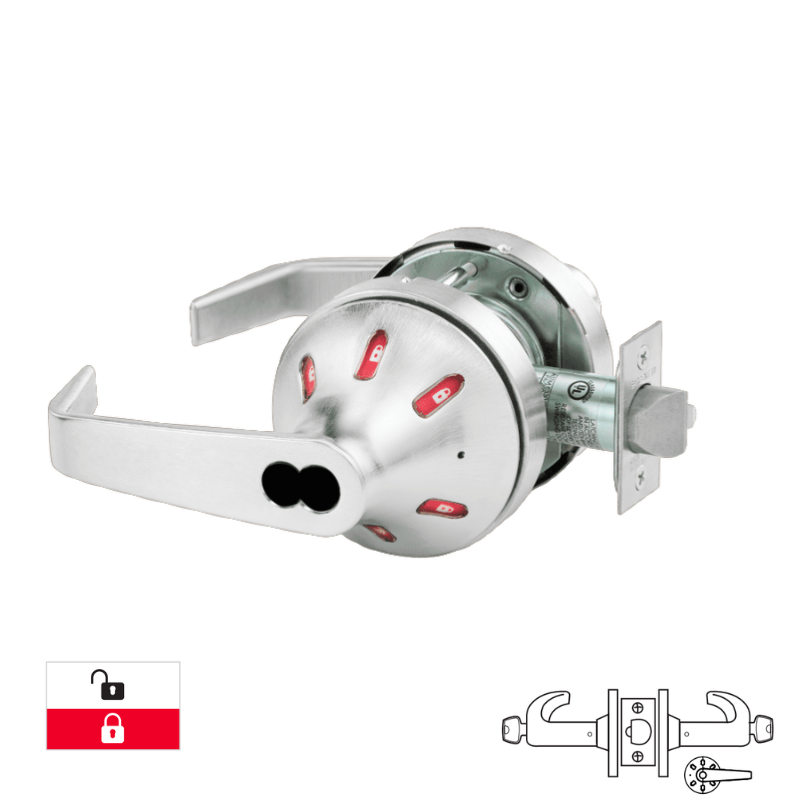

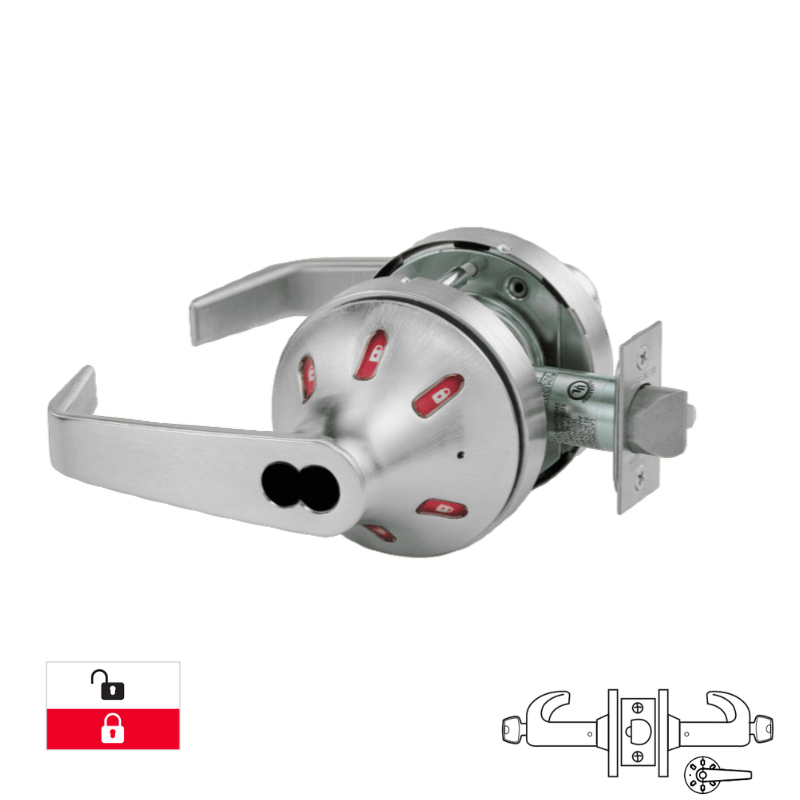

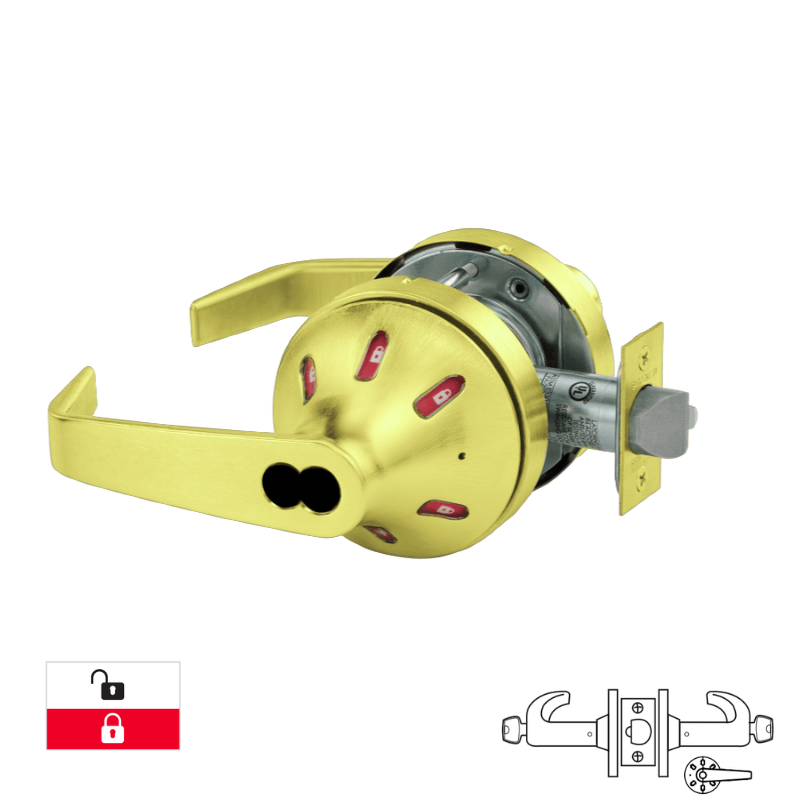

Sargent 70-V60-10XG38-VSLL Classroom Security Intruder Function Cylindrical Lock, White/Red, SFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, Visual Indicator Trim Outside Only, 2 3/4 Backset, 4 7/8 Strike
Sargent 70-V60-10XG38-VSLL Grade 1 cylindrical lock engineered for classroom security with intruder function capability. Features SFIC interchangeable core system, visual indicator trim on exterior only, and "VSL" rose with "L" lever design. White and red finish. 2 3/4" backset, 4 7/8" strike. Core sold separately. Meets demanding institutional security requirements for educational facilities.
Classroom Security Intruder Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by key
- Key in outside lever locks or unlocks outside lever
- Inside lever always operative
- ANSI/BHMA F84
Single Indicator:
| Option Code |
Outside |
Inside |
Color |
| V30 |
Indicator Trim |
Standard Trim |
Green/Red - Icon |
| V60 |
Indicator Trim |
Standard Trim |
White/Red - Icon |
| V03 |
Standard Trim |
Indicator Trim |
Green/Red - Icon |
| V06 |
Standard Trim |
Indicator Trim |
White/Red - Icon |
* If indicators are specified on one side of the door only, the non-indicator side will be supplied with LL trim unless otherwise ordered.
