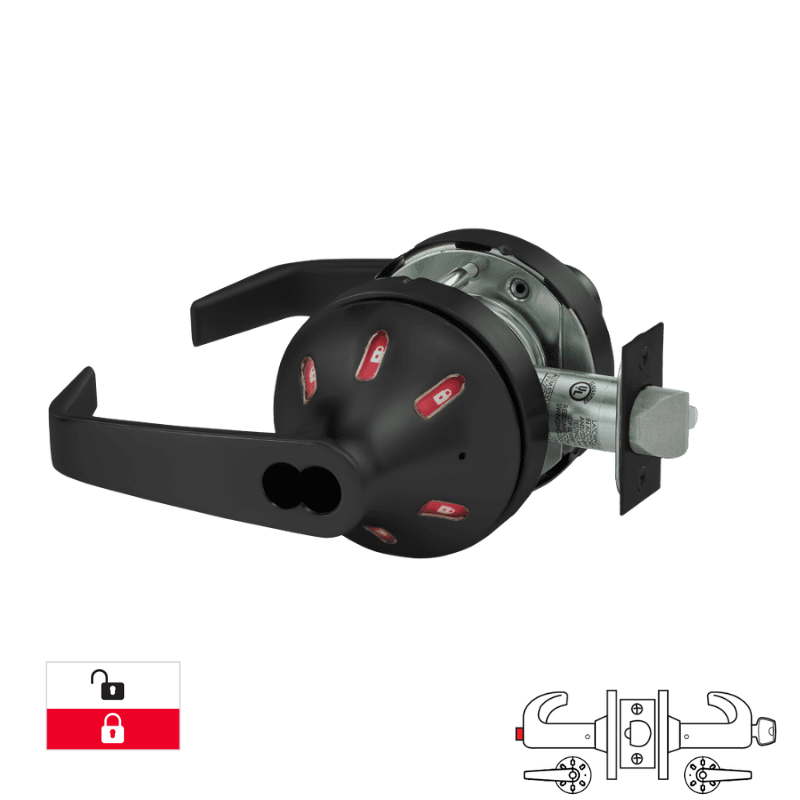

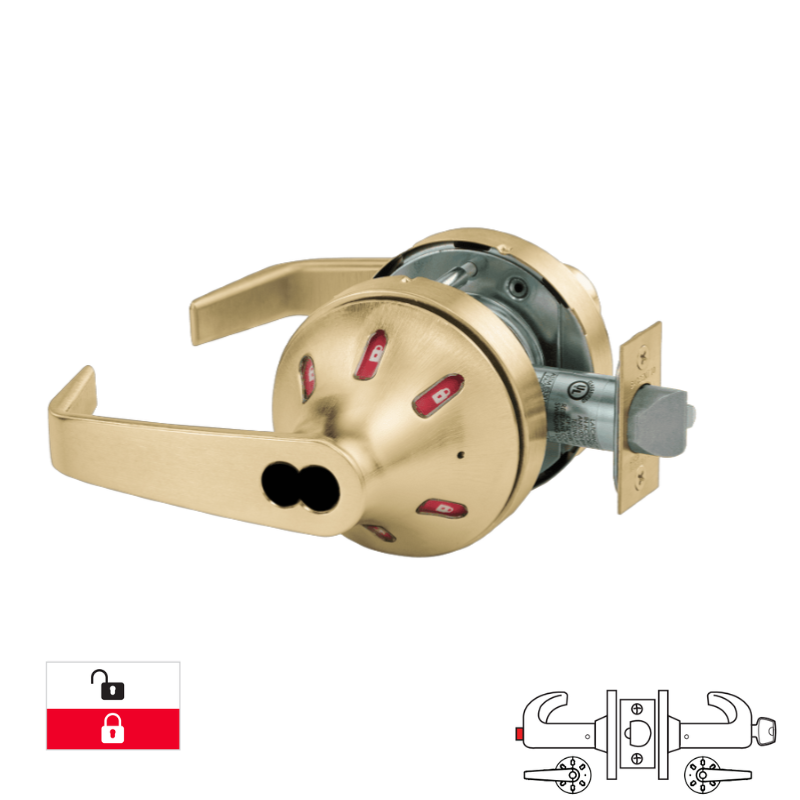

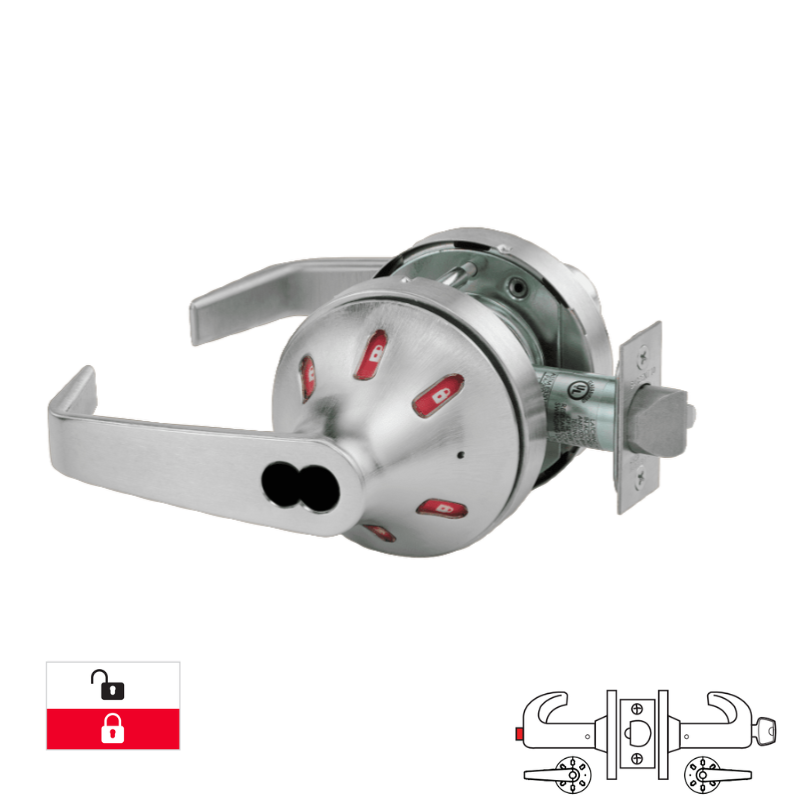

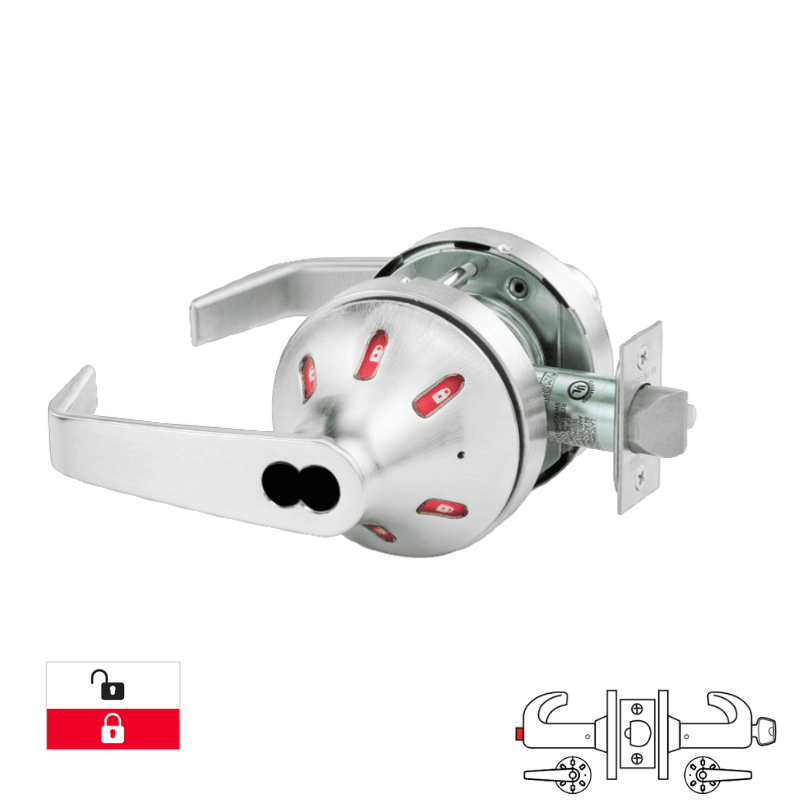

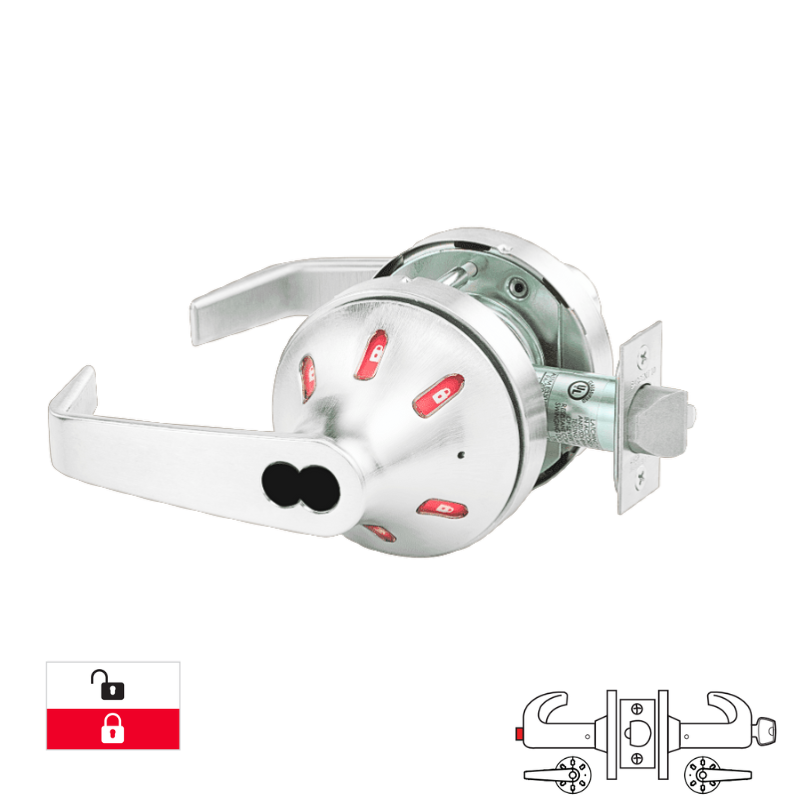

Sargent 70-V66-10XG24-VSLL Entrance or Office Cylindrical Indicator Lock, Both Sides Visual Indicator

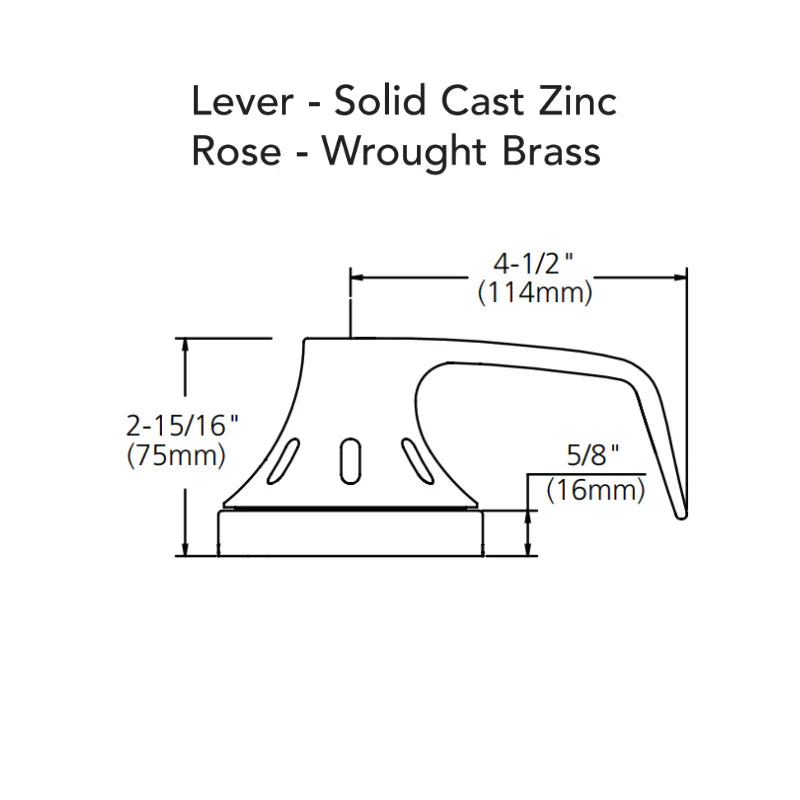

Sargent 70-V66-10XG24-VSLL Entrance or Office Function Cylindrical Lock, Visual Indicator Trim Both Sides, SFIC, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, White/Red, 2 3/4 Backset, 4 7/8 Strike

The Sargent 70-V66-10XG24-VSLL is a Grade 1 cylindrical lock engineered for commercial entrance and office doors, featuring synchronized visual indicators on both sides to communicate room occupancy instantly. Built on SFIC standards with an "L" lever mounted to a "VSL" rose in contrasting white and red finishes, this lock provides immediate visual feedback without requiring door inspection. Configured with a 2 3/4" backset and 4 7/8" strike for standard installations, it ships less core to accommodate your specific keying requirements. Ideal for high-traffic commercial environments demanding reliable security and clear occupancy communication.

Entrance or Office Function:

• Deadlocking latch

• Latch by either lever unless outside lever is locked by push button in inside lever

• Push button released by key or turning inside lever
• Closing door does not unlock outside lever or release button
• Key in outside lever retracts latch when outside lever is locked and releases inside push button
• ANSI/BHMA F82A

Double Indicator:
