Product Cut Sheet
Description
Active

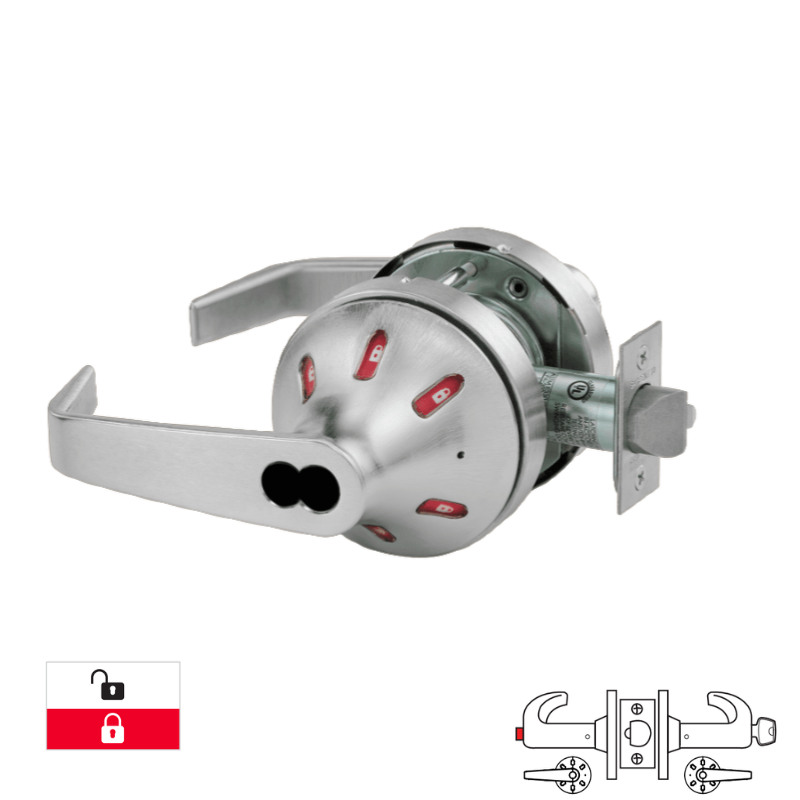

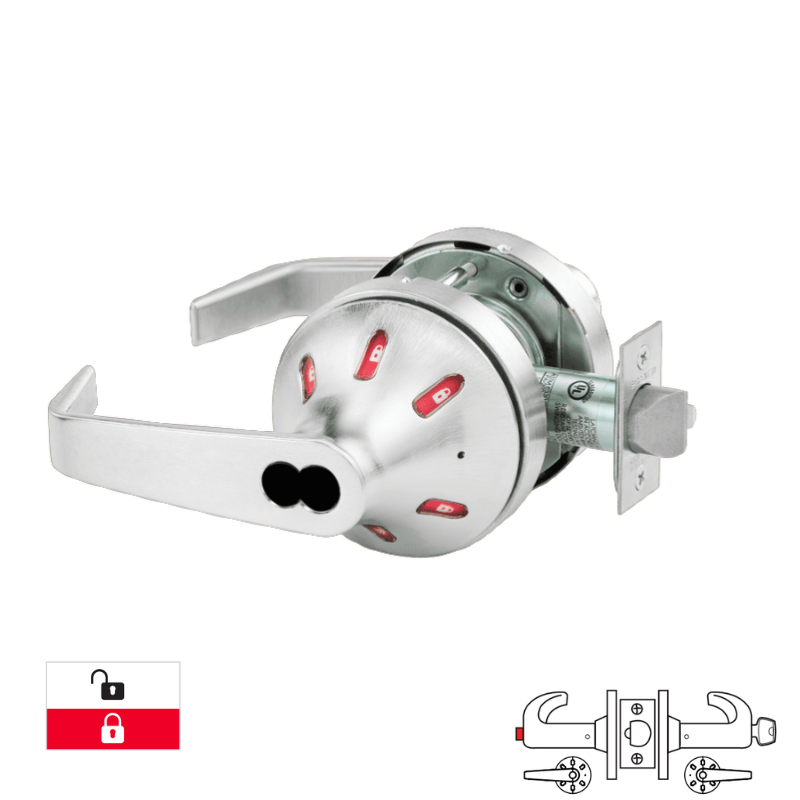

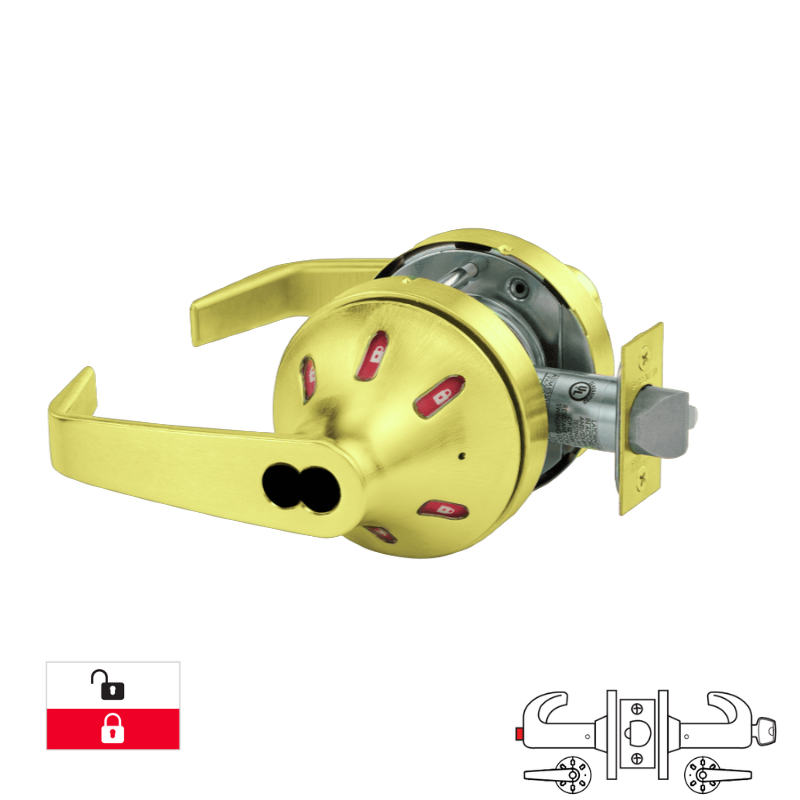

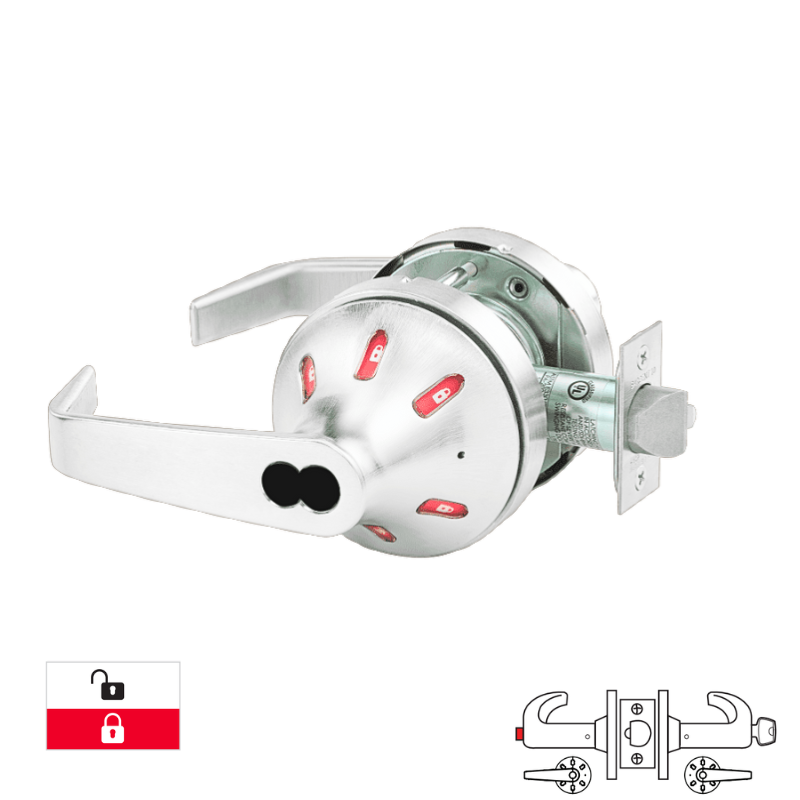

Sargent 70-V66-10XG44-VSLL Service Station Function Cylindrical Lock, Visual Indicator Trim Both Sides, White/Red, Less Core, Grade 1, "VSL" Rose, "L" Lever Design, 2 3/4 Backset, 4 7/8 Strike, SFIC
Service Station Function:
- Deadlocking latch
- Latch by either lever unless outside lever is locked by push button in inside lever
- Key retracts latch when outside lever is locked
- Push button released by turning inside lever, closing door, or by key in outside lever unless push button is fixed in locked position by turning coin slot in inside lever
- Slotted inside button must be manually released
- ANSI/BHMA F82A
Double Indicator:
| Option Code | Outside | Inside | Color |
| V33 | Indicator Trim | Indicator Trim | Green/Red - Icon |
| V66 | Indicator Trim | Indicator Trim | White/Red - Icon |
| V77 | Indicator Trim | Indicator Trim | Green/Red - No Icon |
| V88 | Indicator Trim | Indicator Trim | White/Red - No Icon |
| Manufacturer | Sargent |
| SKU | 70-V66-10XG44-VSLL |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | United States |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI/BHMA A156.2, Series 4000, Grade 1, UL Listed |
| Limited Warranty | 10 Year Limited Warranty |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| Application | Indicator with Icons |
| Function |
44-Service Station
|
| Lever/Knob Design |
L Lever
|

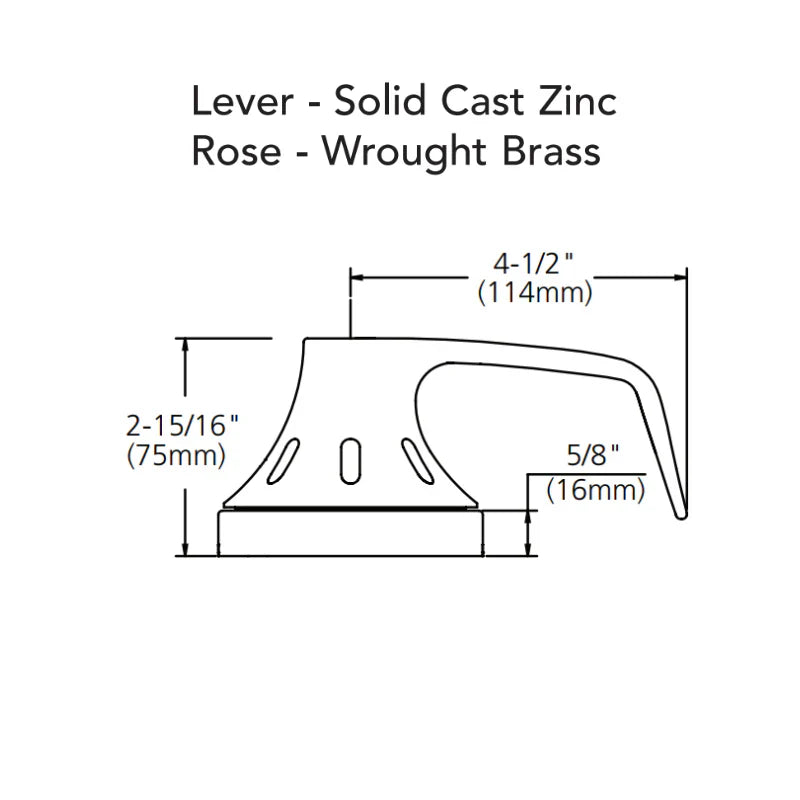

| Rose/Escutcheon Design |
VSLL Rose with L Lever
|
| Cylinder Type |
SFIC Less Core
|
| Handing | Non-handed |
| Door Thickness | 1-3/4" to 2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
