Product Cut Sheet
Description
Active

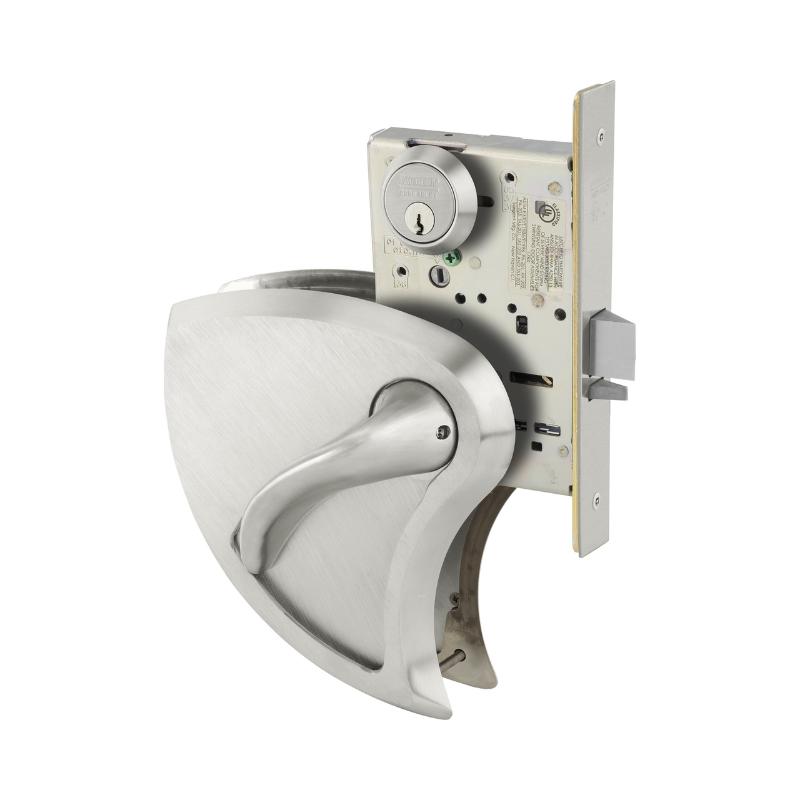

Sargent 8205-BHW-US32D-KD Behavioral Health Office or Entry Function Mortise Lock, Key Retracts Latch, BHW Trim, STD LA Keyway Keyed Different, Grade 1, handing must be specified, 630 Satin Stainless Steel
The Sargent 8205-BHW-US32D-KD Behavioral Health Mortise Lock is designed for office or entry use, featuring a key that retracts the latch. It includes BHW trim, a standard LA keyway keyed different, and Grade 1 certification. The lock, handing must be specified, and finished in satin stainless steel (630).
- Office or Entry Function:
- Key outside retracts latchbolt, also locks & unlocks outside trim
- Trim inside always retracts latchbolt, trim outside remains locked
- Thumbturn inside locks & unlocks outside trim
- Auxiliary deadlatch
- Key outside retracts latchbolt, also locks & unlocks outside trim
- Uses standard mortise prep
- STD LA Keyway Keyed Different
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Liature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
05 Office or Entry Function
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
Conventional Cylinder
|
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Left Hand, Left Hand Reverse, Right Hand, Right Hand Reverse |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
