Product Cut Sheet
Description
Active

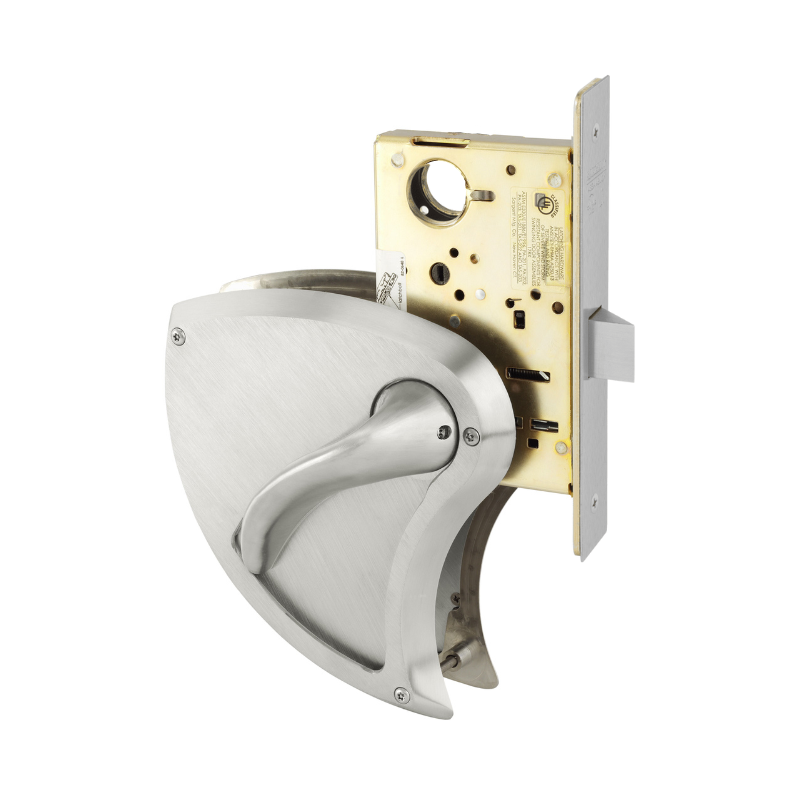

Sargent 8215-BHW-US32D Behavioral Health Passage or Closet Mortise Lock, BHW Trim, Non-Keyed, Grade 1, handing must be specified, 630 Satin Stainless Steel
Sargent 8215-BHW-US32D Behavioral Health Mortise Lock, suitable for passage or closet use, features BHW trim and a non-keyed design. This Grade 1 lock, handing must be specified, and finished in satin stainless steel (US32D).
- Passage or Closet Function:
- Trim from either side retracts latchbolt at all times
- Uses standard mortise prep
- Less Cylinder
- ANSI/BHMA Grade 1
- Tapered surfaces on all components
- Handed
- ADA Compliant
- 6 Lobe head security screws (Torx® type)
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| Application | Ligature Resistant |
| Base Material | Stainless Steel |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
15 Passage or Closet Function
|
| Lever/Knob Design |
BHW Lever
|
| Cylinder Type |
Non-Keyed
|
| Handing | Left Hand, Left Hand Reverse, Right Hand, Right Hand Reverse |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Combination |
| Product Type | Mortise Lock |
