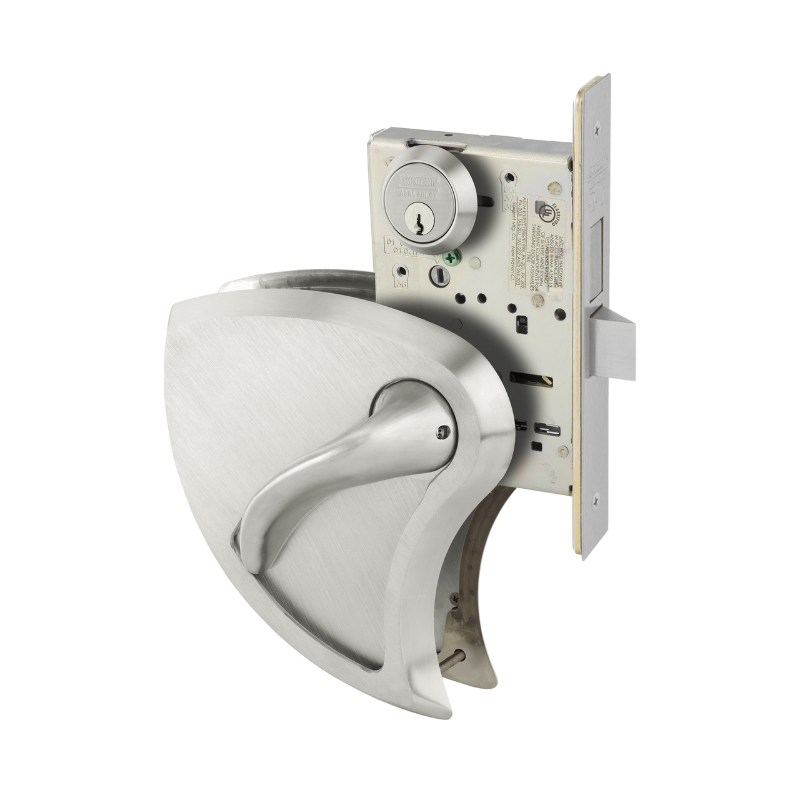

Sargent 8225-BHW-US32D-KD Behavioral Health Mortise Lock, Dormitory or Exit Function, BHW Trim, LA Keyway, Satin Stainless Steel

Sargent 8225-BHW-US32D-KD Behavioral Health Dormitory or Exit Function Mortise Lock, BHW Trim, STD LA Keyway Keyed Different, Grade 1, Field Reversible, 630 Satin Stainless Steel

The Sargent 8225-BHW-US32D-KD is a Grade 1 Behavioral Health mortise lock designed for dormitory or exit applications. Featuring BHW trim and a standard LA keyway with keyed different functionality, this lock offers field reversibility for versatile installation. It is finished in satin stainless steel (630) for durability and a professional appearance.

• Dormitory or Exit Function:
  • Key outside or thumbturn inside retracts and projects deadbolt

  • Trim from either side retracts latchbolt, when the deadbolt is in the retracted position

  • Trim outside is locked, when the deadbolt is projected

  • When deadbolt is projected, Trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
• Uses standard mortise prep

• STD LA Keyway Keyed Different
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
