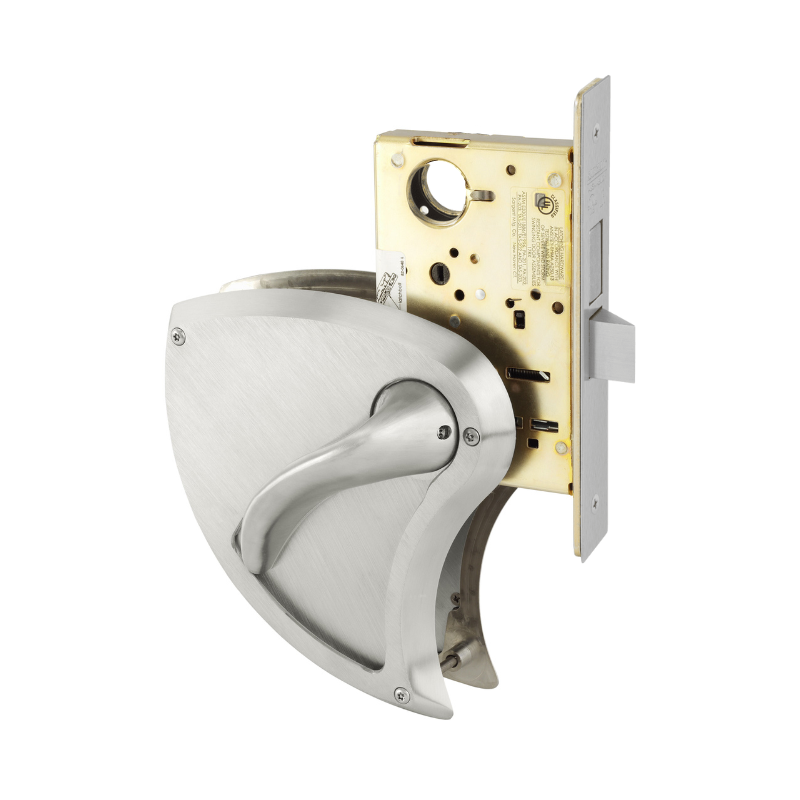

Sargent 8225-BHW-US32D-LC Behavioral Health Mortise Lock, Dormitory or Exit Function, BHW Trim, Less Cylinder, Satin Stainless Steel

Sargent 8225-BHW-US32D-LC Behavioral Health Dormitory Or Exit Function Mortise Lock, BHW Trim, Less Cylinder, Grade 1, Field Reversible, 630 Satin Stainless Steel

Sargent 8225-BHW-US32D Behavioral Health Mortise Lock designed for dormitory or exit functions. Features BHW trim and is supplied without a cylinder. This Grade 1 lock is field reversible and finished in 630 satin stainless steel.

• Dormitory or Exit Function:
  • Key outside or thumbturn inside retracts and projects deadbolt

  • Trim from either side retracts latchbolt, when the deadbolt is in the retracted position

  • Trim outside is locked, when the deadbolt is projected

  • When deadbolt is projected, Trim inside retracts latchbolt and deadbolt simultaneously, unlocking outside trim
• Uses standard mortise prep

• Less Cylinder
• ANSI/BHMA Grade 1

• Tapered surfaces on all components

• Handed

• ADA Compliant

• 6 Lobe head security screws (Torx® type)
