Product Cut Sheet
Description
Active

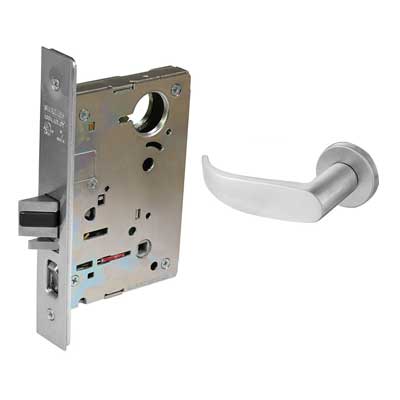

The Sargent 8225-LNP-26D Mortise Lock features a Dormitory, or Exit Function, and comes LA Keyway Standard with an LN Rose, a P Lever, is Field Reversible and in a Satin Chrome Finish.
ANSI/BHMA A156.13 Series 1000 Grade 1 standards, making it the strongest and most durable mortise lock in the industry.
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 10 Years |
| Fire Rated | 2 Hours {B} |
| Function |
25 Dormitory
|
| ANSI Function |
F13 - Dormitory
|
| Lever/Knob Design |
P - Lever
|
| Rose/Escutcheon Design |
LN - Rose
|
| Cylinder Type |
Conventional Cylinder
|
| Num Pins | 6 |
| Std. Keyway | LA |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4 In. |
| Std. Latch Type | Combination Latch and Bolt |
| Std. Latch Backset Dim | 2-3/4 In. |
| Lock Face Size | 8 In. x 1-1/4 In. |
| Bolt Projection | 3/4 In. Latch, 1 in. Deadbolt |
| Std. Strike Number | 82-0110 |
| Std. Strike Type | ASA Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Combination |
| Product Type | Mortise Lock |
